Seat Belt Reminder Lamp: Testing and Inspection

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: INSPECTION

1. INSPECT FRONT PASSENGER SEAT BELT WARNING LIGHT

(a) Check the operation.

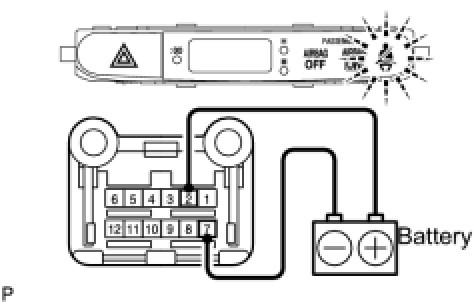

(1) Apply battery voltage to the terminals and check that the indicator illuminates.

OK:





(2) If the result is not as specified, replace the front passenger seat belt warning light.
