Reassembly

METER: COMBINATION METER: REASSEMBLY

1. INSTALL CLIP





(a) Install the 2 clips.

2. INSTALL NO. 3 METER LENS





(a) Align the protrusion of the combination meter with the cutout of the 2 No. 3 meter lenses and install the 2 No. 3 meter lenses.

3. INSTALL NO. 2 METER LENS

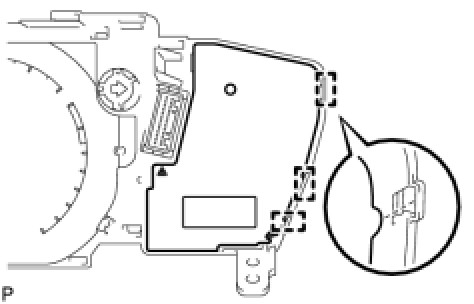

(a) Engage the 3 guides and install the No. 2 meter lens.

4. INSTALL NO. 1 METER LENS

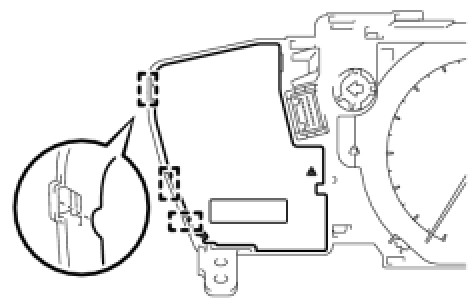

(a) Engage the 3 guides and install the No. 1 meter lens.

5. INSTALL NO. 1 COMBINATION METER COVER

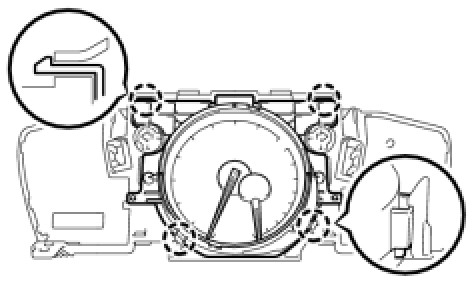

(a) Engage the 4 claws and install the No. 1 combination meter cover.

6. INSTALL COMBINATION METER GLASS

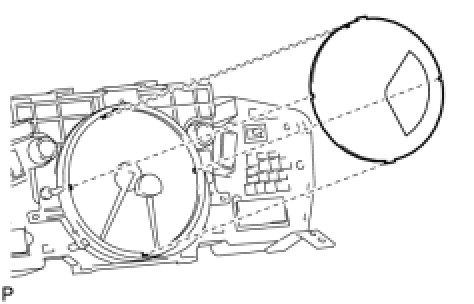

(a) Align the protrusion of the No. 2 combination meter cover with the cutout of the combination meter glass and install the combination meter glass.

7. INSTALL NO. 2 COMBINATION METER COVER

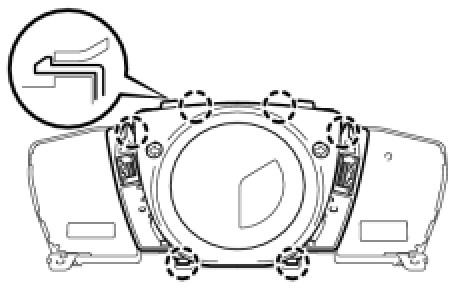

(a) Engage the 6 claws and install the No. 2 combination meter cover.
