Meter / Gauge System












METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM






METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

1. METER GAUGE AND WARNING INDICATOR

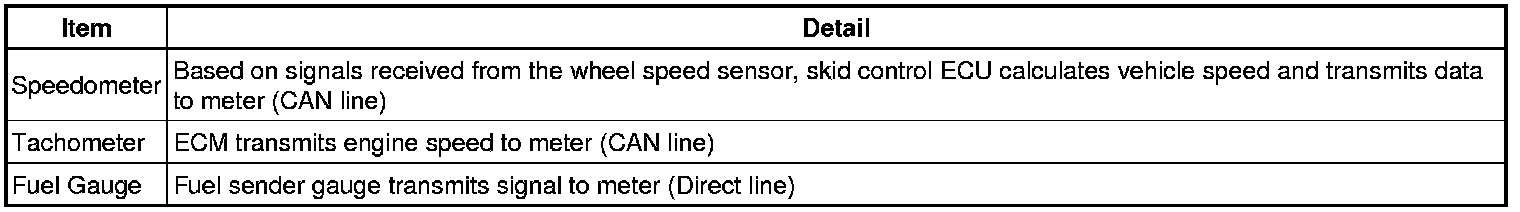

Meter/Gauge:

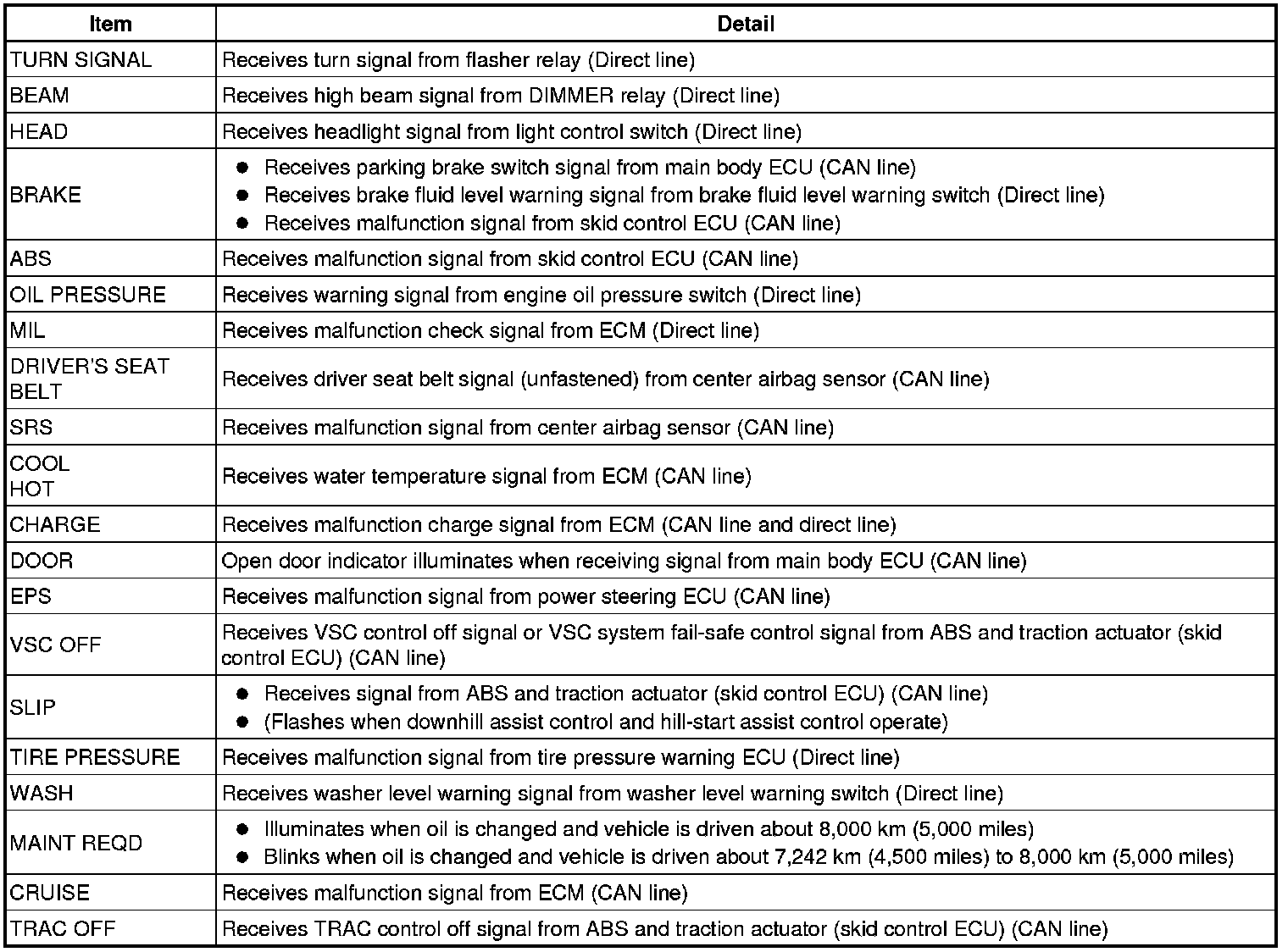

Warning/Indicator:

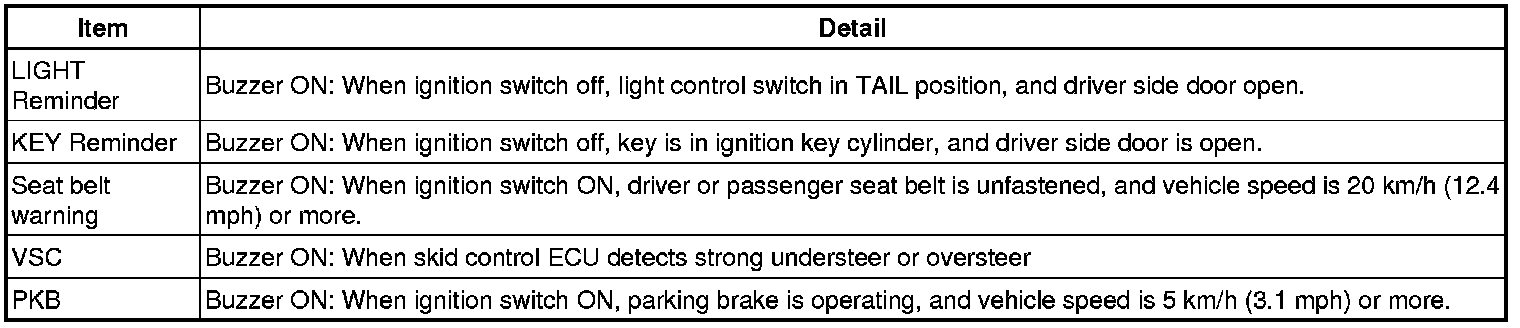

Buzzer:
