Key Reminder Warning System

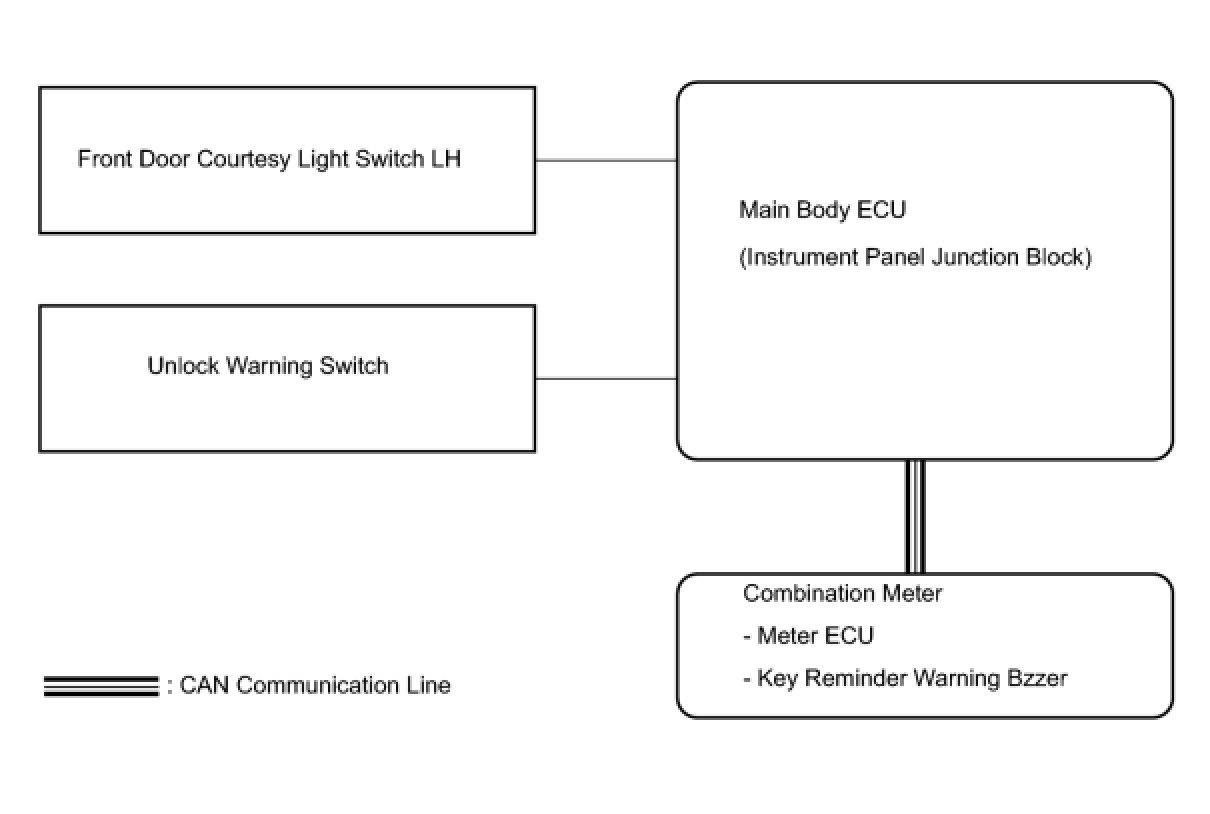

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DIAGRAM

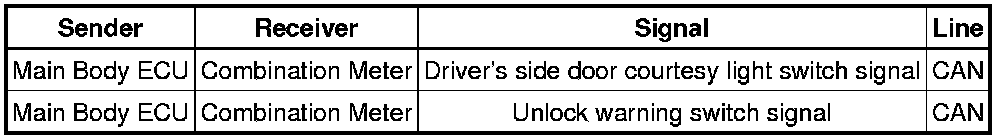

Communication table::

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DESCRIPTION

1. KEY REMINDER WARNING SYSTEM DESCRIPTION

(a) When the driver side door is opened with the ignition key in the ACC or LOCK position, this system causes a buzzer to sound in order to warn the driver that the ignition key has not been removed.

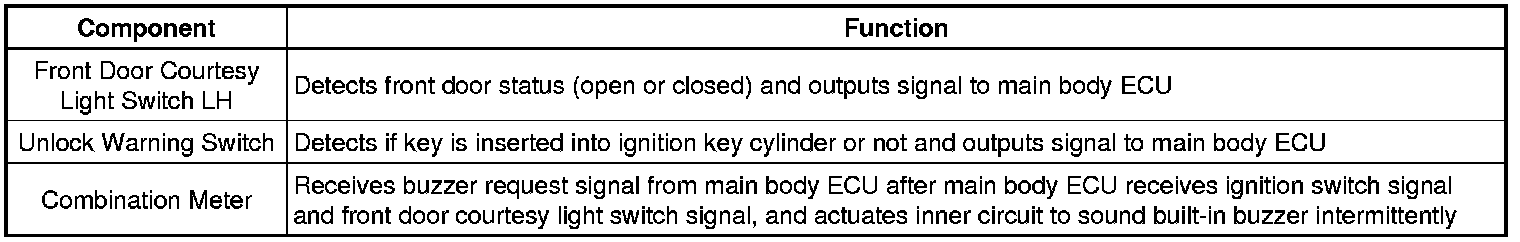

2. FUNCTION OF MAIN COMPONENT
