Torque Specifications





SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS





AIR CONDITIONING UNIT:

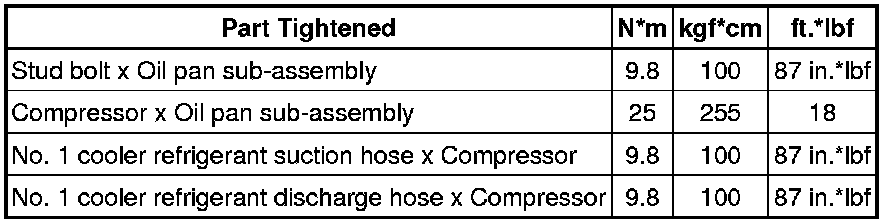

COMPRESSOR:

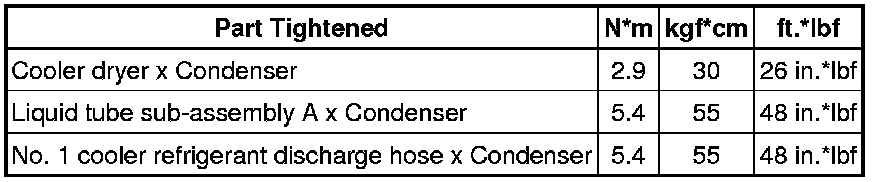

CONDENSER:





AIR CONDITIONING PRESSURE SENSOR:
