Auxiliary Heater Element Relay: Testing and Inspection

AIR CONDITIONING: PTC HEATER RELAY: ON-VEHICLE INSPECTION

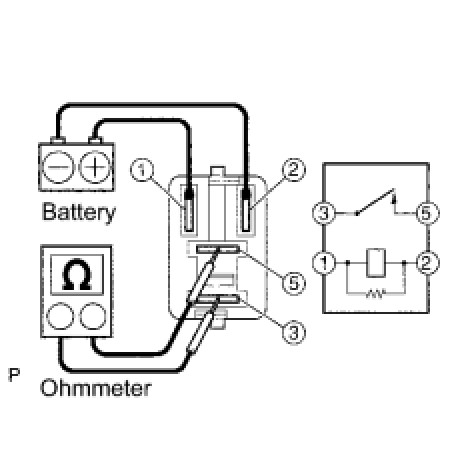

1. INSPECT PTC HEATER RELAY





(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(2) If the result is not as specified, replace the relay.
