Reassembly

AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

1. INSTALL HEATER CONTROL BASE SUB-ASSEMBLY

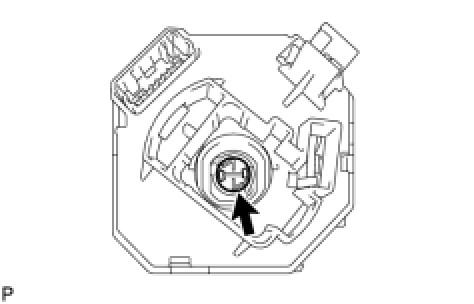

(a) Install the bulb.

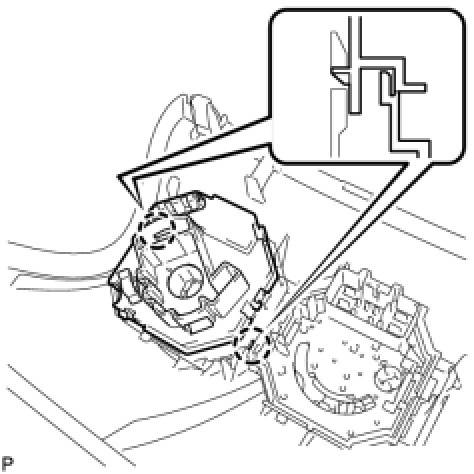

(b) Engage the 2 claws and install the heater control base.





2. INSTALL HEATER CONTROL SUB-ASSEMBLY

(a) Install the bulb.

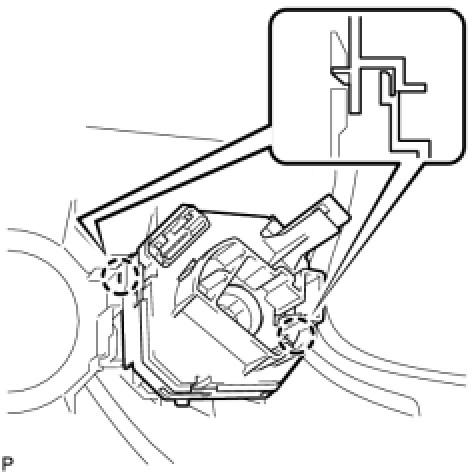

(b) Engage the 2 claws and install the heater control.





3. INSTALL NO. 2 HEATER CONTROL KNOB

(a) Install the bulb.

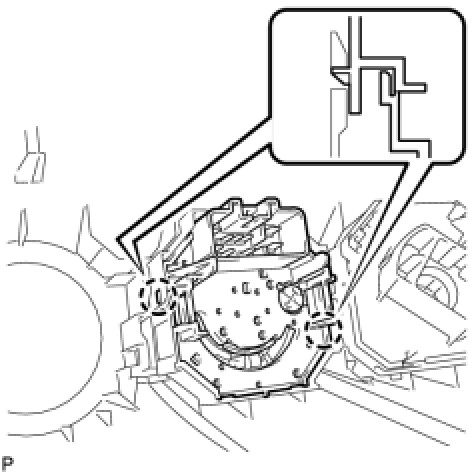

(b) Engage the 2 claws and install the heater control knob.
