Removal
2ZR-FE COOLING: WATER PUMP: REMOVAL
1. DISCHARGE FUEL SYSTEM PRESSURE
Precaution
2. REMOVE BATTERY Removal
3. REMOVE BATTERY TRAY
4. REMOVE FRONT WHEELS
5. REMOVE ENGINE UNDER COVER LH
6. REMOVE ENGINE UNDER COVER RH
7. DRAIN ENGINE COOLANT Service and Repair
8. REMOVE FRONT WIPER ARM HEAD CAP Removal
9. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
10. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
11. REMOVE HOOD TO COWL TOP SEAL Removal
12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
13. REMOVE COWL TOP VENTILATOR LOUVER LH Removal
14. REMOVE FRONT WIPER MOTOR AND LINK Removal
15. REMOVE FRONT AIR SHUTTER SEAL RH Removal
16. REMOVE OUTER COWL TOP PANEL Removal
17. REMOVE AIR CLEANER ASSEMBLY Removal
18. REMOVE AIR CLEANER BRACKET Removal
19. REMOVE BATTERY CARRIER Removal
20. REMOVE NO. 2 CYLINDER HEAD COVER Removal
21. REMOVE FAN & GENERATOR V BELT Removal
22. REMOVE NO. 2 RADIATOR HOSE Removal
23. DISCONNECT NO. 1 RADIATOR HOSE Removal
24. REMOVE FRONT BUMPER COVER Removal
25. DISCONNECT NO. 1 OIL COOLER OUTLET HOSE (for Automatic Transaxle) Removal
26. DISCONNECT NO. 2 OIL COOLER INLET HOSE (for Automatic Transaxle) Removal
27. REMOVE HOOD LOCK ASSEMBLY Removal
28. REMOVE NO. 1 COOLER COVER Removal
29. REMOVE UPPER RADIATOR SUPPORT ABSORBER Disassembly
30. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY Removal
31. REMOVE RADIATOR ASSEMBLY Removal
32. SEPARATE WITH PULLEY COMPRESSOR ASSEMBLY Removal
33. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY (for Automatic Transaxle) Removal
34. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY (for Manual Transaxle) Removal
35. SEPARATE UNION TO CHECK VALVE HOSE Removal
36. SEPARATE NO. 1 FUEL VAPOR FEED HOSE Removal
37. DISCONNECT ENGINE WIRE Removal
38. DISCONNECT HEATER WATER HOSE OUTLET A Removal
39. DISCONNECT HEATER WATER HOSE INLET A Removal
40. DISCONNECT FUEL TUBE SUB-ASSEMBLY Removal
41. SEPARATE CLUTCH RELEASE CYLINDER ASSEMBLY (for Manual Transaxle) Removal
42. REMOVE COLUMN HOLE COVER SILENCER SHEET Removal
43. SEPARATE STEERING SLIDING YOKE SUB-ASSEMBLY Removal
44. SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY Removal
45. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal
46. REMOVE CONSOLE PANEL UPPER Removal
47. REMOVE CONSOLE BOX COVER REAR Removal
48. REMOVE CONSOLE BOX CARPET Removal
49. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY Removal
50. REMOVE FRONT CONSOLE BOX Removal
51. REMOVE FRONT FLOOR BRACE CENTER Removal
52. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
53. REMOVE FRONT AXLE SHAFT LH NUT Removal
54. REMOVE FRONT AXLE SHAFT RH NUT
HINT
The removal procedure for the RH side is the same as that for the LH side.
55. SEPARATE SPEED SENSOR FRONT LH Removal
56. SEPARATE SPEED SENSOR FRONT RH
HINT
The removal procedure for the RH side is the same as that for the LH side.
57. SEPARATE TIE ROD END SUB-ASSEMBLY LH Removal
58. SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT
The removal procedure for the RH side is the same as that for the LH side.
59. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal
60. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT
The removal procedure for the RH side is the same as that for the LH side.
61. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH Removal
62. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH
HINT
The removal procedure for the RH side is the same as that for the LH side.
63. SEPARATE FRONT AXLE ASSEMBLY LH Removal
64. SEPARATE FRONT AXLE ASSEMBLY RH
HINT
The removal procedure for the RH side is the same as that for the LH side.
65. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE Removal
66. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY Removal
67. REMOVE WATER PUMP ASSEMBLY

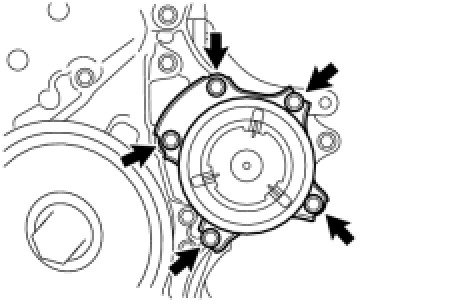

(a) Remove the 5 bolts and remove the water pump assembly.
(b) Remove the water pump gasket from the timing chain cover.
