Relay Box

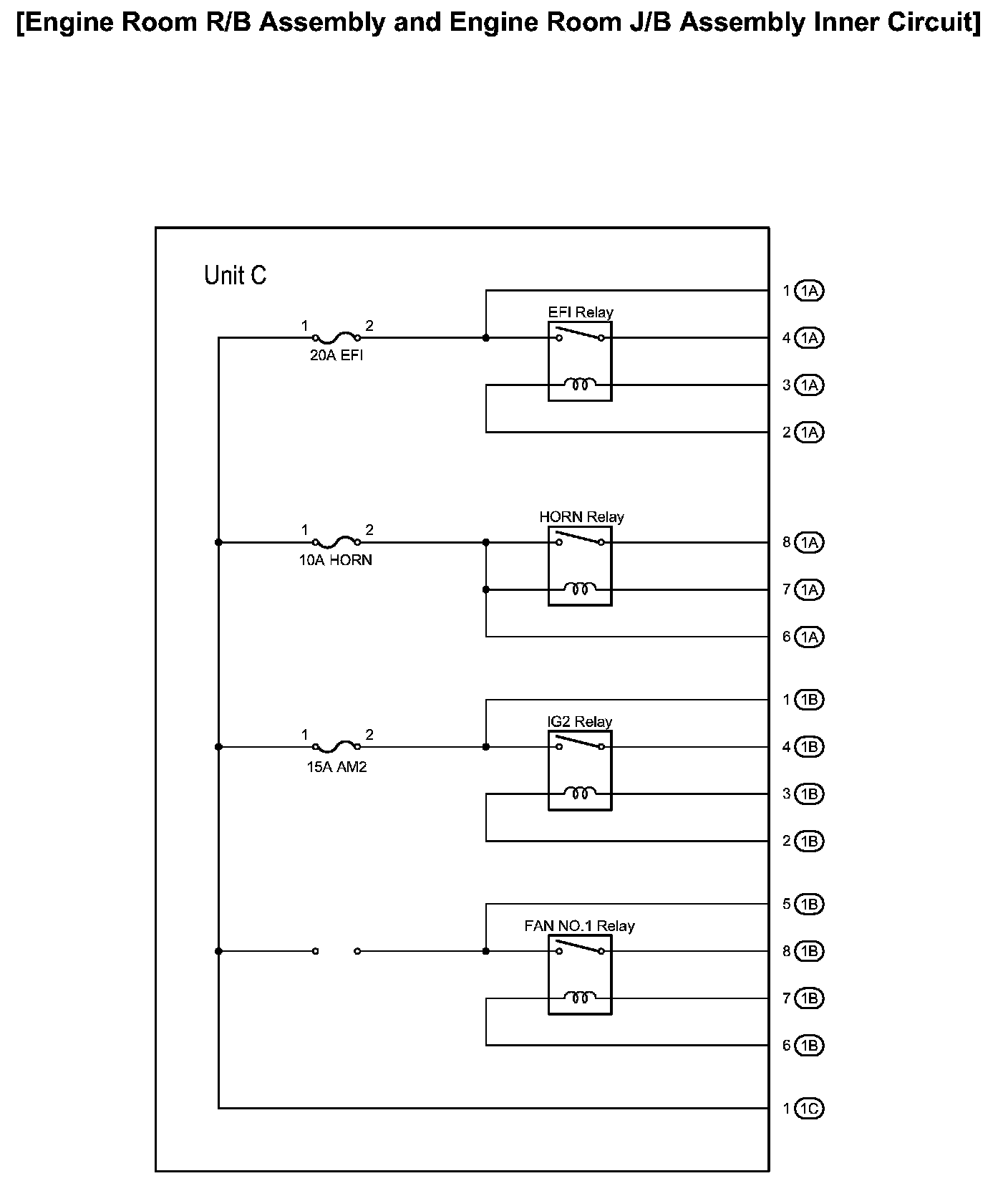

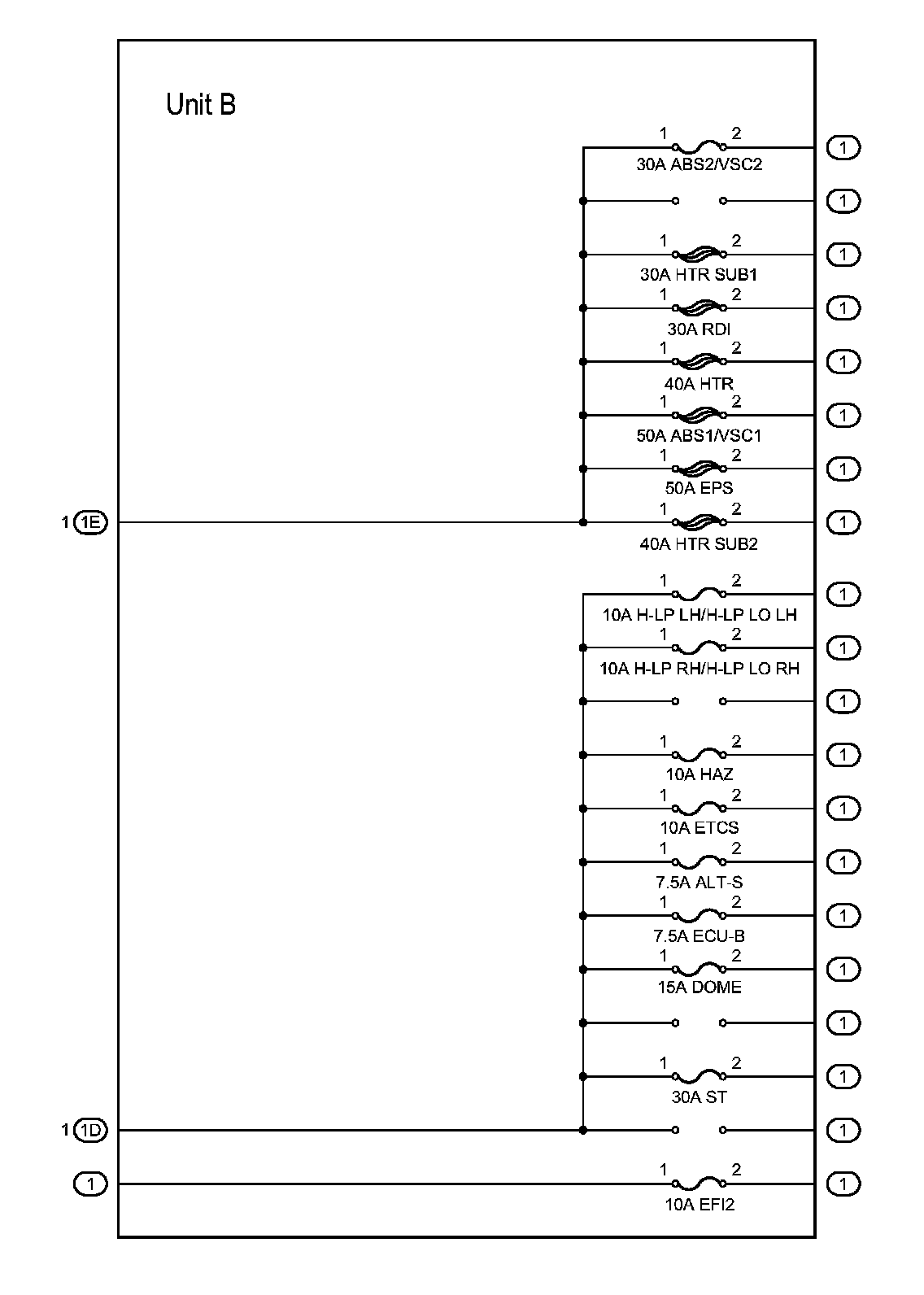

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

Engine Room R/B Assembly And Engine Room J/B Assembly Inner Circuit:

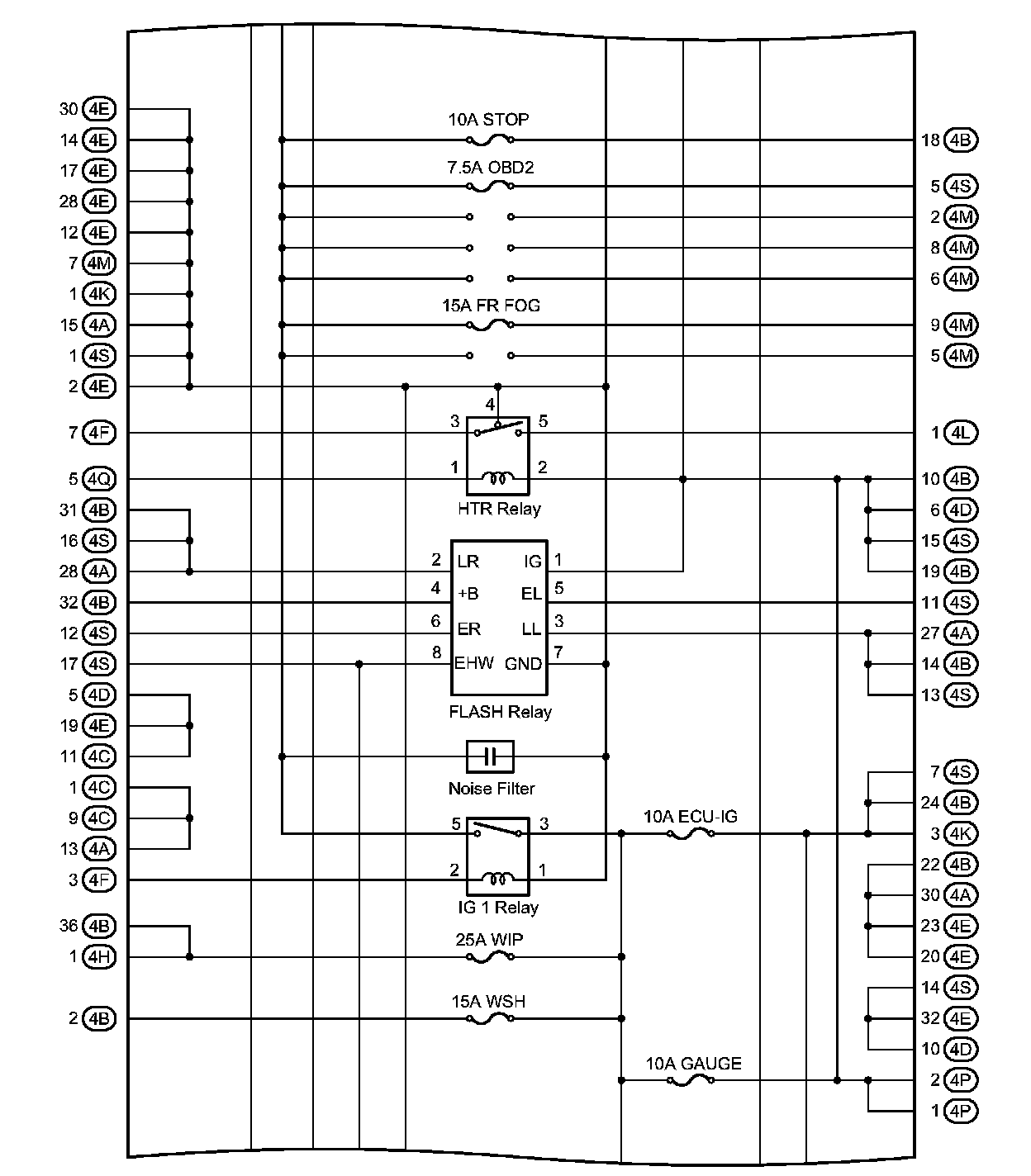

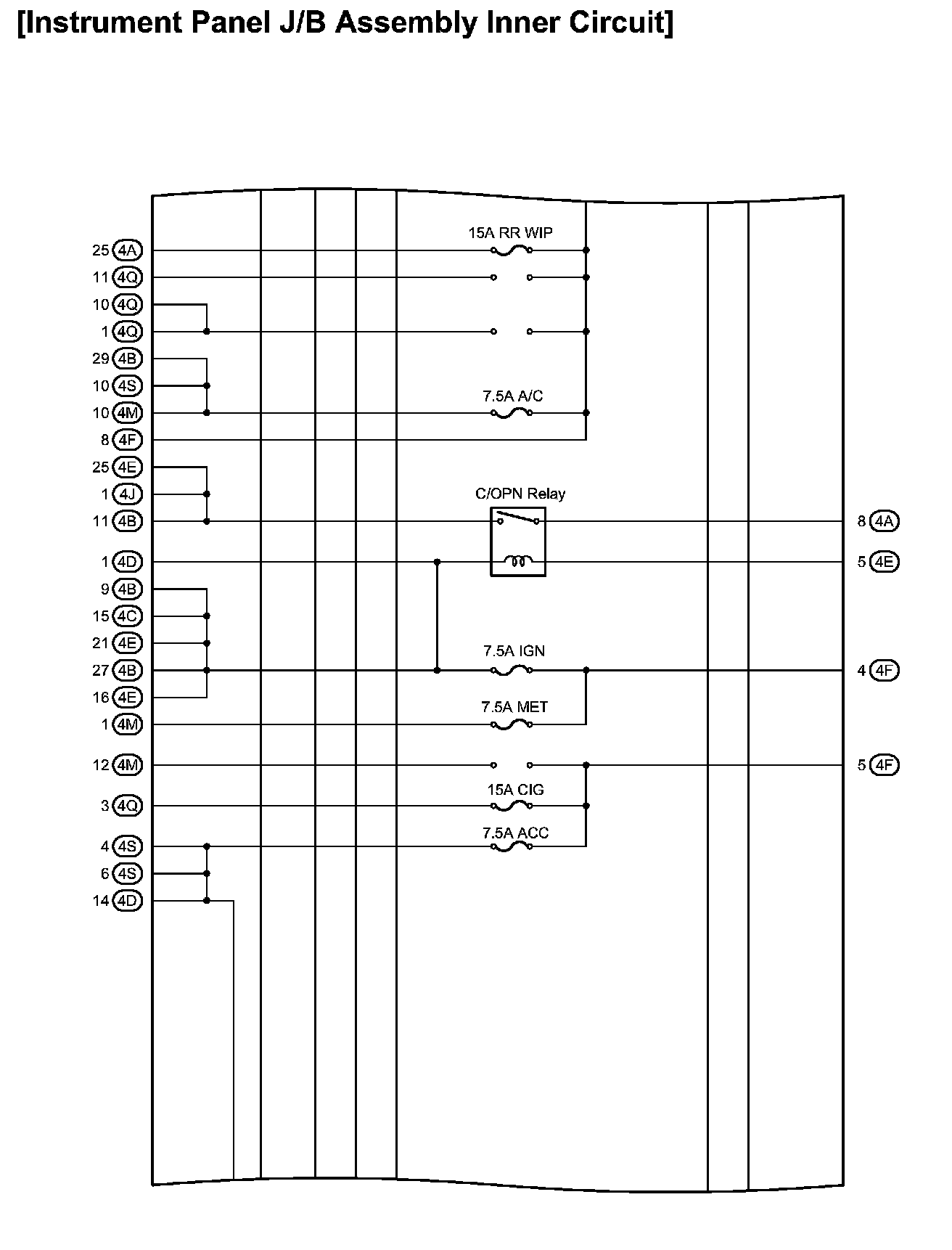

Instrument Panel J/B Assembly Inner Circuit:

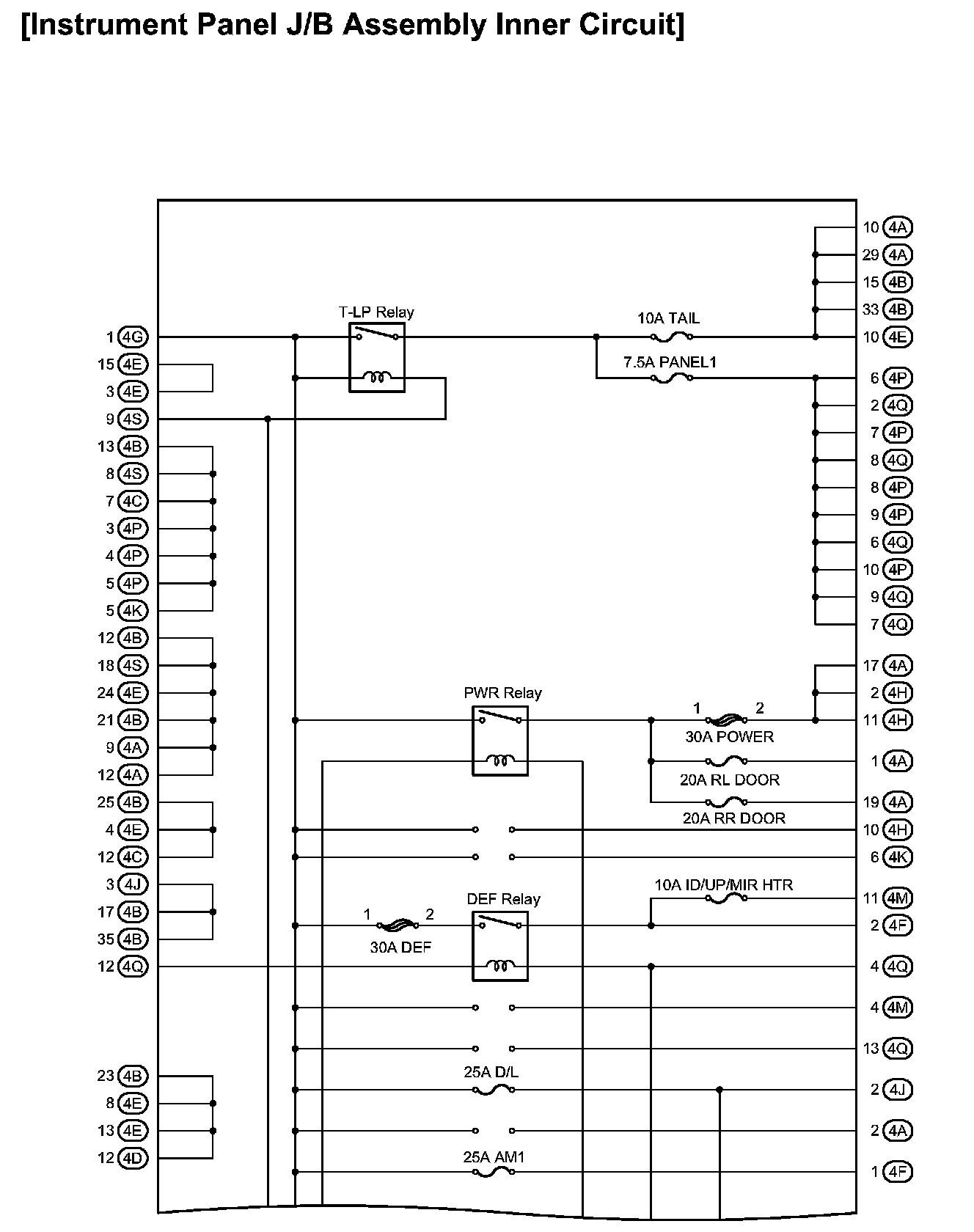

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

Instrument Panel J/B Assembly Inner Circuit:

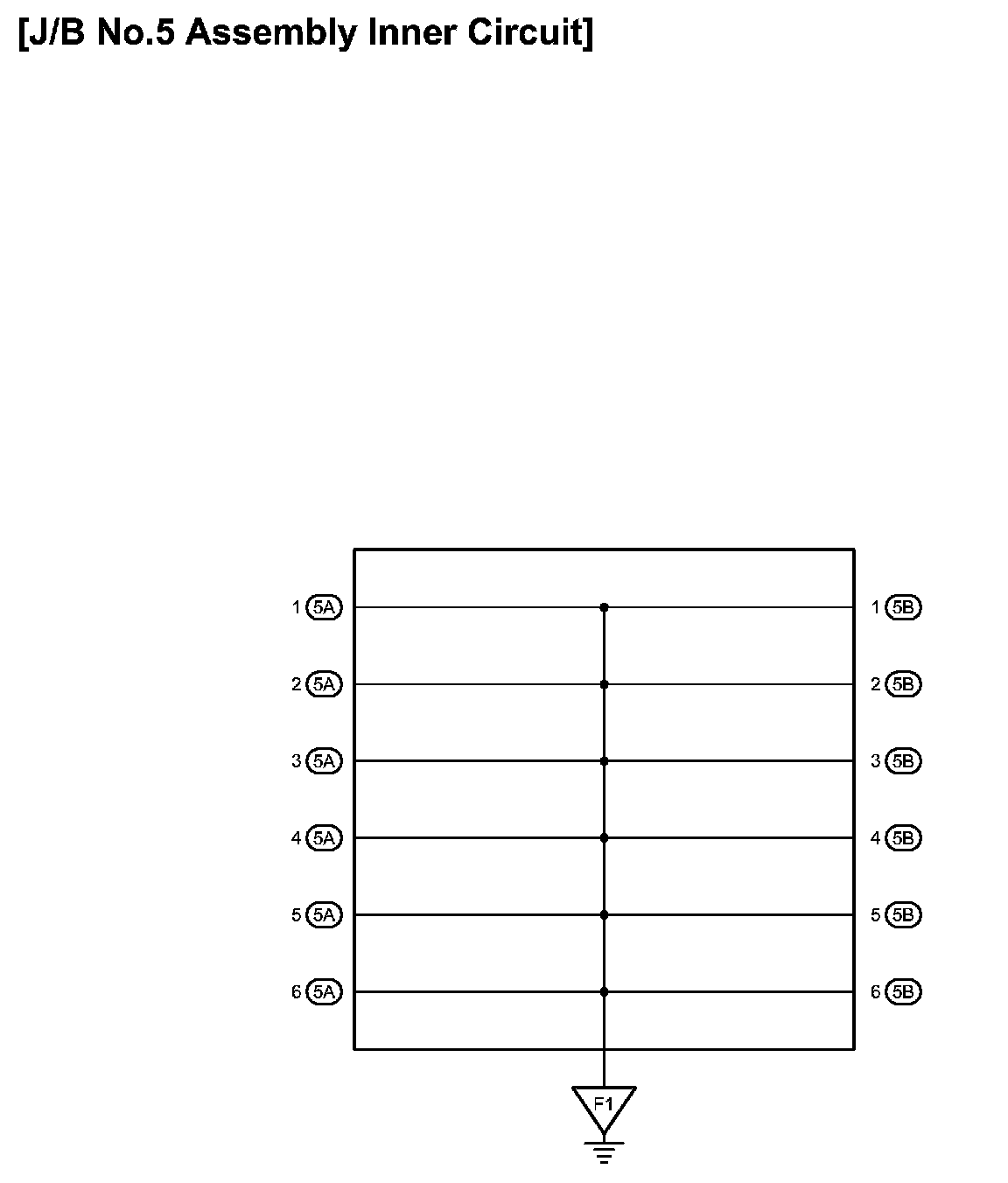

J/B No.5 Assembly Inner Circuit:

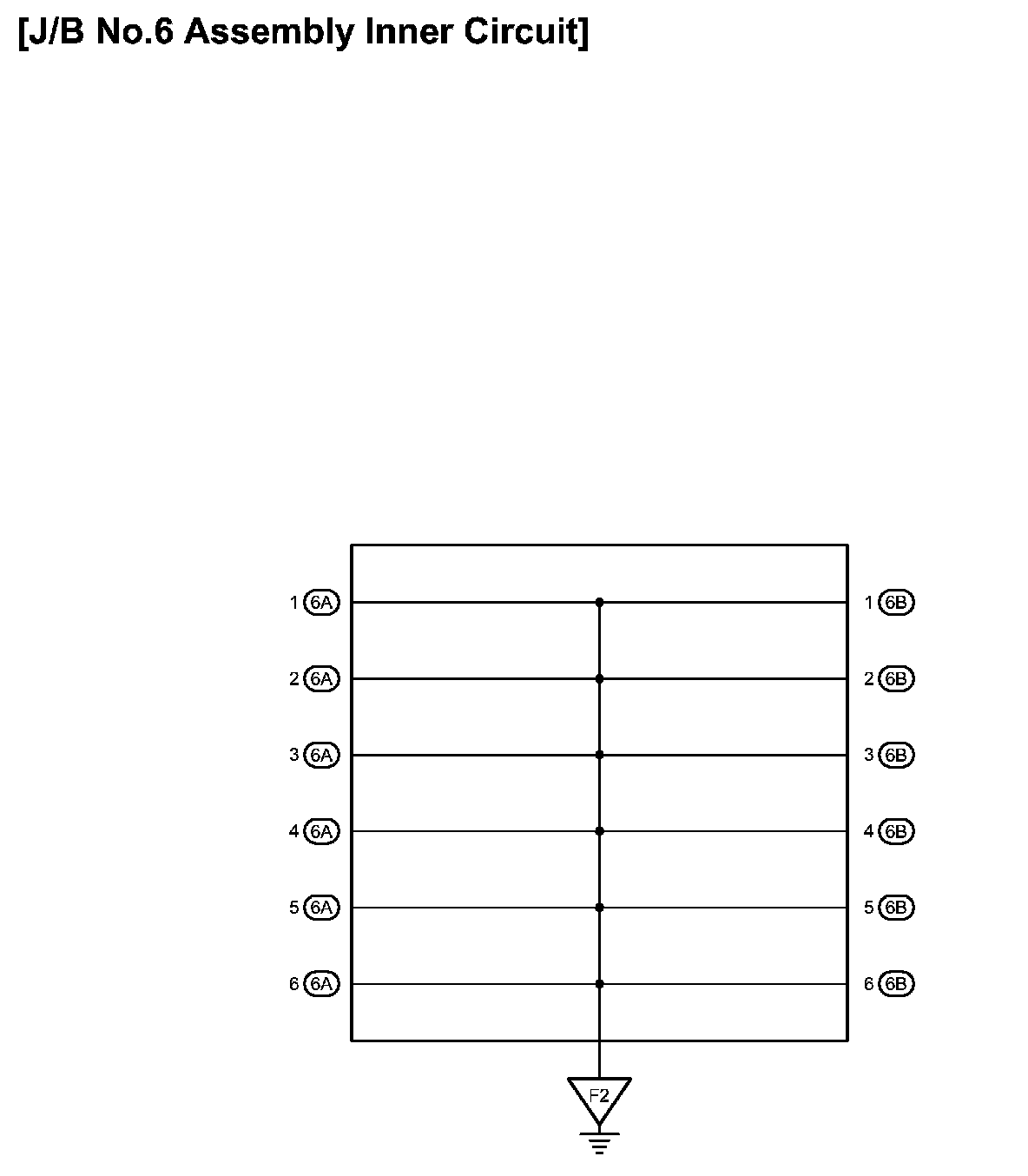

J/B No.6 Assembly Inner Circuit:

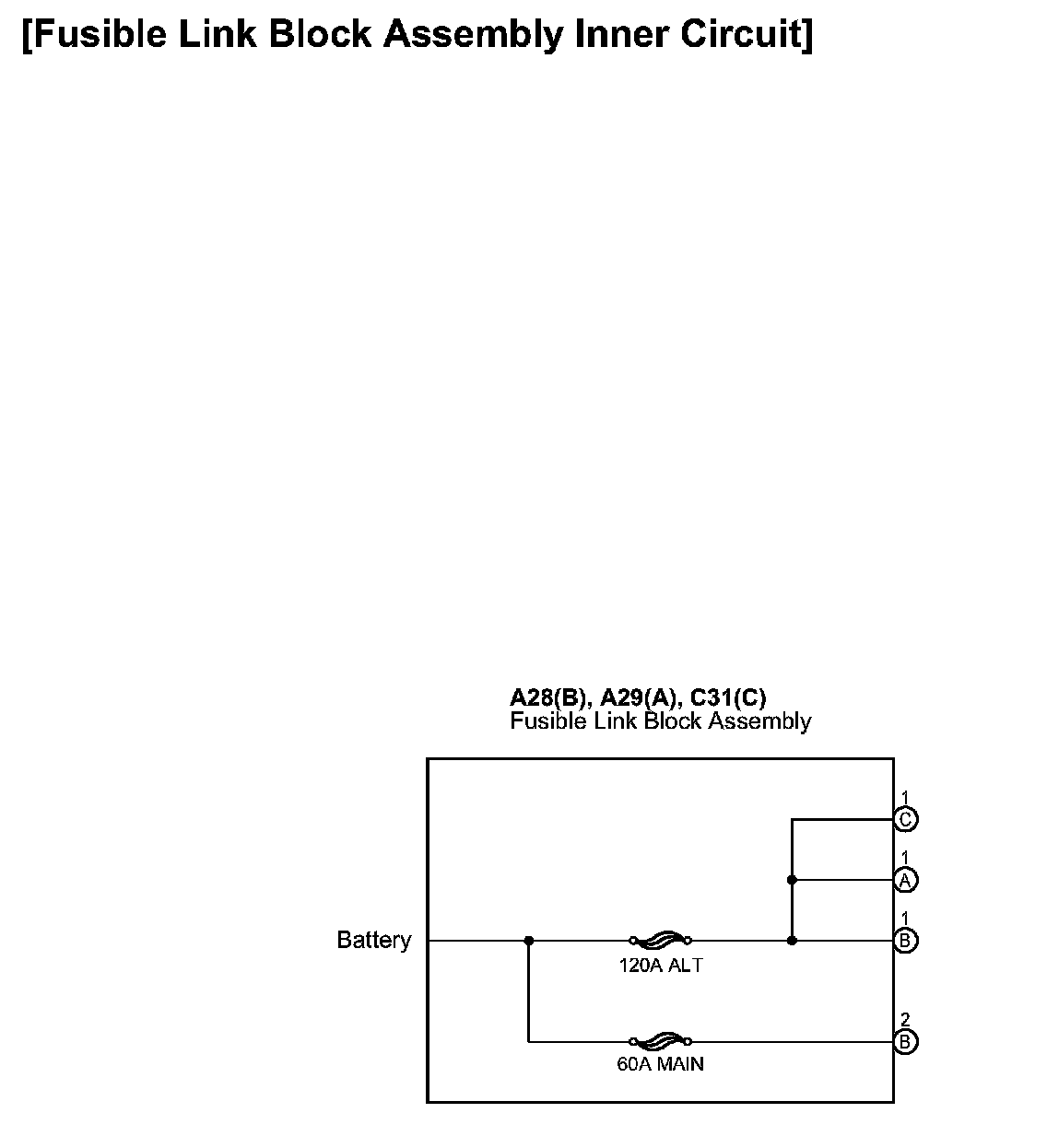

Fusible Link Block Assembly Inner Circuit:
