System Diagram

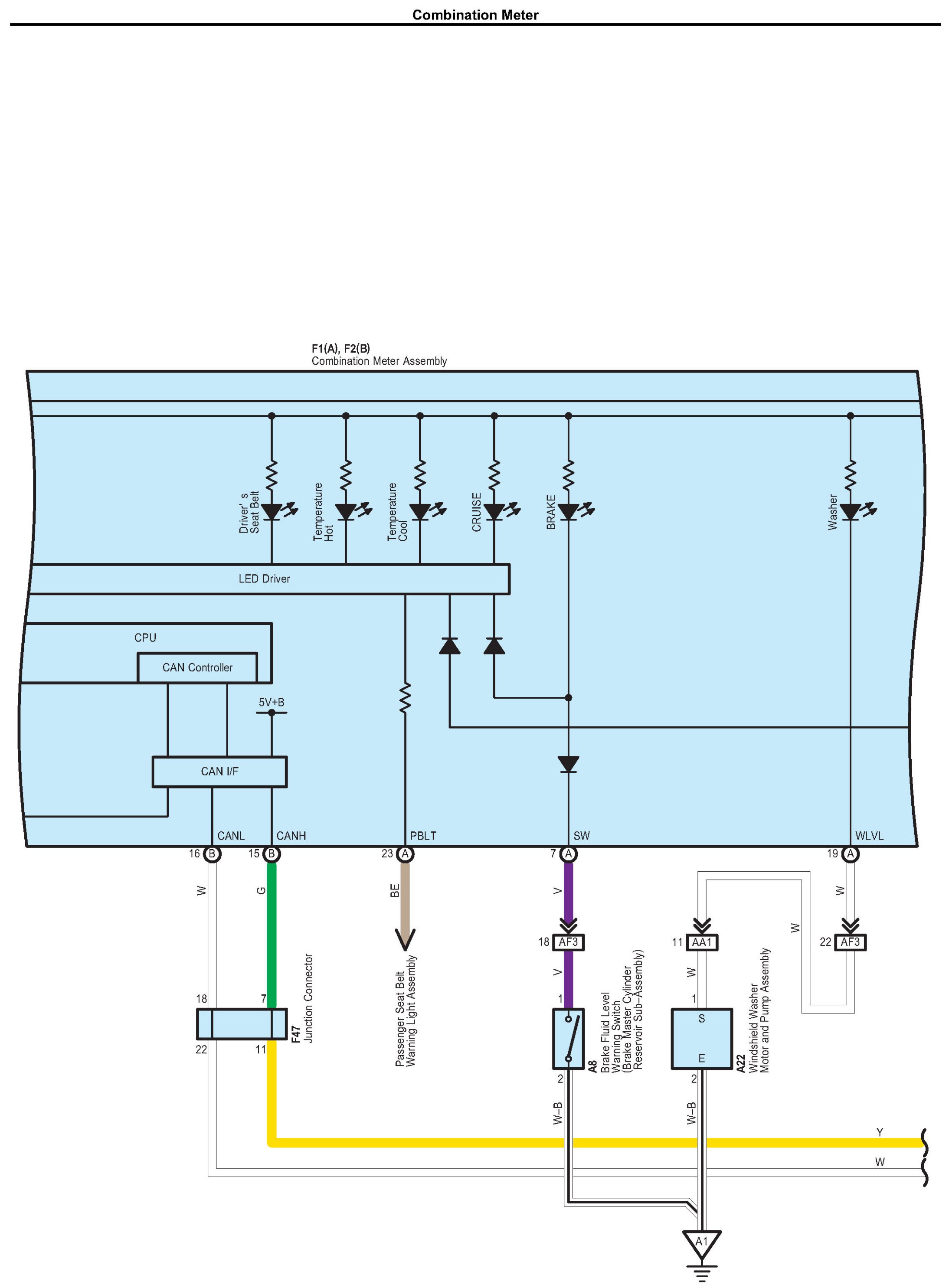

Combination Meter Part 1:

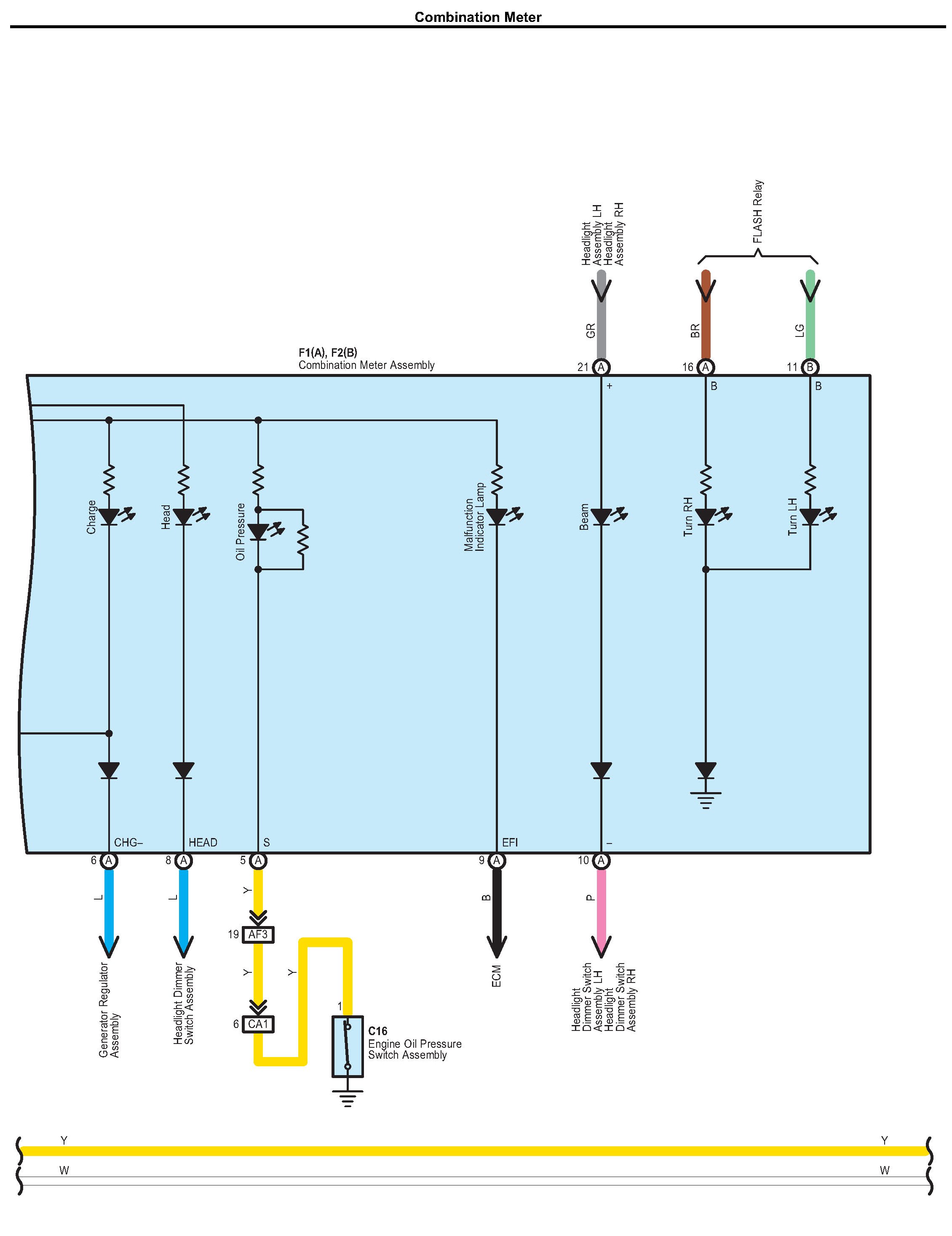

Combination Meter Part 2:

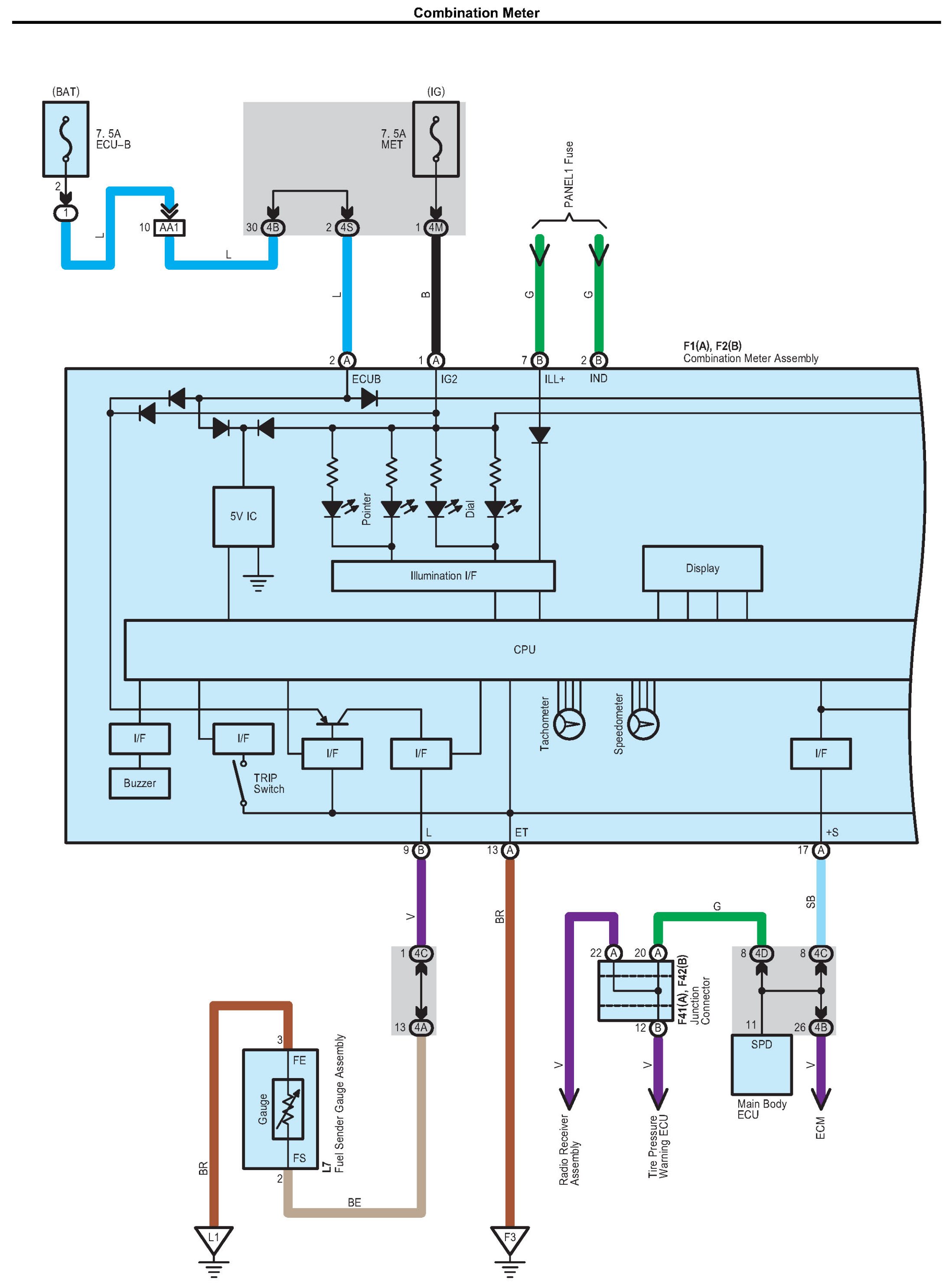

Combination Meter Part 3:

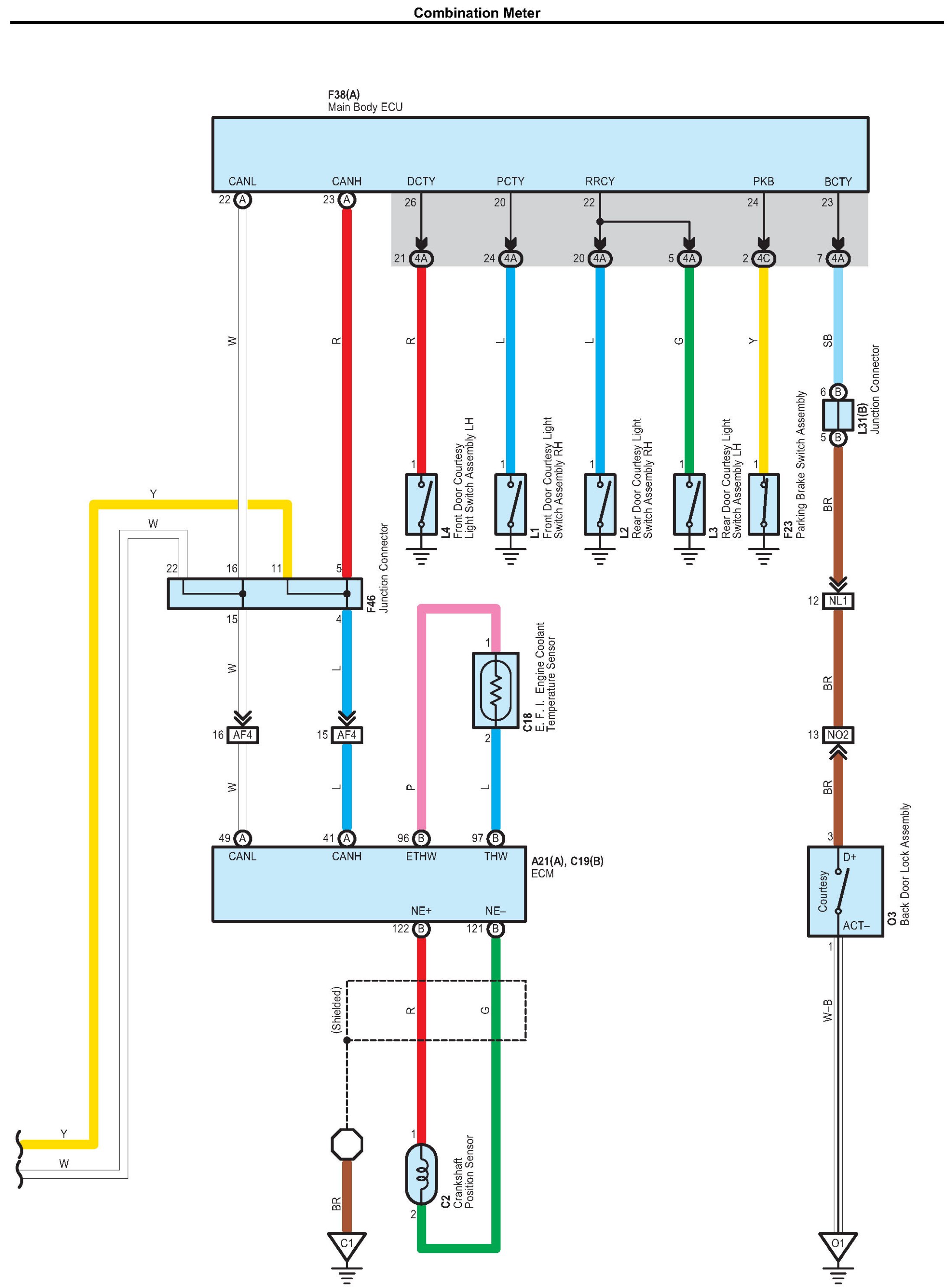

Combination Meter Part 4:

Combination Meter Part 5:

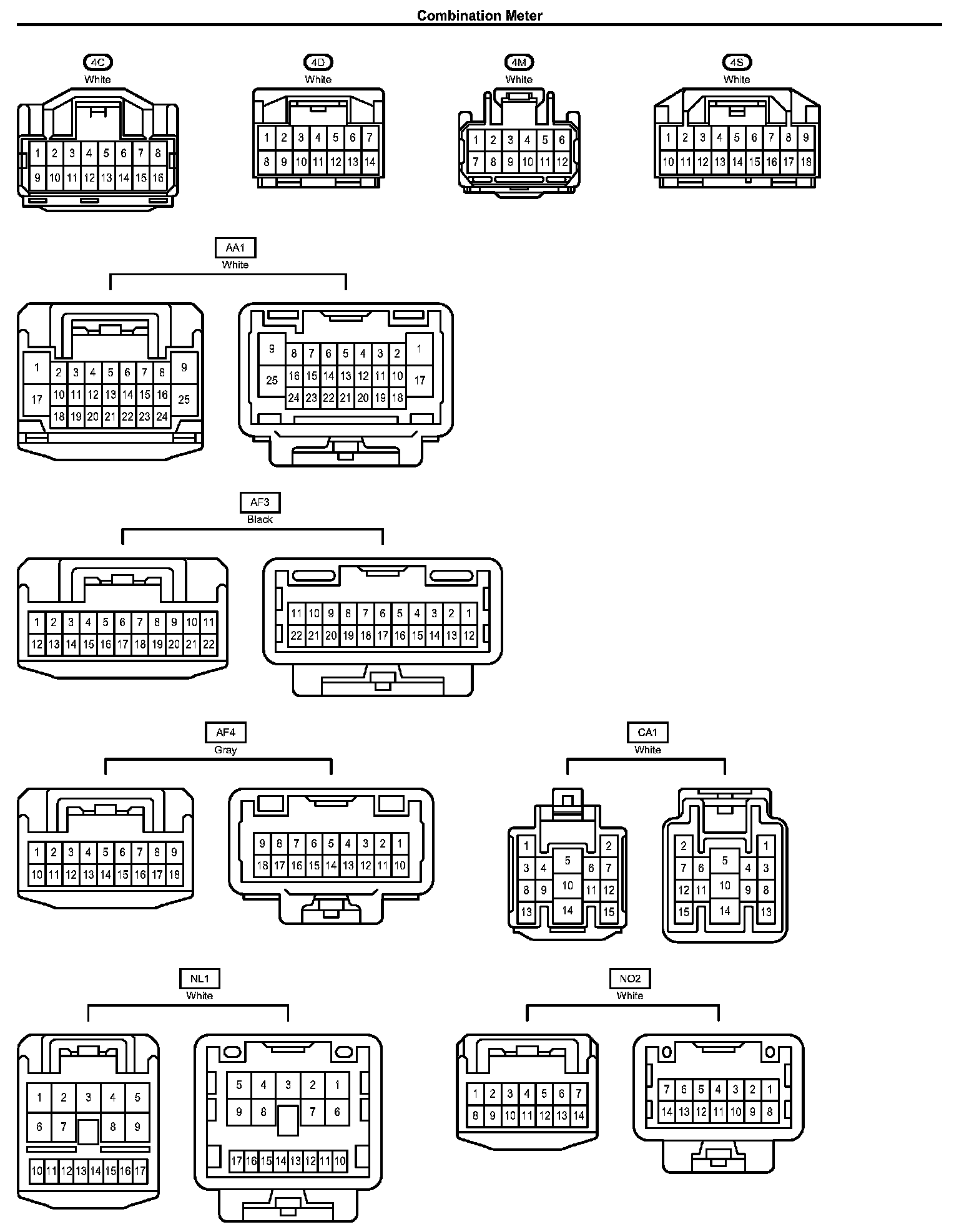

Connectors Part 1:

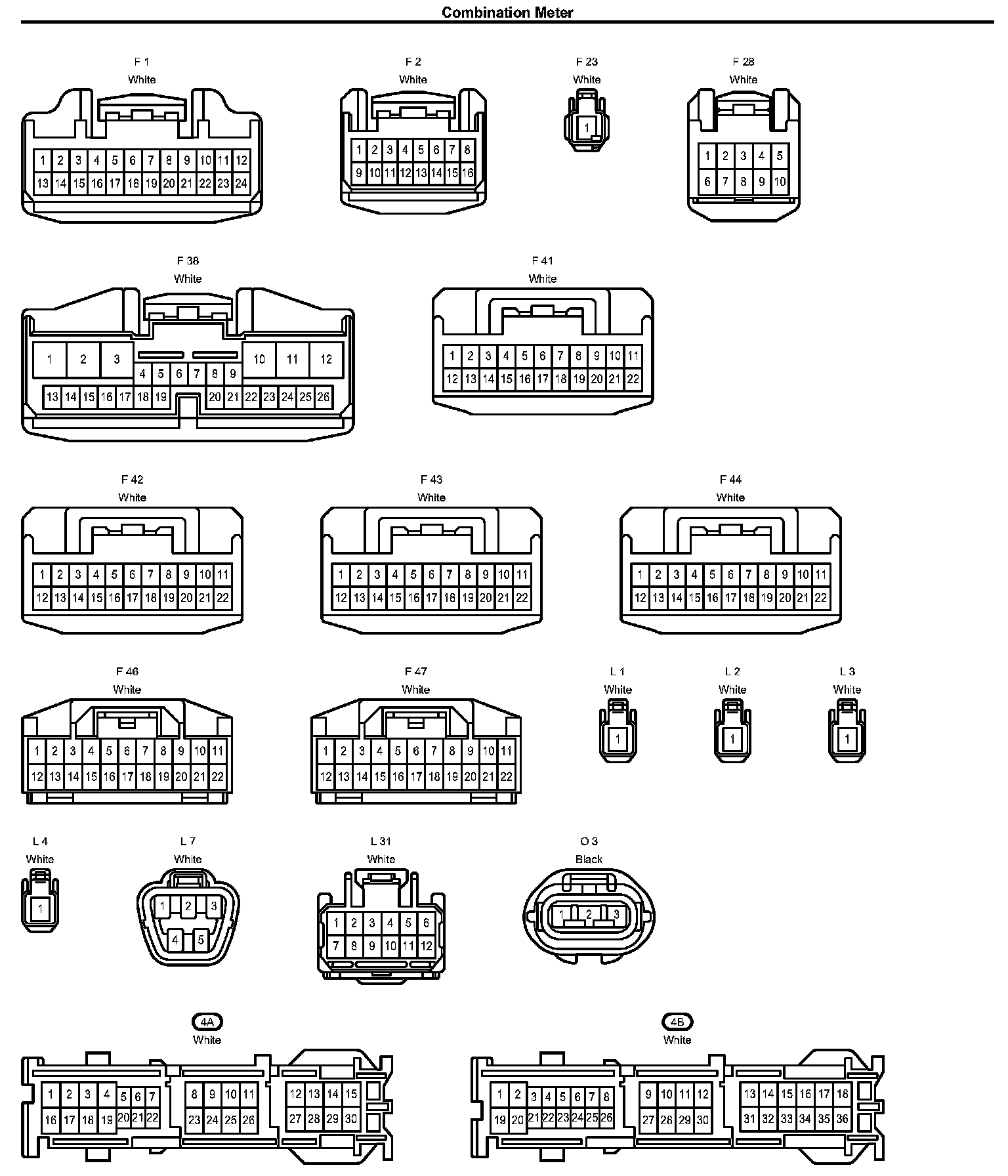

Connectors Part 2:

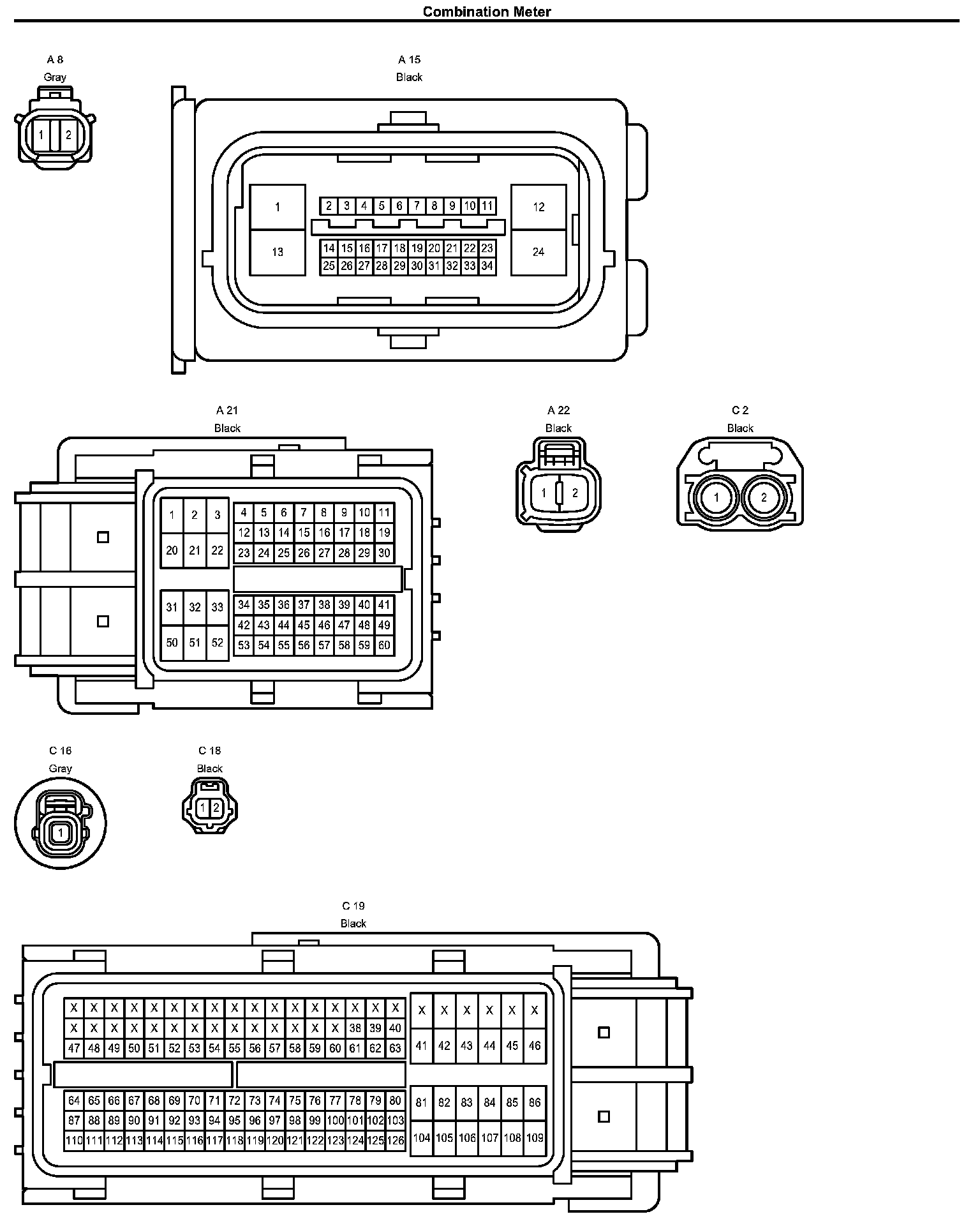

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
