Key Reminder, Light Reminder

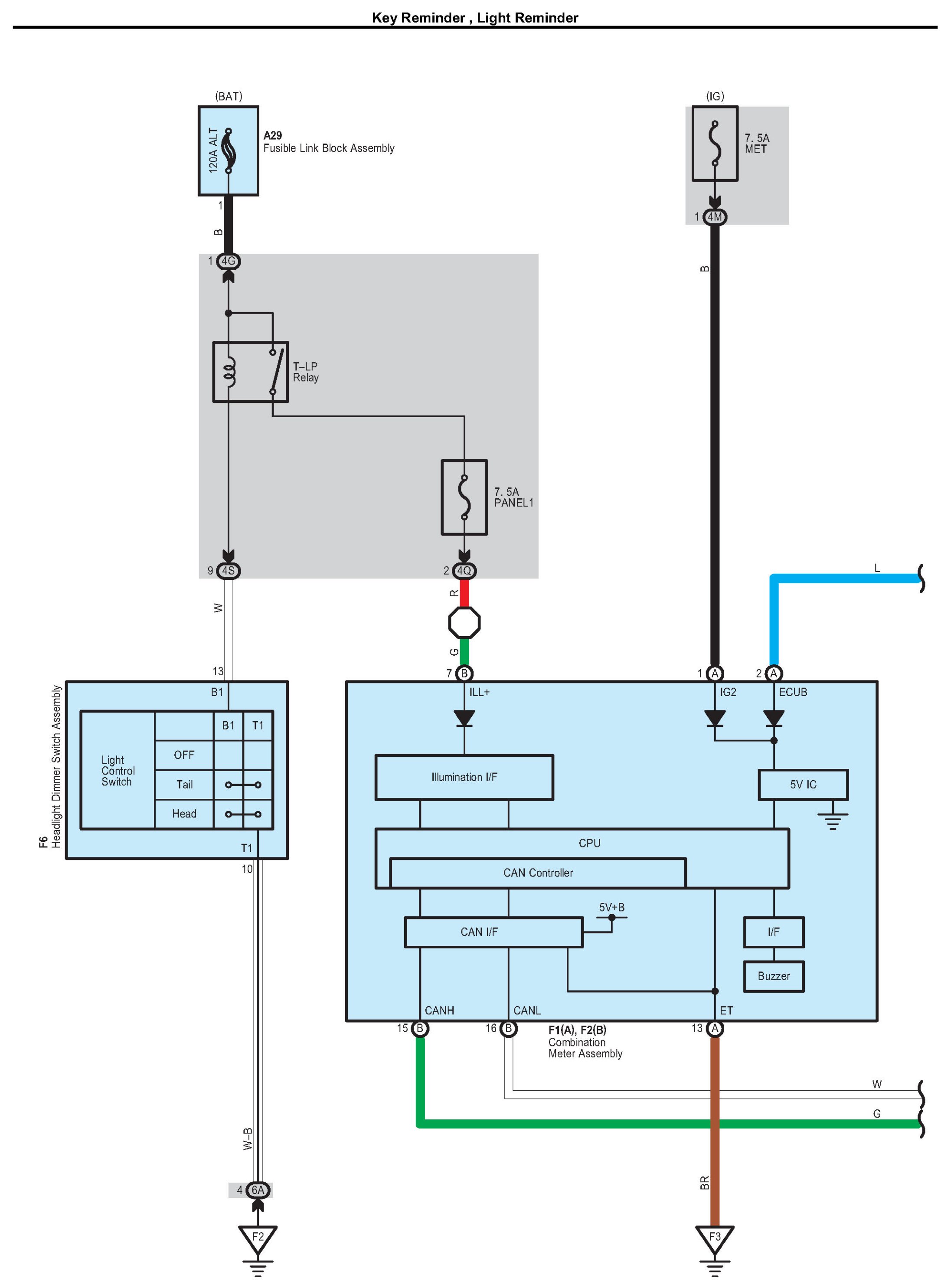

Key Reminder, Light Reminder Part 1:

Key Reminder, Light Reminder Part 2:

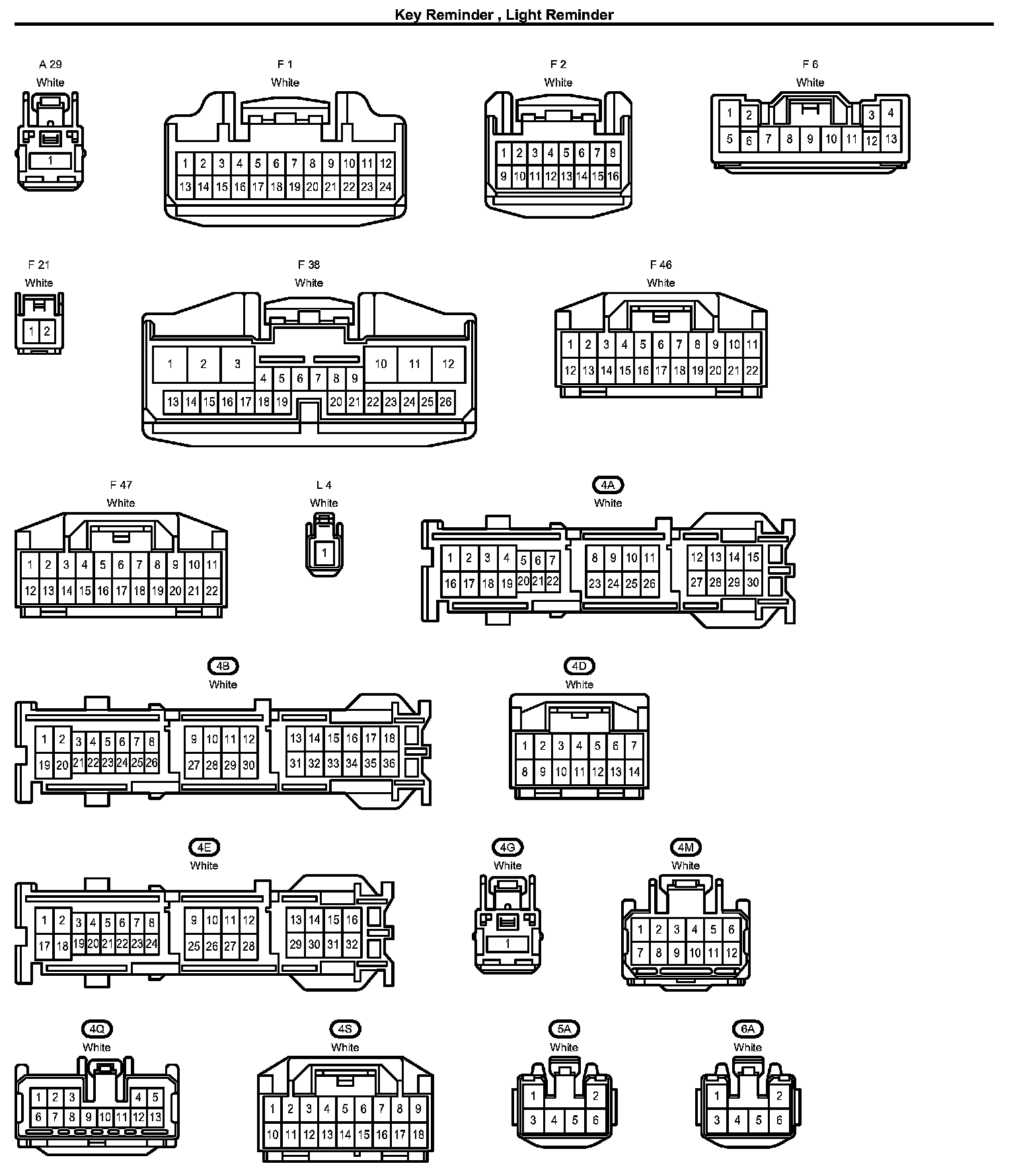

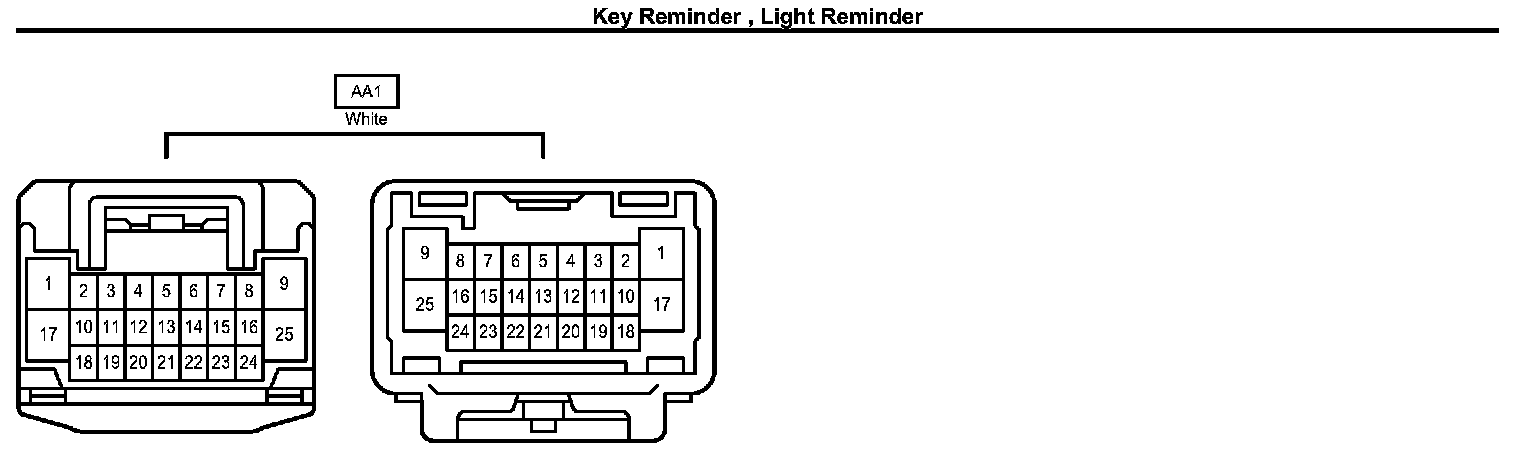

Connectors Part 1:

Connectors Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
