System Diagram

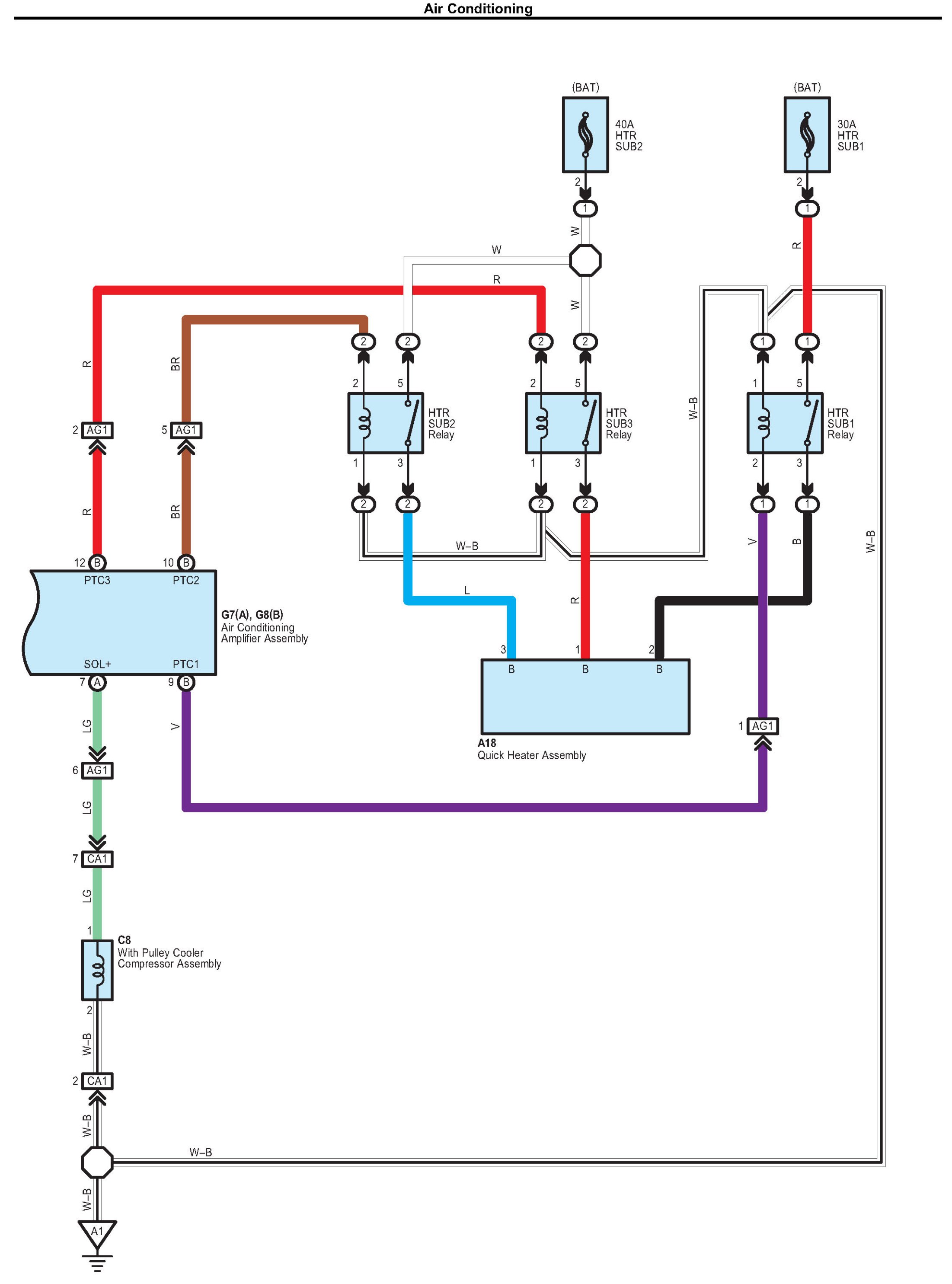

Air Conditioning Part 1:

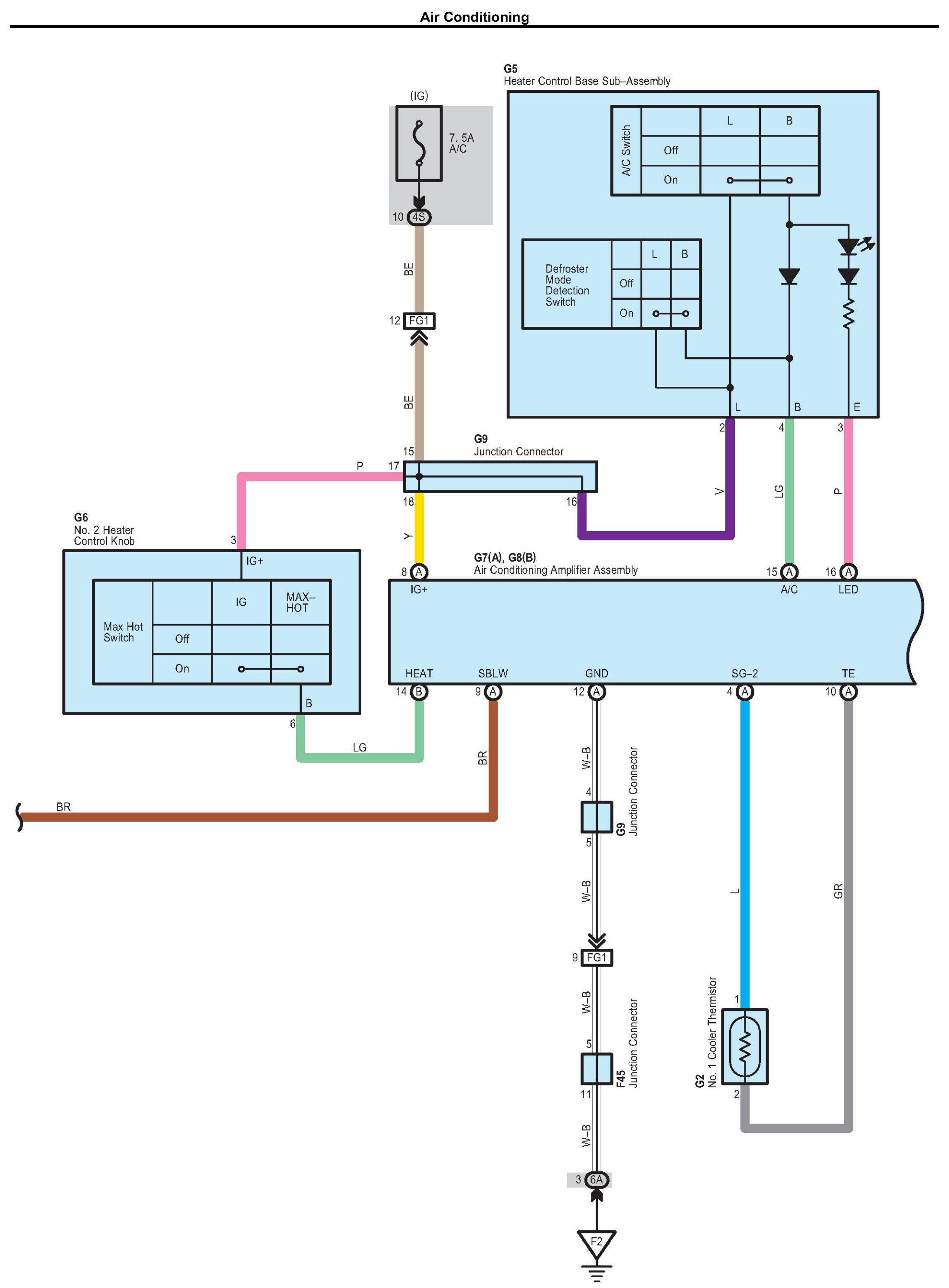

Air Conditioning Part 2:

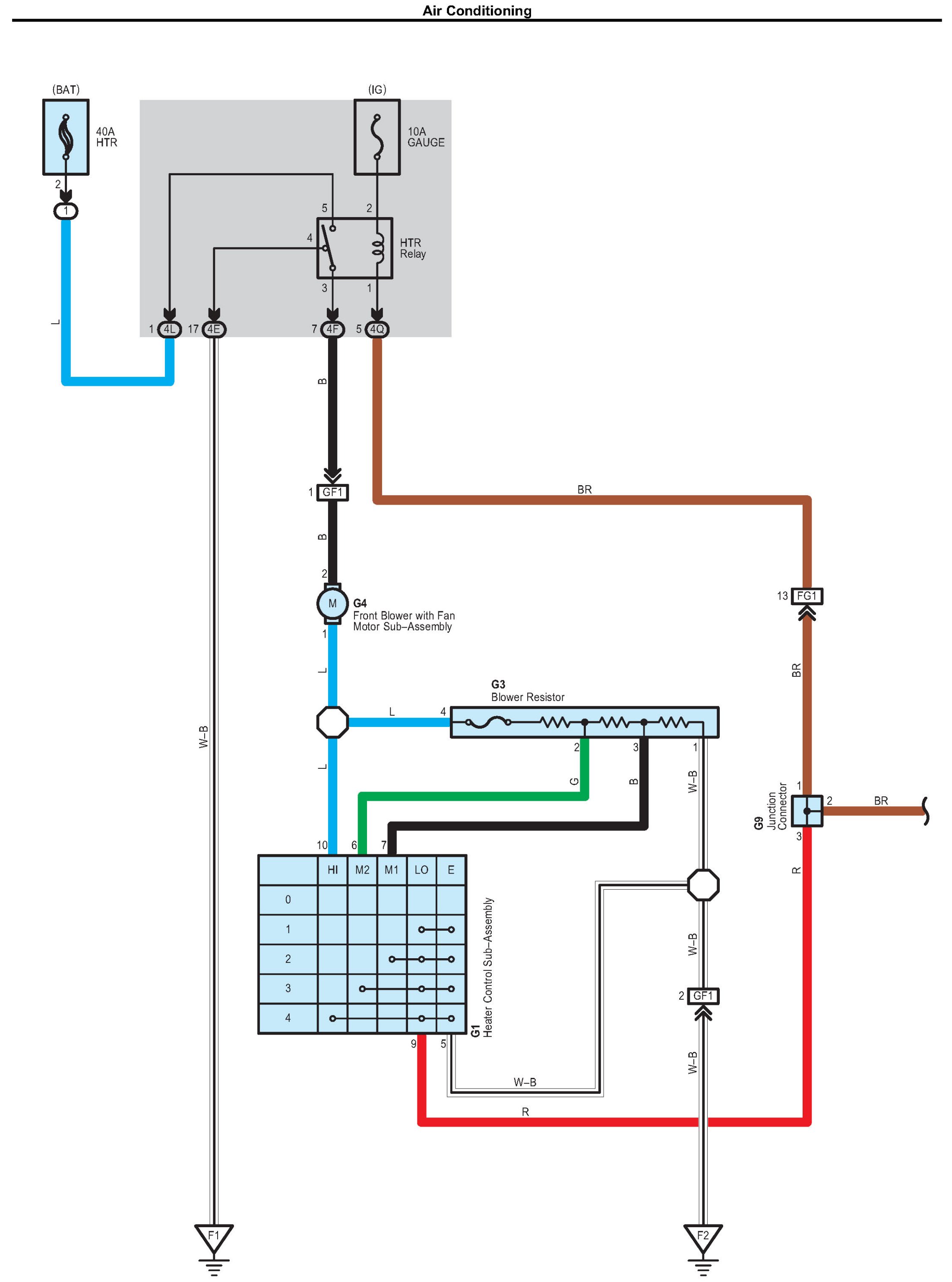

Air Conditioning Part 3:

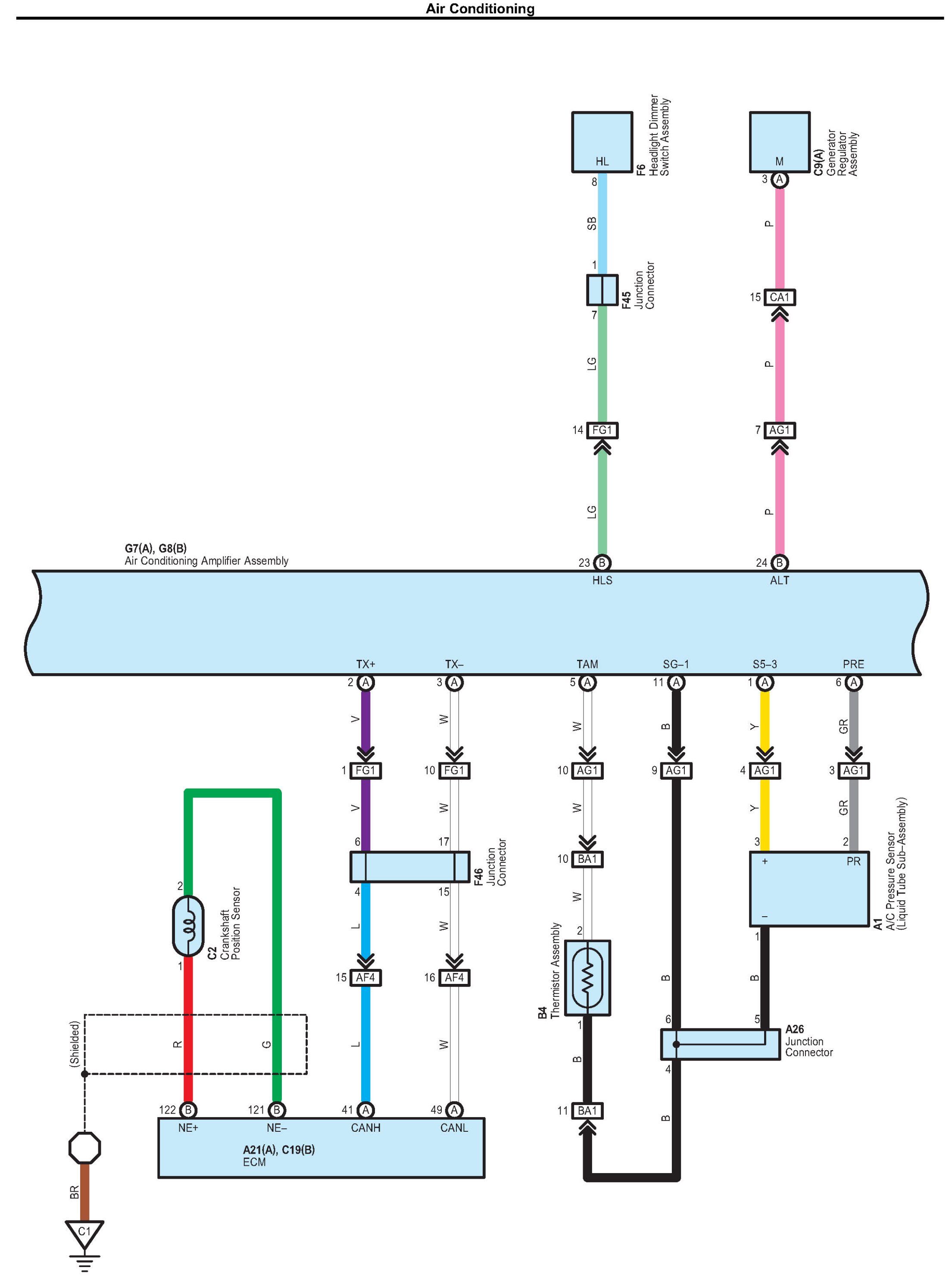

Air Conditioning Part 4:

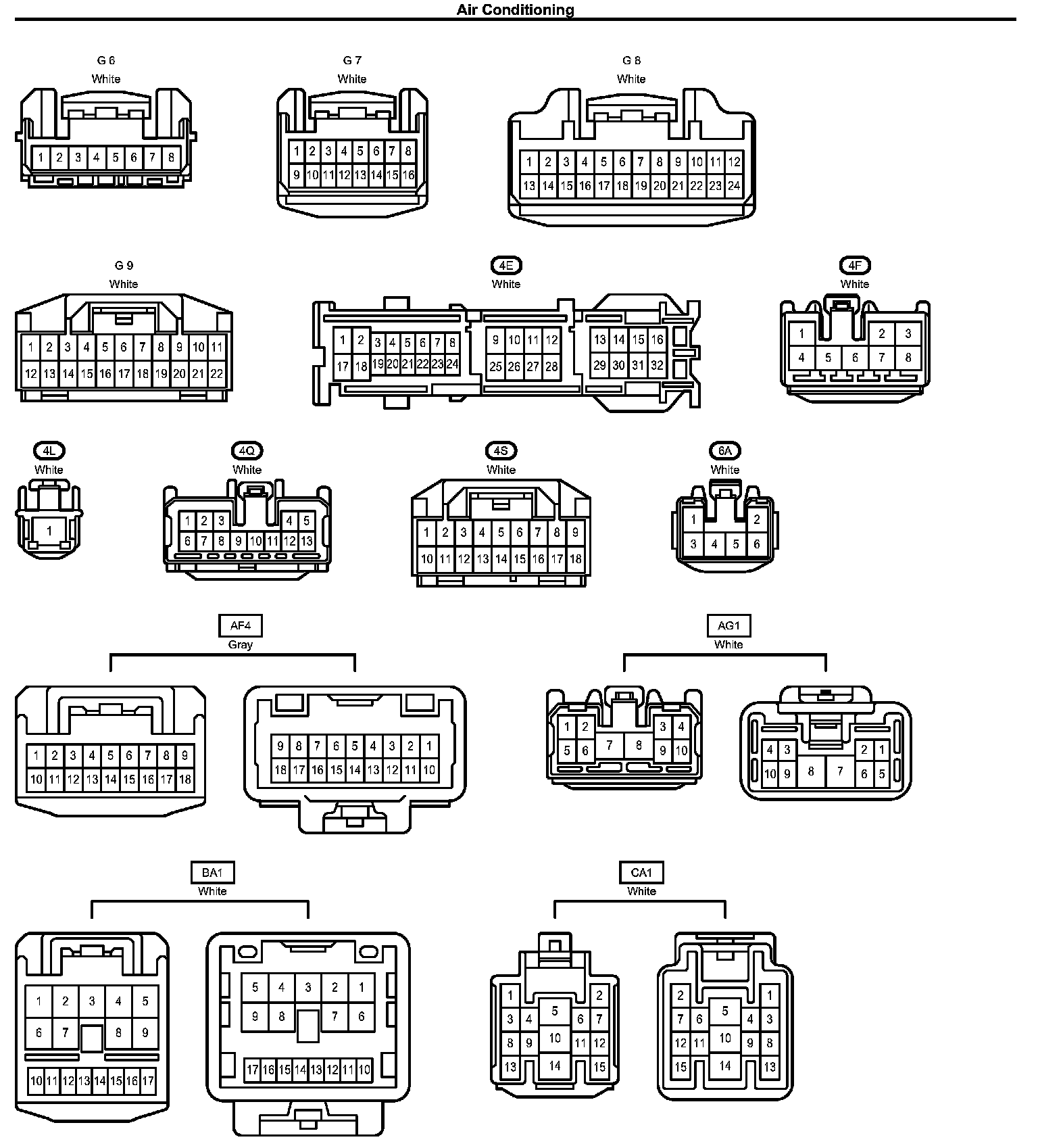

Connectors Part 1:

Connectors Part 2:

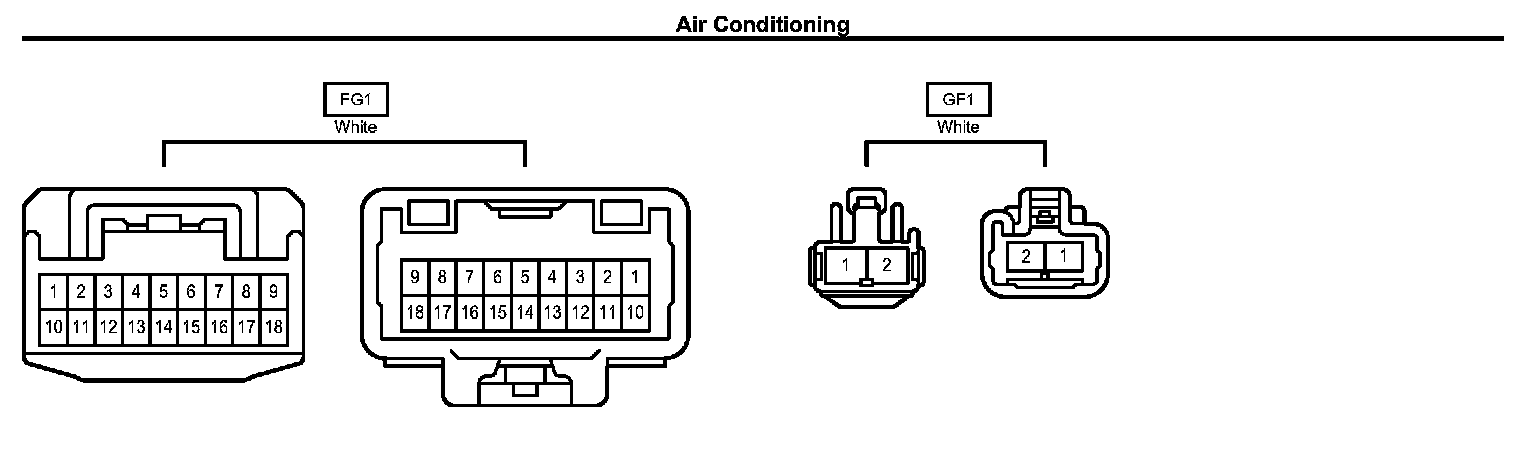

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
