Antilock Brakes / Traction Control Systems

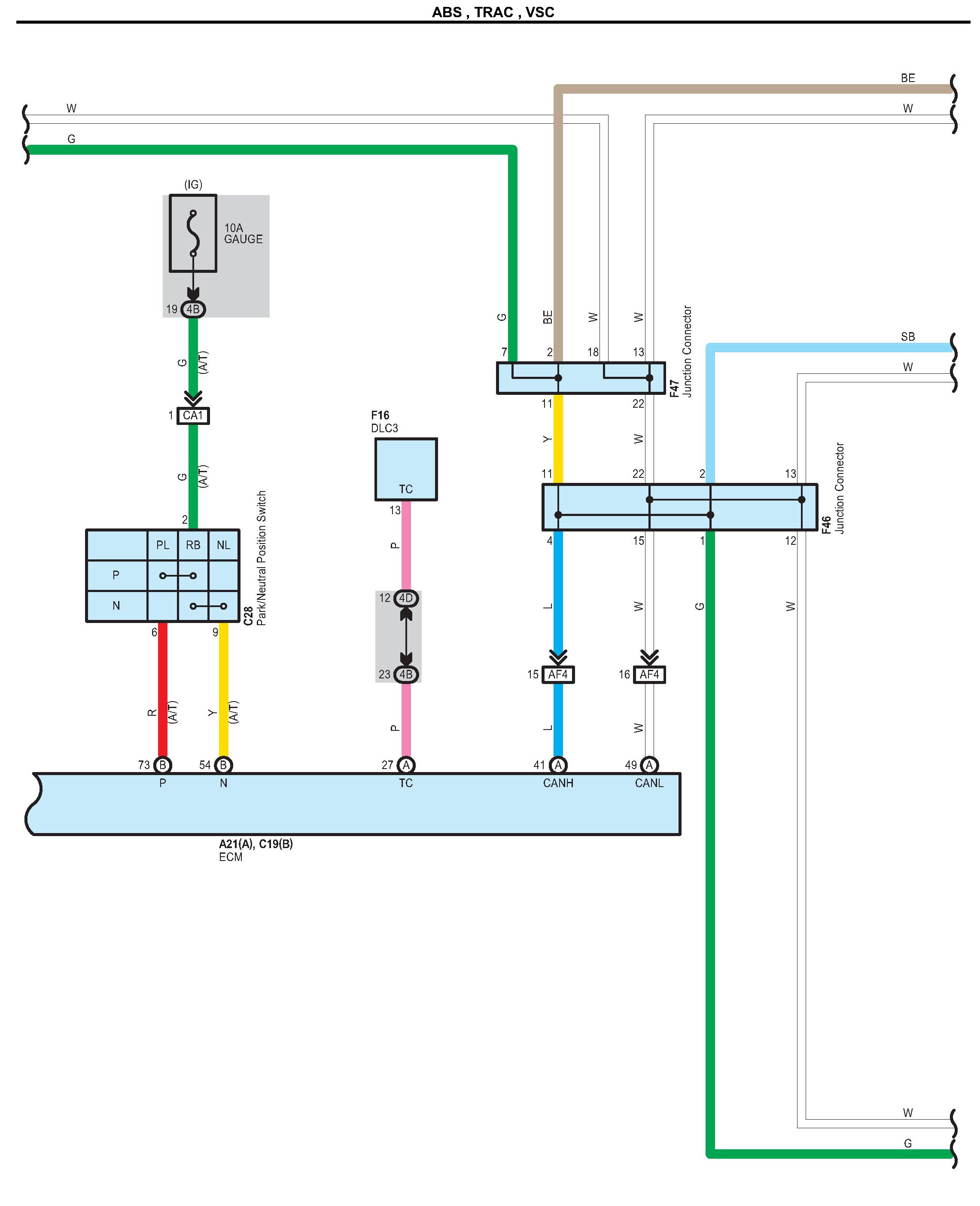

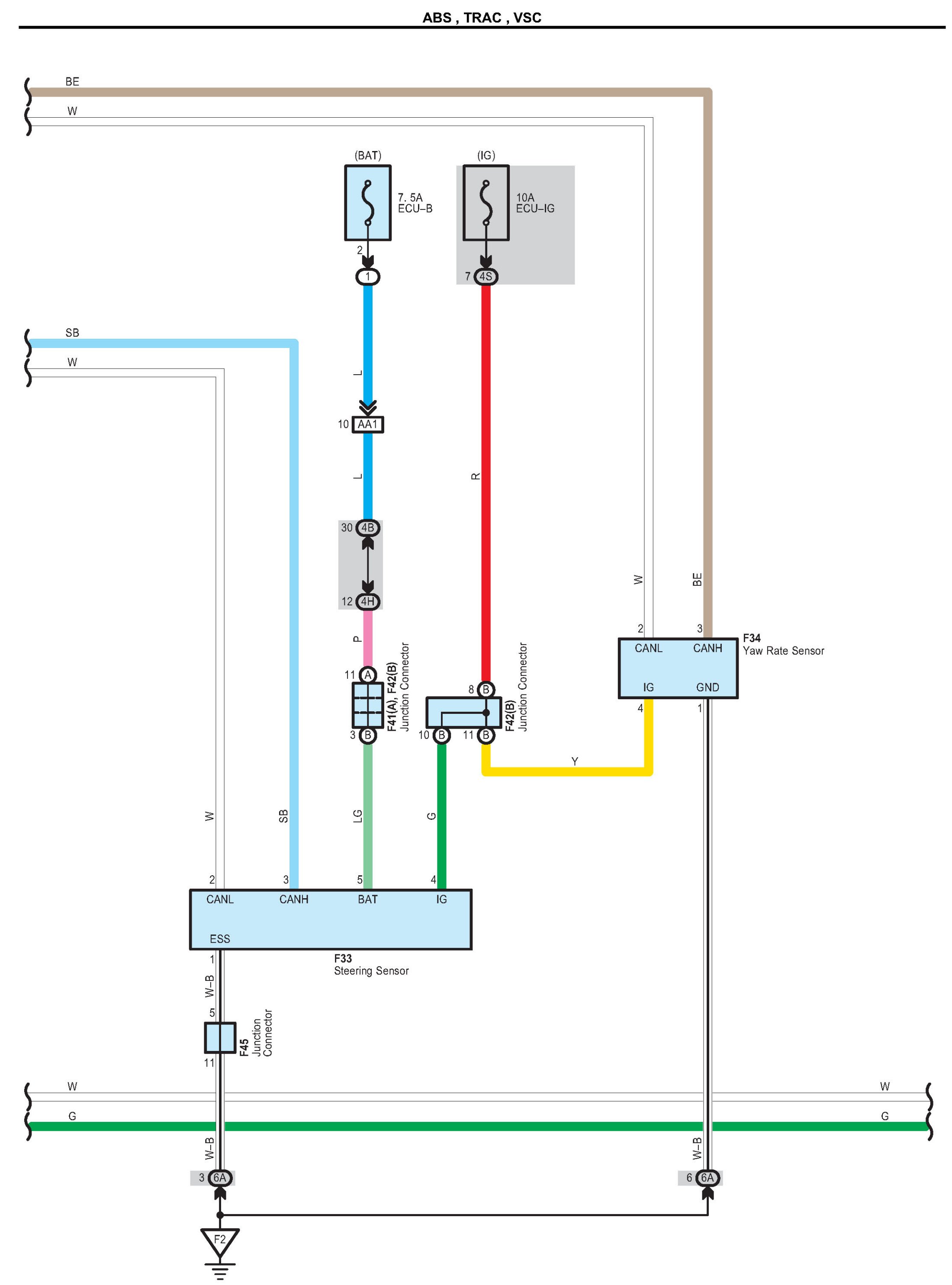

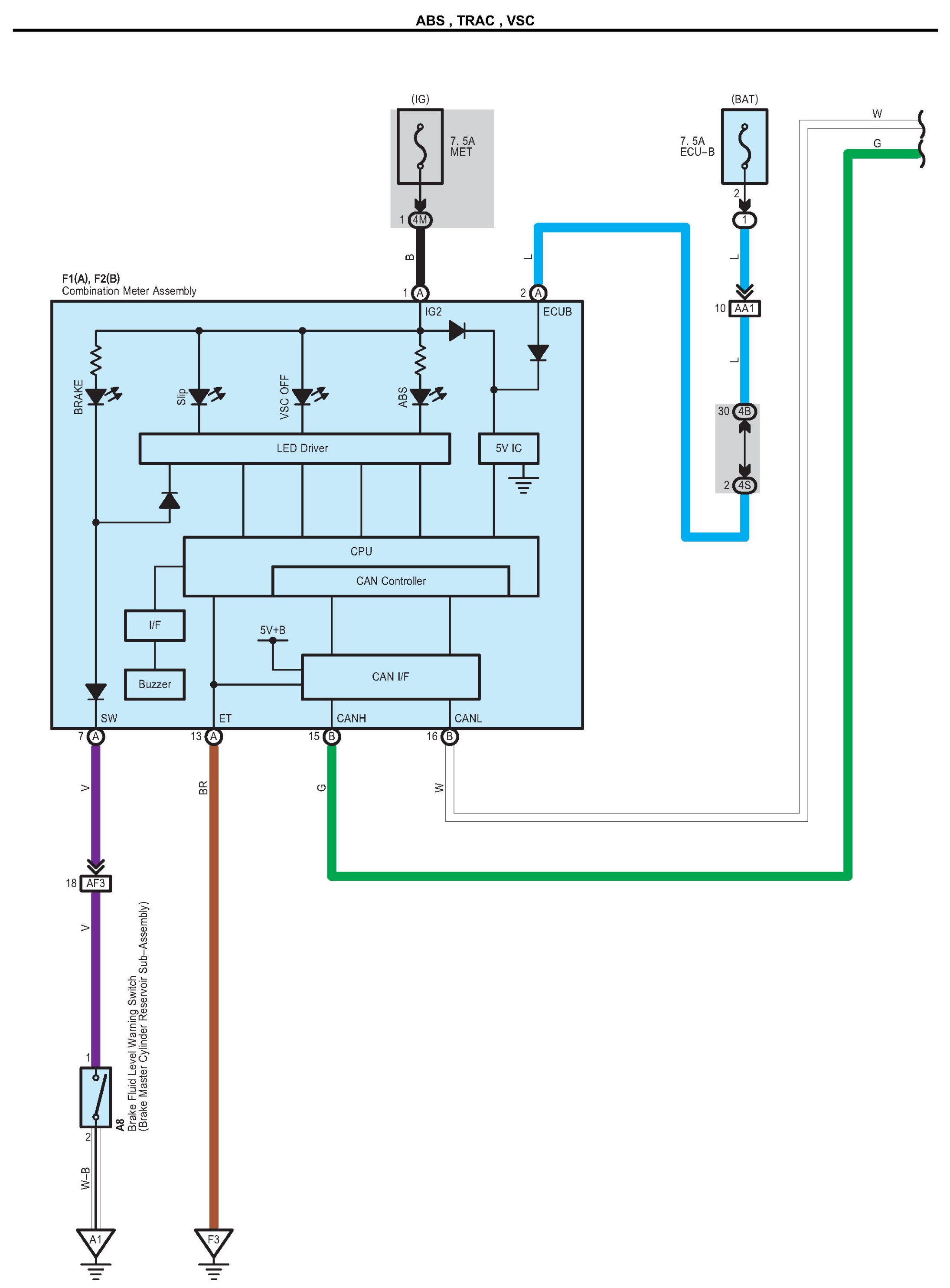

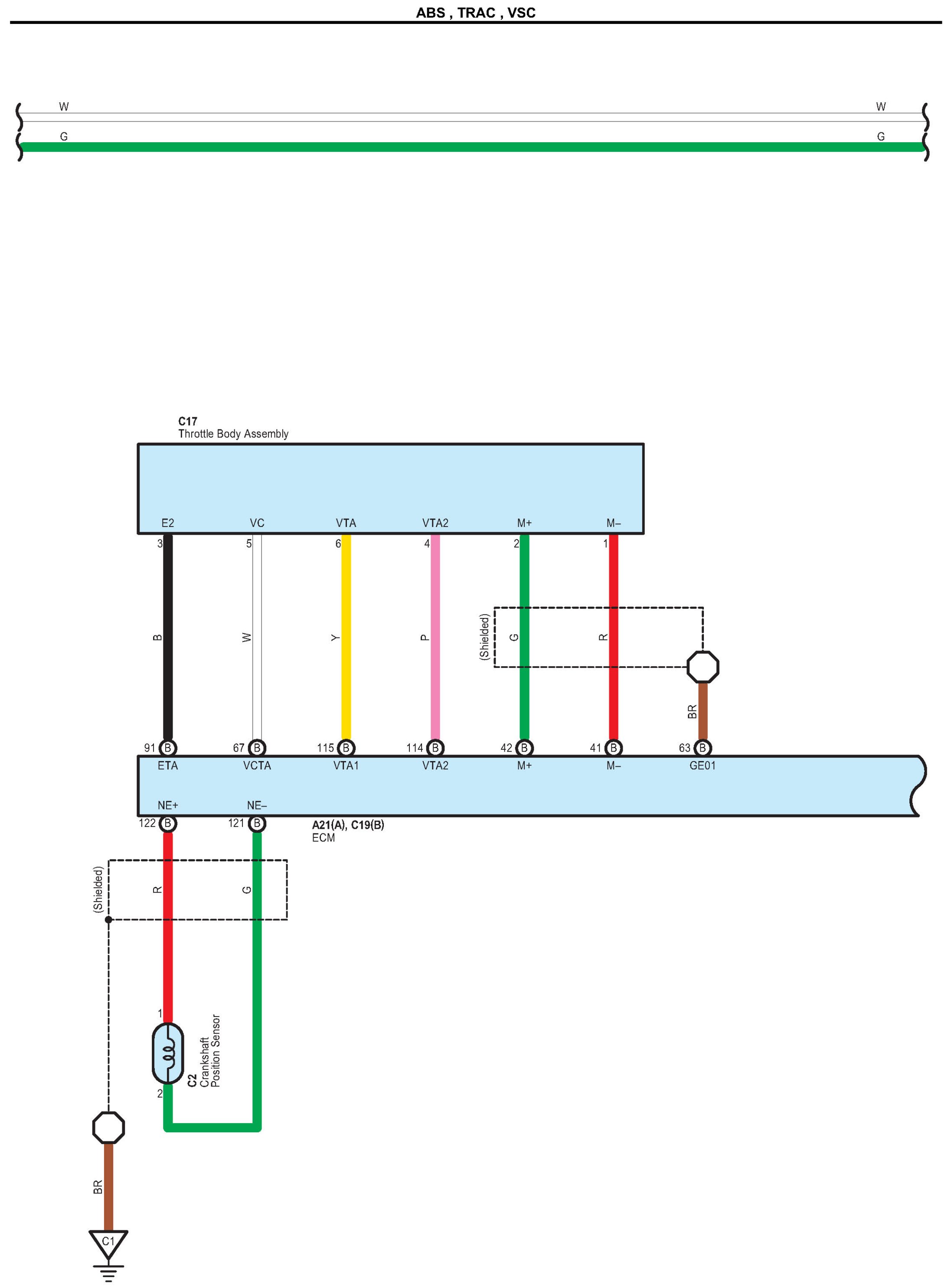

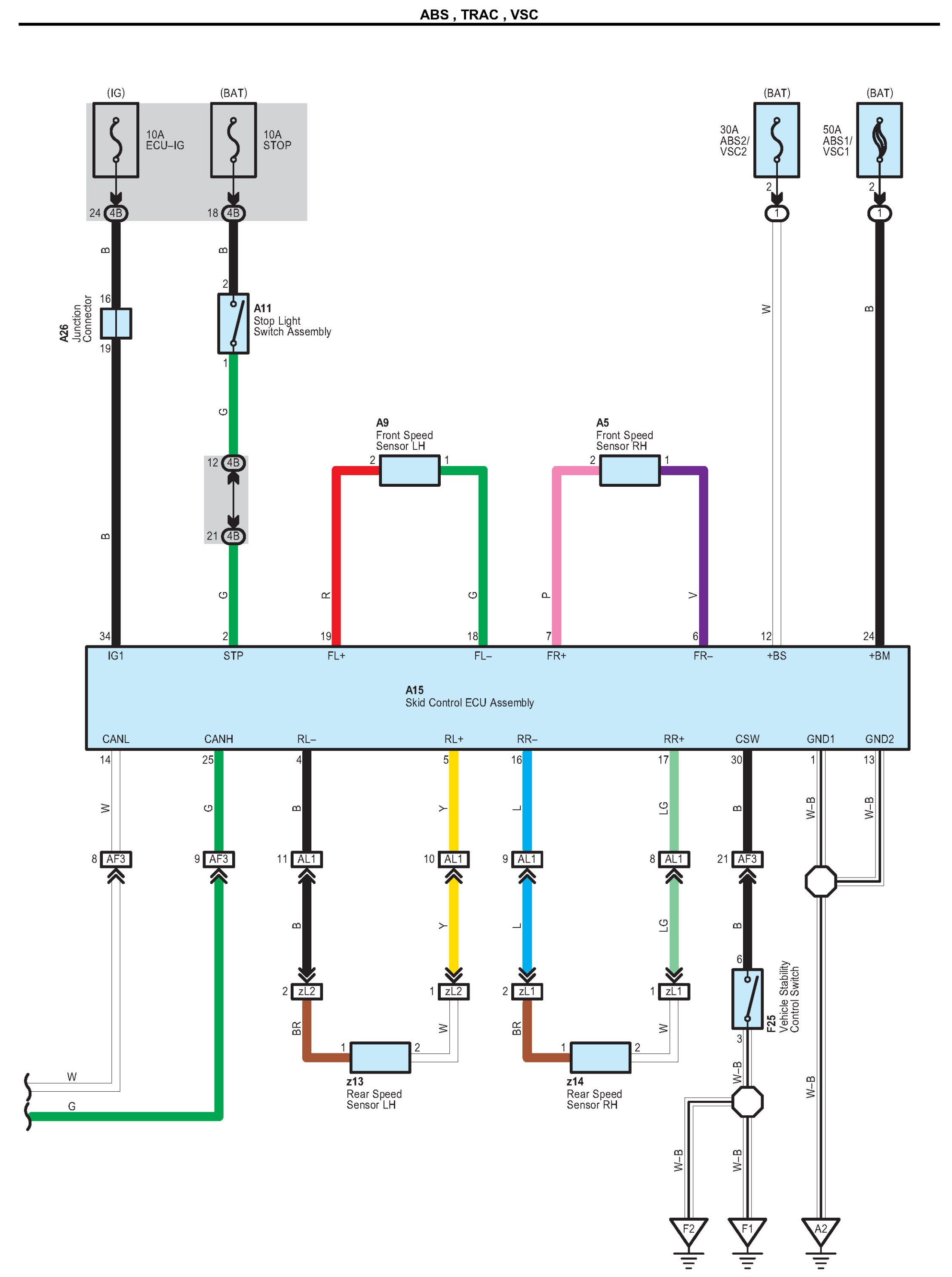

ABS, TRAC, VSC Part 1:

ABS, TRAC, VSC Part 2:

ABS, TRAC, VSC Part 3:

ABS, TRAC, VSC Part 4:

ABS, TRAC, VSC Part 5:

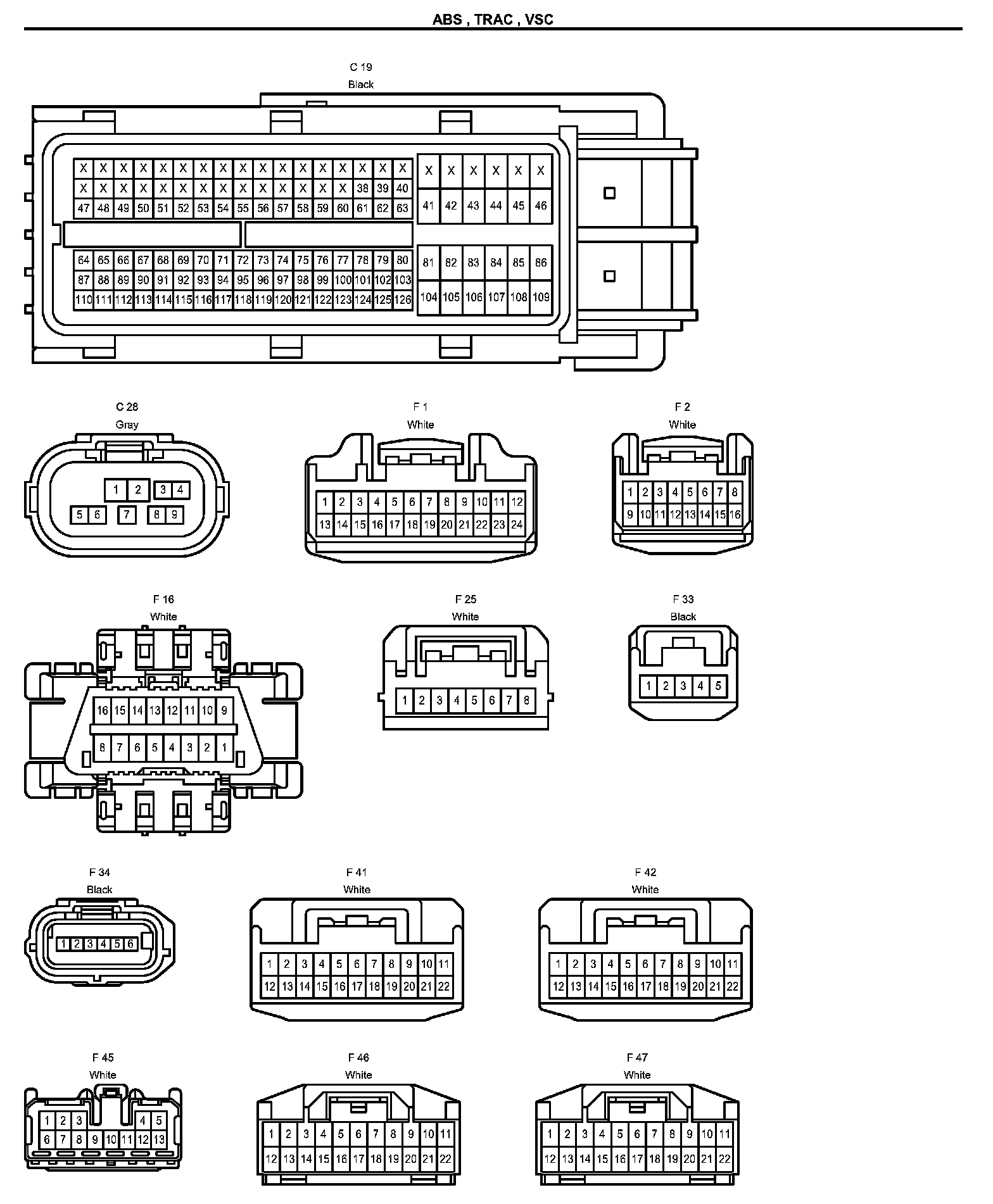

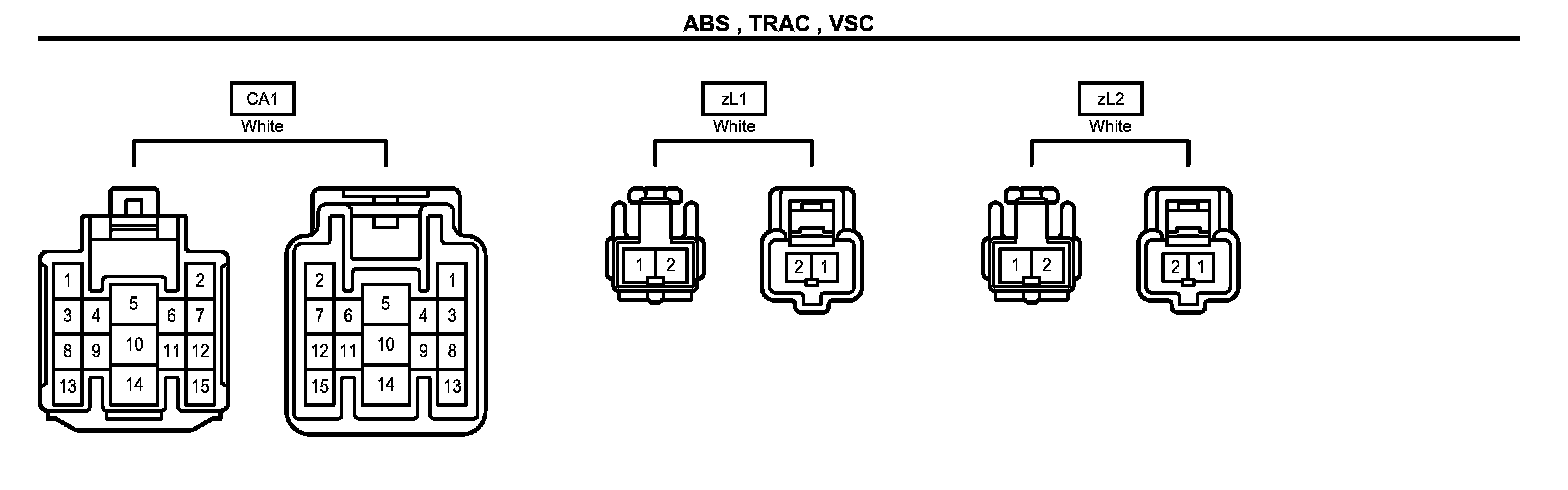

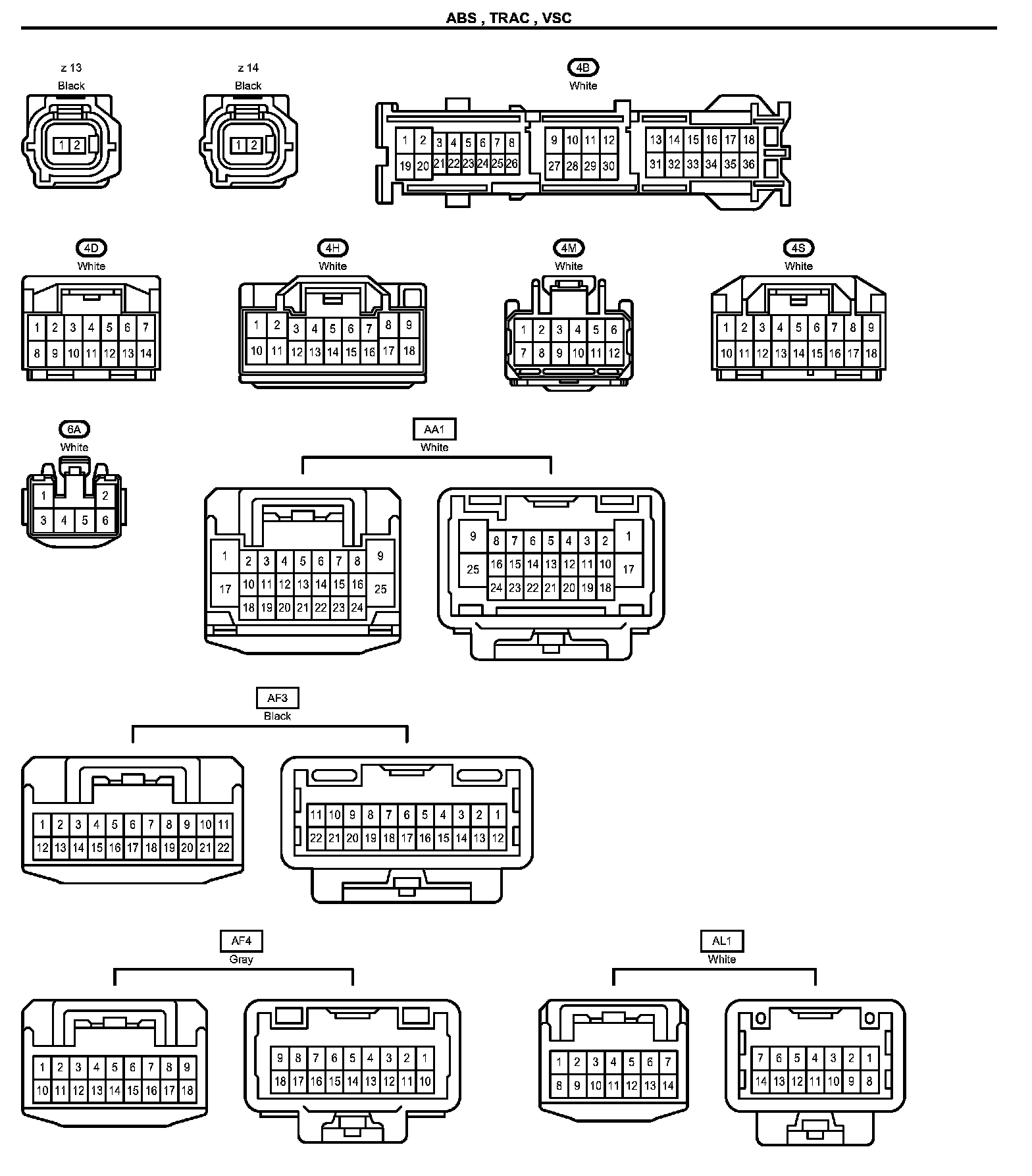

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
