Position of Parts In Body
Position of Parts In Body

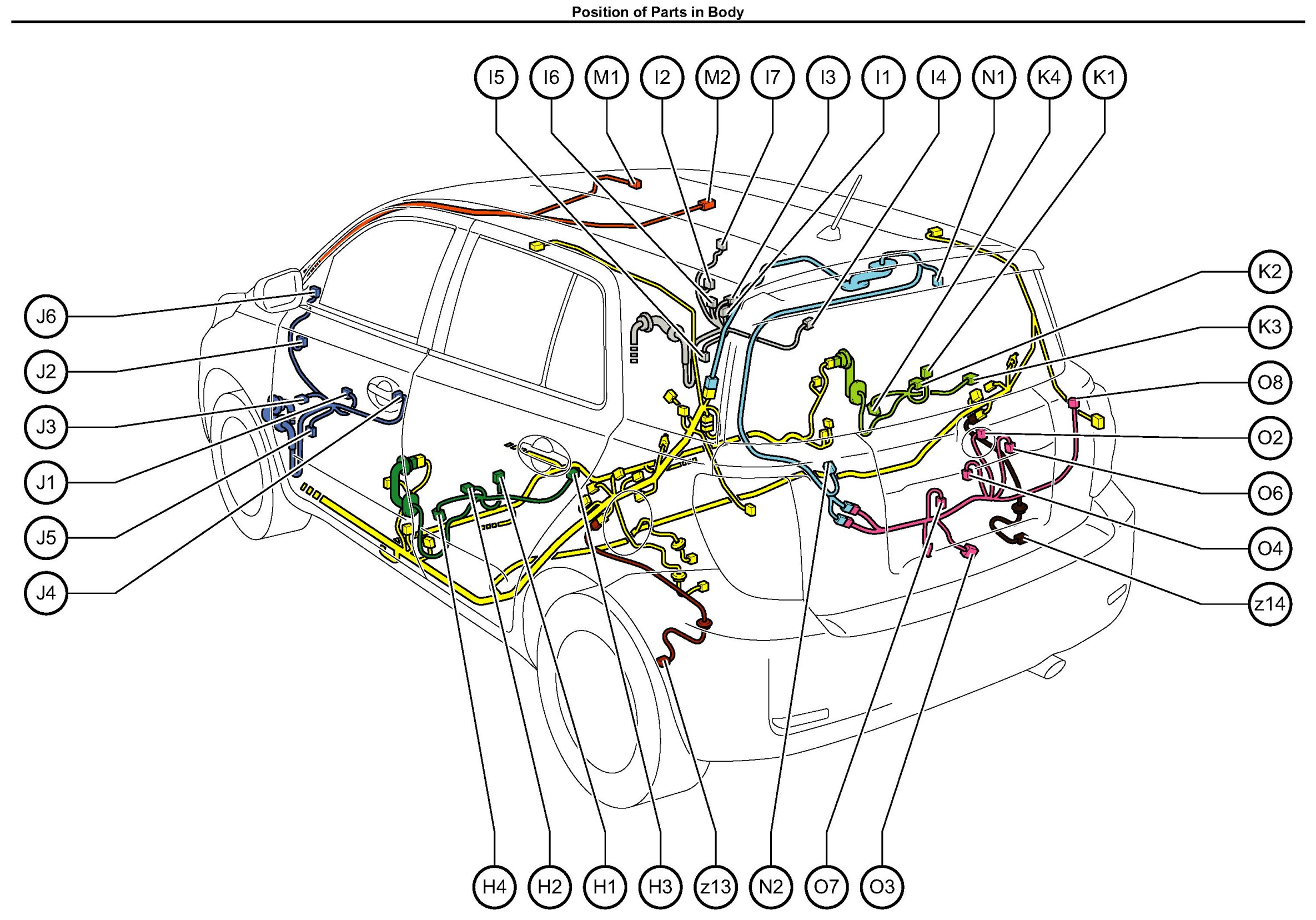

Position Of Parts In Body:

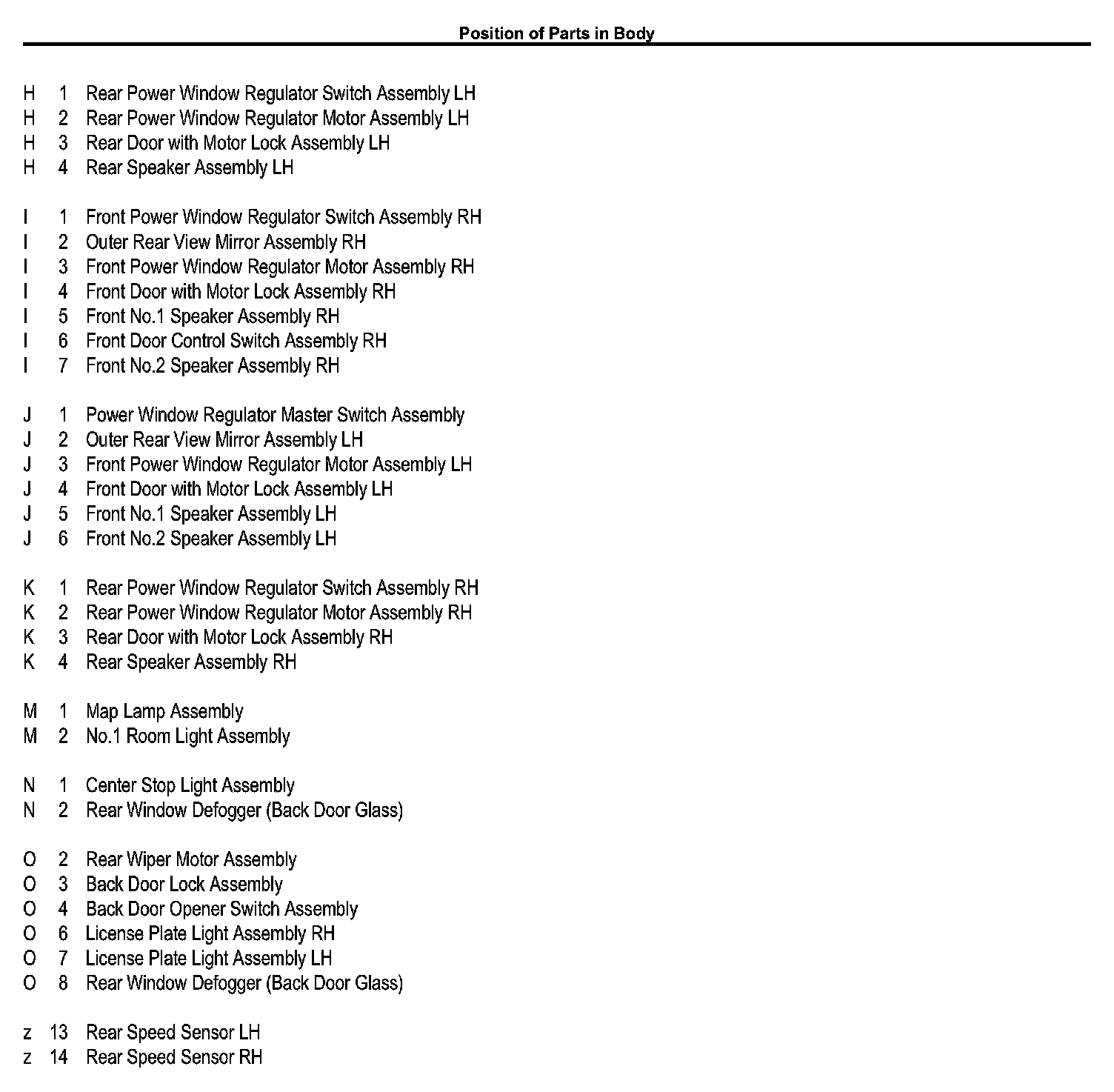

Legend:

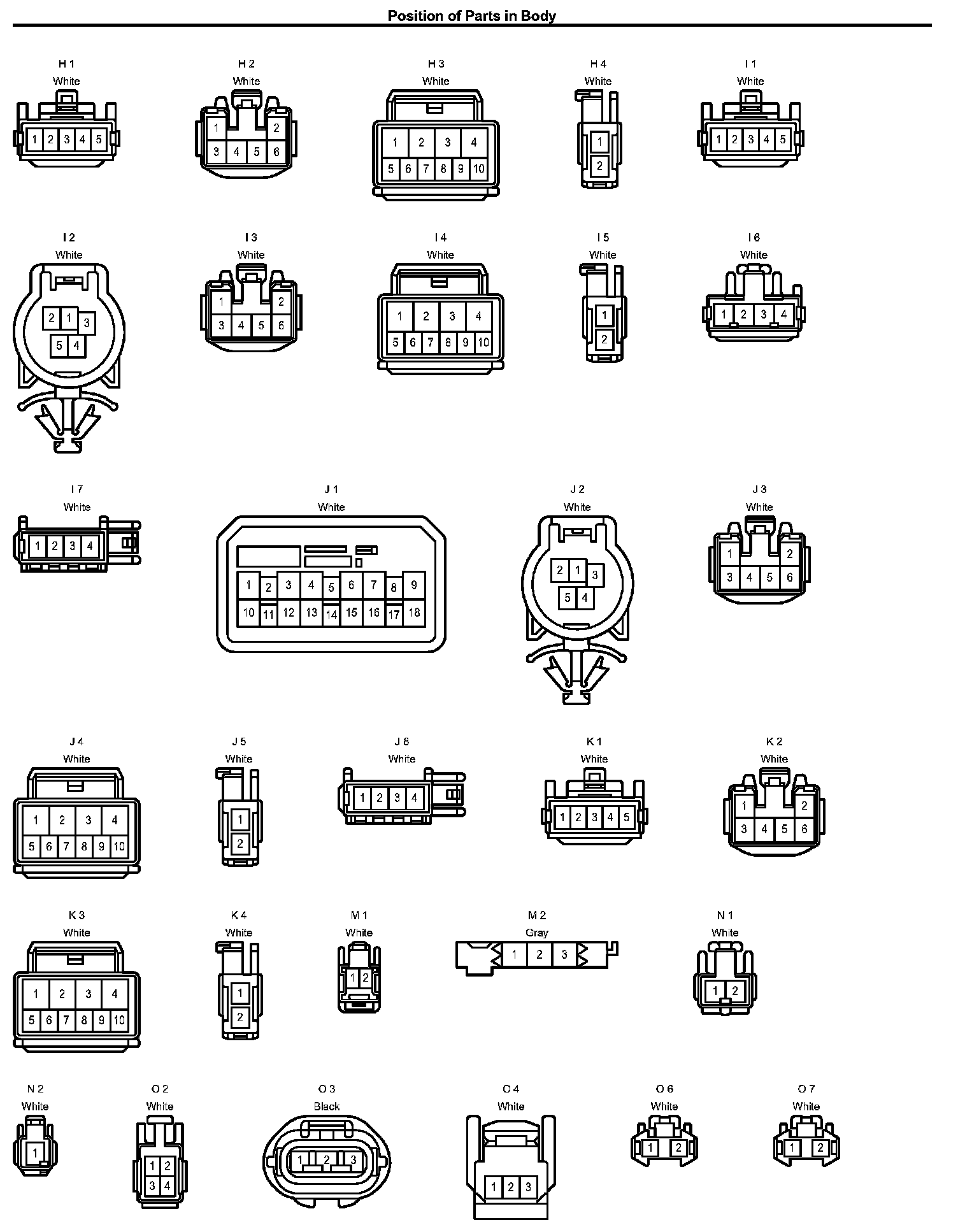

Connector Views:
Position Of Parts In Body:

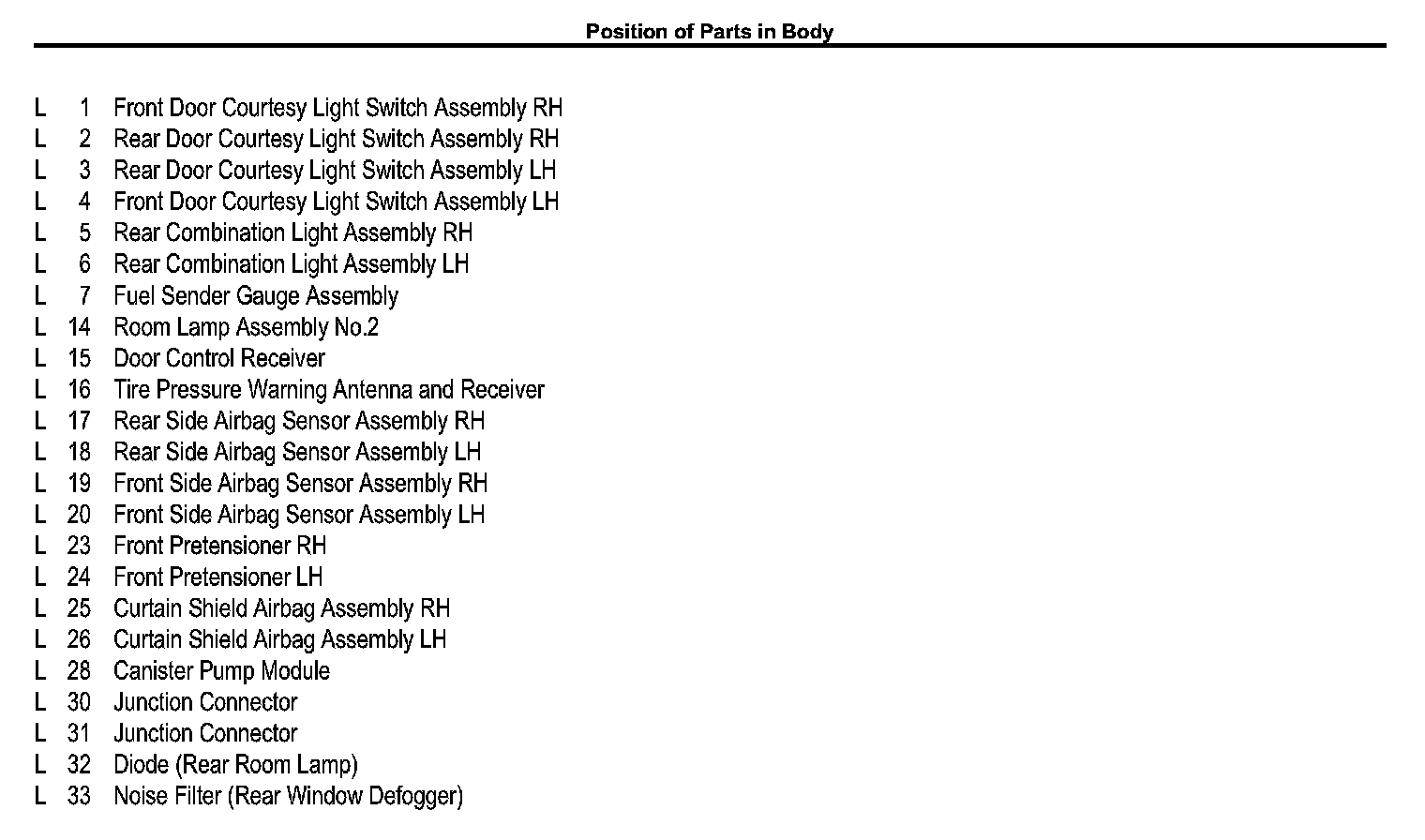

Legend:

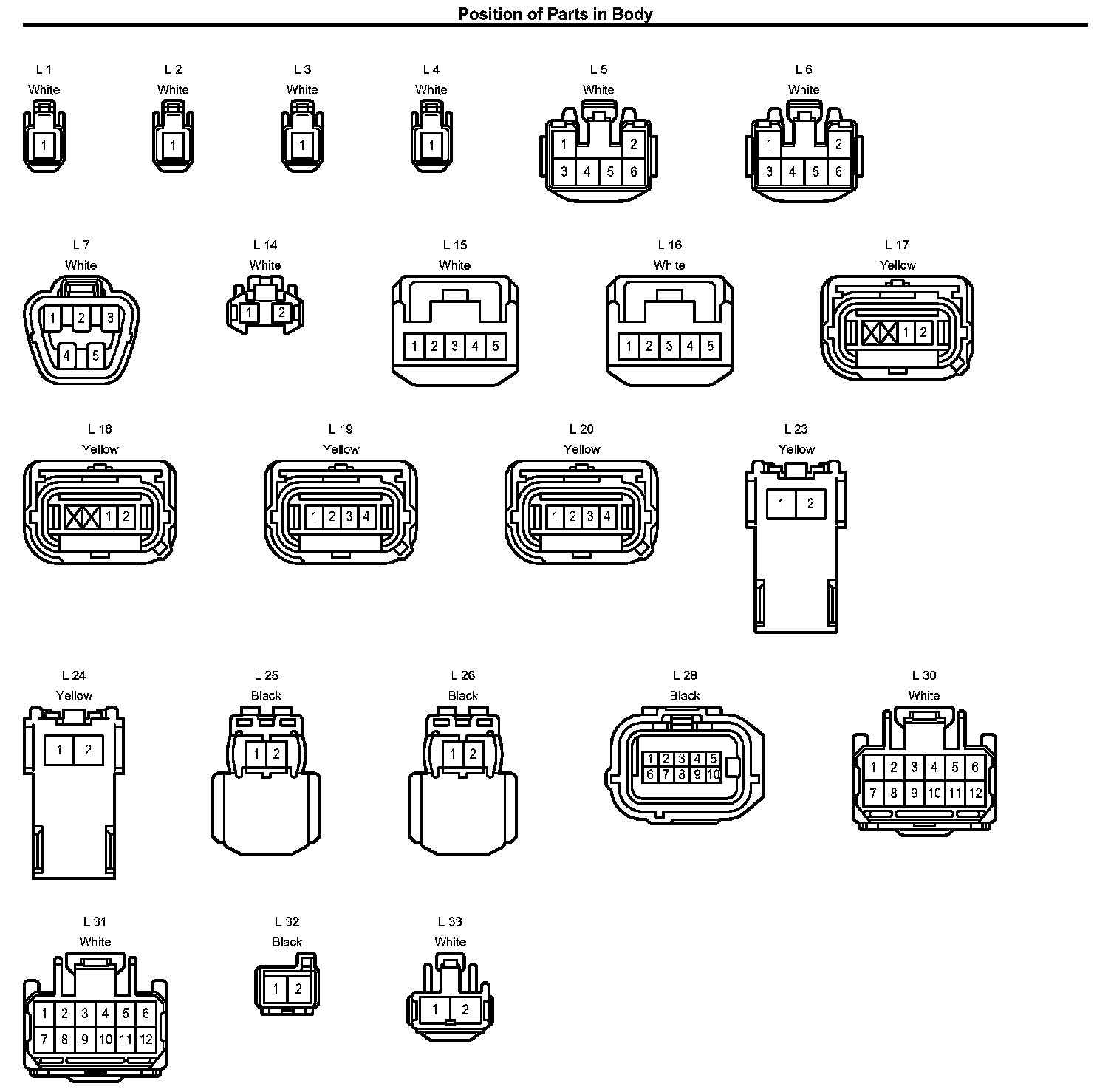

Component Views:
Component Views:
