Home >> Scion >> 2010 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Fail-Safe Chart

Fail-Safe Chart





CRUISE CONTROL: CRUISE CONTROL SYSTEM: FAIL-SAFE CHART

HINT

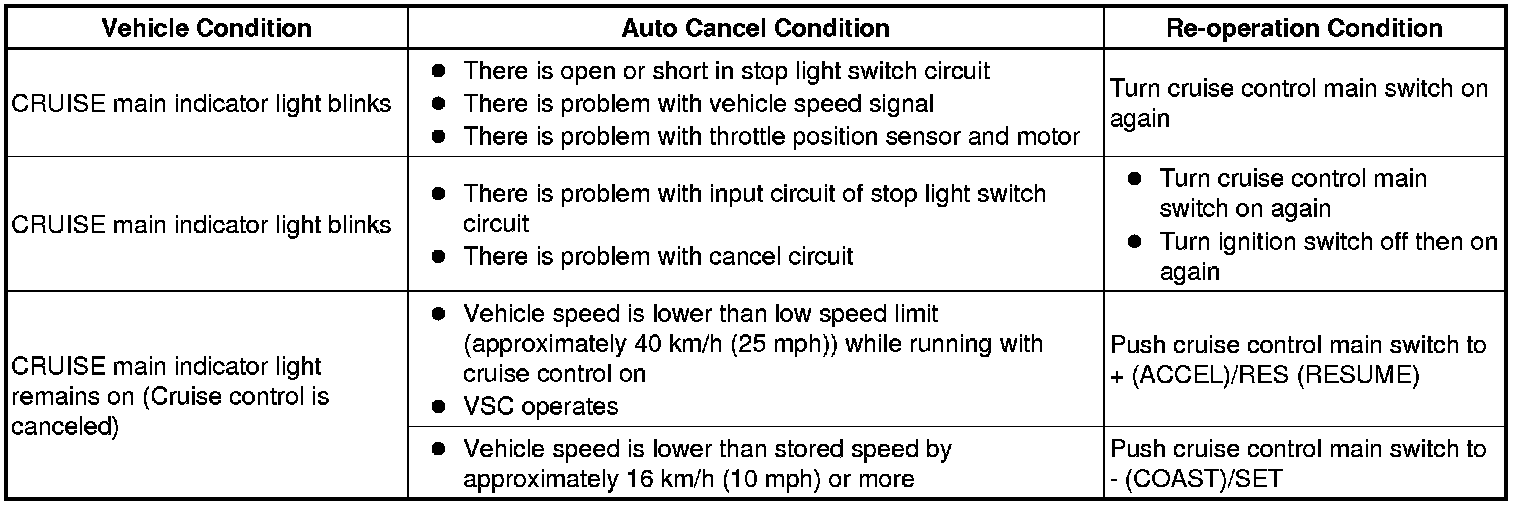

If the following conditions are detected while the cruise control is in operation, the system clears the stored vehicle speed in the ECM and cancels the cruise control operation.
