Removal

SEAT: REAR SEAT ASSEMBLY (for RH Side): REMOVAL

NOTICE:
Always use "TORX" socket wrench E10 when removing the rear seat.

1. REMOVE NO. 1 REAR SEAT LEG COVER

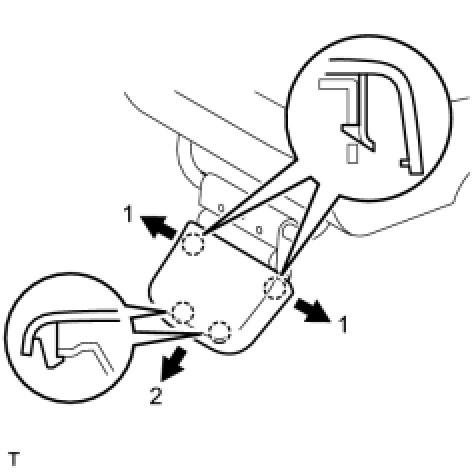

(a) Disengage the 4 claws in the sequence shown in the illustration and remove the No. 1 rear seat leg cover.





2. REMOVE REAR SEAT ASSEMBLY

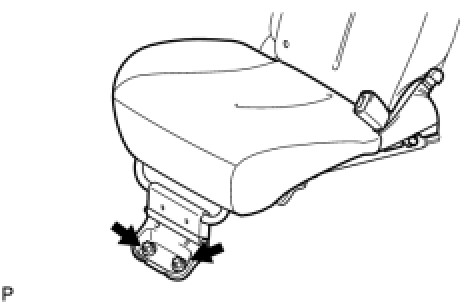

(a) Using "TORX" socket wrench E10, remove the 2 bolts and pull up the rear seat cushion.

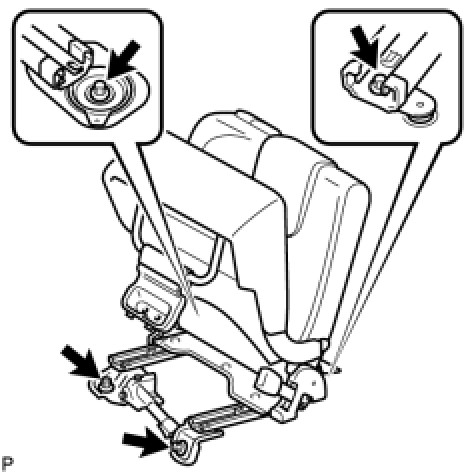

(b) Using "TORX" socket wrench E10, remove the 4 bolts and the rear seat.
