Installation

MIRROR: OUTER REAR VIEW MIRROR GLASS: INSTALLATION

1. INSTALL OUTER MIRROR GLASS

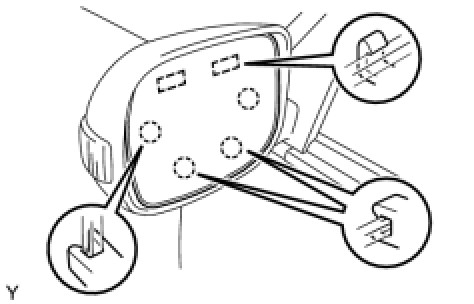

(a) Engage the 2 hooks on the upper part of the outer mirror glass to the outer rear view mirror.





(b) Engage the 4 claws on the lower part of the outer mirror glass to the outer rear view mirror.

(c) Remove the protective tape.
