Door Control Switch

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

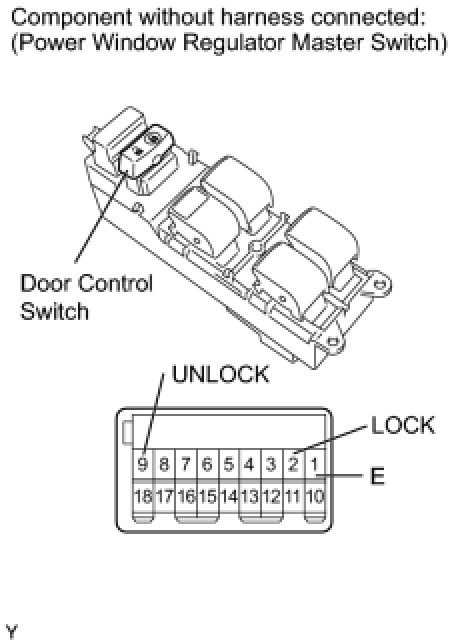

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)





(a) Check the resistance of the door control switch.

(1) Measure the resistance according to the value(s) in the table below.

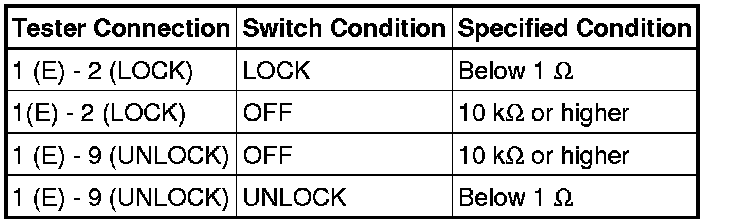

Standard resistance:





(2) If the result is not as specified, replace the power window regulator master switch assembly.

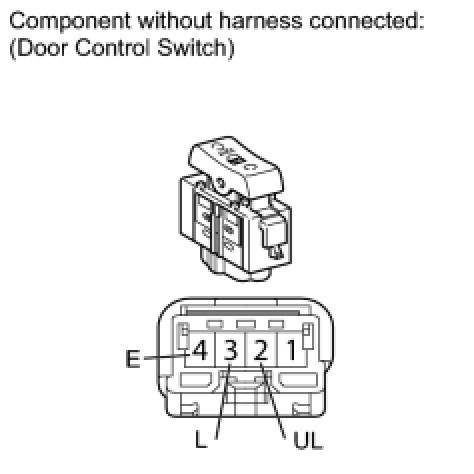

2. INSPECT DOOR CONTROL SWITCH (for Front Passenger Side)

(a) Check the resistance of the door control switch.





(1) Measure the resistance according to the value(s) in the table below.

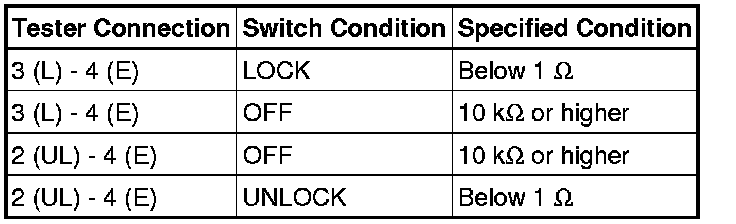

Standard resistance:





(2) If the result is not as specified, replace the door control switch.
