DOOR LOCK: UNLOCK WARNING SWITCH: INSTALLATION

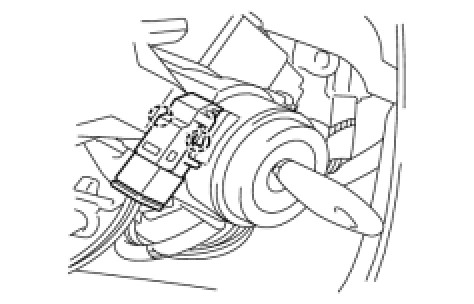

1. INSTALL UNLOCK WARNING SWITCH





(a) Engage the 2 claws and install the unlock warning switch.

(b) Connect the connector.

2. INSTALL STEERING COLUMN UPPER COVER Installation

3. INSTALL STEERING COLUMN LOWER COVER Installation
