Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: INSPECTION

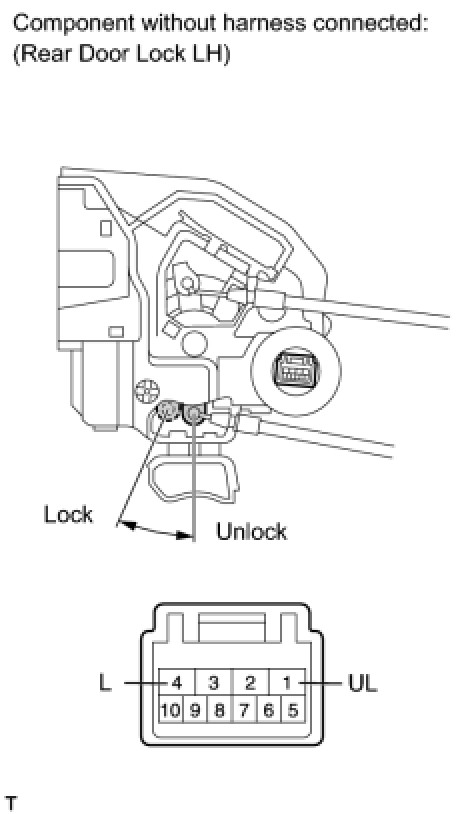

1. INSPECT REAR DOOR LOCK LH





(a) Check the operation.

(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1 (UL), then check that the lock locks.

OK:

Locks

(2) If the result is not as specified, replace the rear door lock.

(3) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L), then check that the lock unlocks.

OK:

Unlocks

(4) If the result is not as specified, replace the rear door lock.

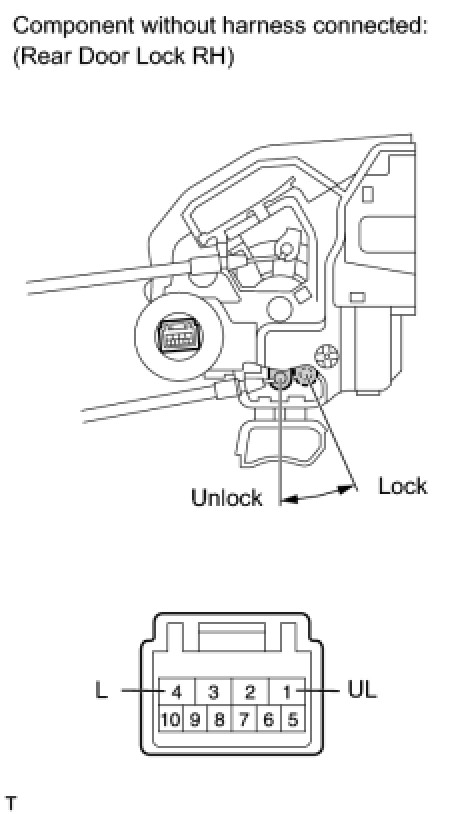

2. INSPECT REAR DOOR LOCK RH





(a) Check the operation.

(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1 (UL), then check that the lock locks.

OK:

Locks

(2) If the result is not as specified, replace the rear door lock.

(3) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L), then check that the lock unlocks.

OK:

Unlocks

(4) If the result is not as specified, replace the rear door lock.
