Component Tests and General Diagnostics

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSPECTION

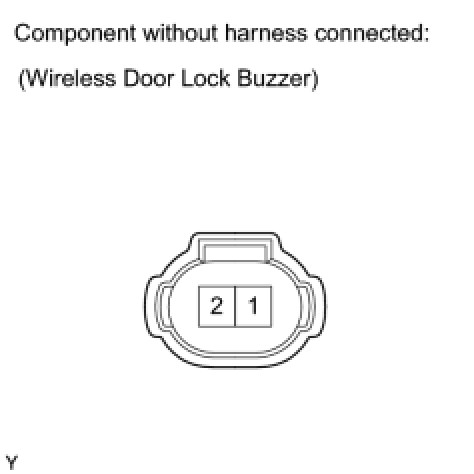

1. INSPECT WIRELESS DOOR LOCK BUZZER





(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(2) If the result is not as specified, replace the wireless door lock buzzer.
