Installation

INTERIOR: REAR CONSOLE BOX: INSTALLATION

1. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY





(a) Engage the 4 claws and install the rear console box.

(b) Install the 3 bolts.

(c) Connect the clamp.

2. INSTALL CONSOLE BOX CARPET





(a) Install the console box carpet.

3. INSTALL REAR CONSOLE BOX COVER





(a) Engage the 9 claws and install the rear console box cover.

4. INSTALL UPPER CONSOLE PANEL





(a) Engage the 2 clips and the 6 claws and install the upper console panel.

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)





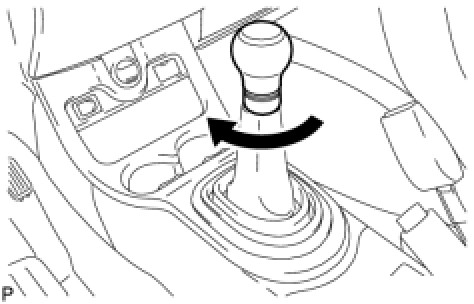

(a) Install the shift lever knob.
