Installation

EXTERIOR: NAME PLATE: INSTALLATION

1. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Clean the attachment surface.





(1) Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.

HINT
Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

(2) Using a piece of cloth, rub the double-sided adhesive tape off the back door panel while it is hot from the infrared light.

NOTICE:
Installing the No. 2 luggage compartment door name plate while any double-sided tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.

(3) Using a non-residue solvent, clean the attachment surface.

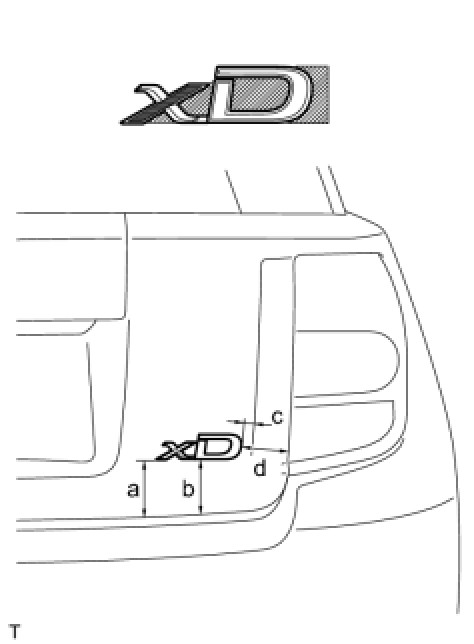

(b) Install a new No. 2 luggage compartment door name plate as shown in the illustration.

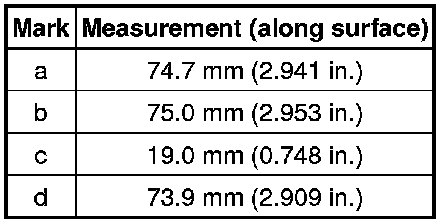

Installation position:





NOTICE:
Install the No. 2 luggage compartment door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the back door panel and the No. 2 luggage compartment door name plate up to 20 to 30°C (68 to 86°F) and install the No. 2 luggage compartment door name plate.

2. INSTALL SYMBOL EMBLEM

(a) Clean the attachment surface.





(1) Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.

HINT
Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

(2) Using a piece of cloth, rub the remaining double-sided adhesive tape off the back door panel while it is hot from the infrared light.

NOTICE:
Installing the symbol emblem with any double-sided tape remaining on the back door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.

(3) Using a non-residue solvent, clean the attachment surface.

(b) Insert the 2 pins into the back door panel and install the symbol emblem.

NOTICE:
Install the symbol emblem in an environment where the ambient temperature is over 20 °C (68°F). If it is below 20°C (68°F), using an infrared light, heat the back door panel and the symbol emblem up to 20 to 30°C (68 to 86°F) and install the symbol emblem.

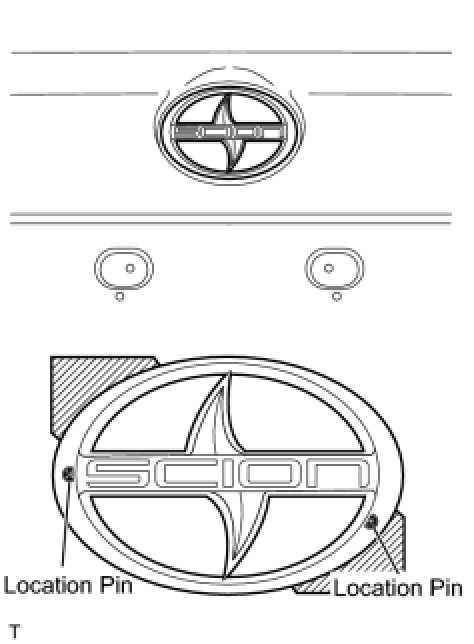

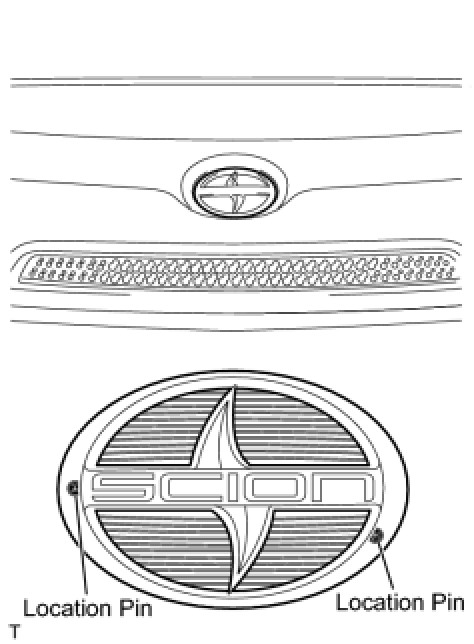

3. INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

(a) Clean the attachment surface.





(1) Using an infrared light, heat the double-sided adhesive tape remaining on the engine hood.

HINT
Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

(2) Using a piece of cloth, rub the remaining double-sided adhesive tape off the engine hood while it is hot from the infrared light.

NOTICE:
Installing the radiator grille (or front panel) emblem with any double-sided tape remaining on the engine hood may cause adhesion failure. Therefore, completely remove the double-sided tape.

(3) Using a non-residue solvent, clean the attachment surface.

(b) Insert the 2 pins into the engine hood and install the radiator grille (or front panel) emblem.

NOTICE:
Install the radiator grille (or front panel) emblem in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the engine hood and the radiator grille (or front panel) emblem up to 20 to 30°C (68 to 86°F) and install the radiator grille (or front panel) emblem.
