Home >> Scion >> 2010 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Service and Repair >> Removal and Replacement

Removal and Replacement

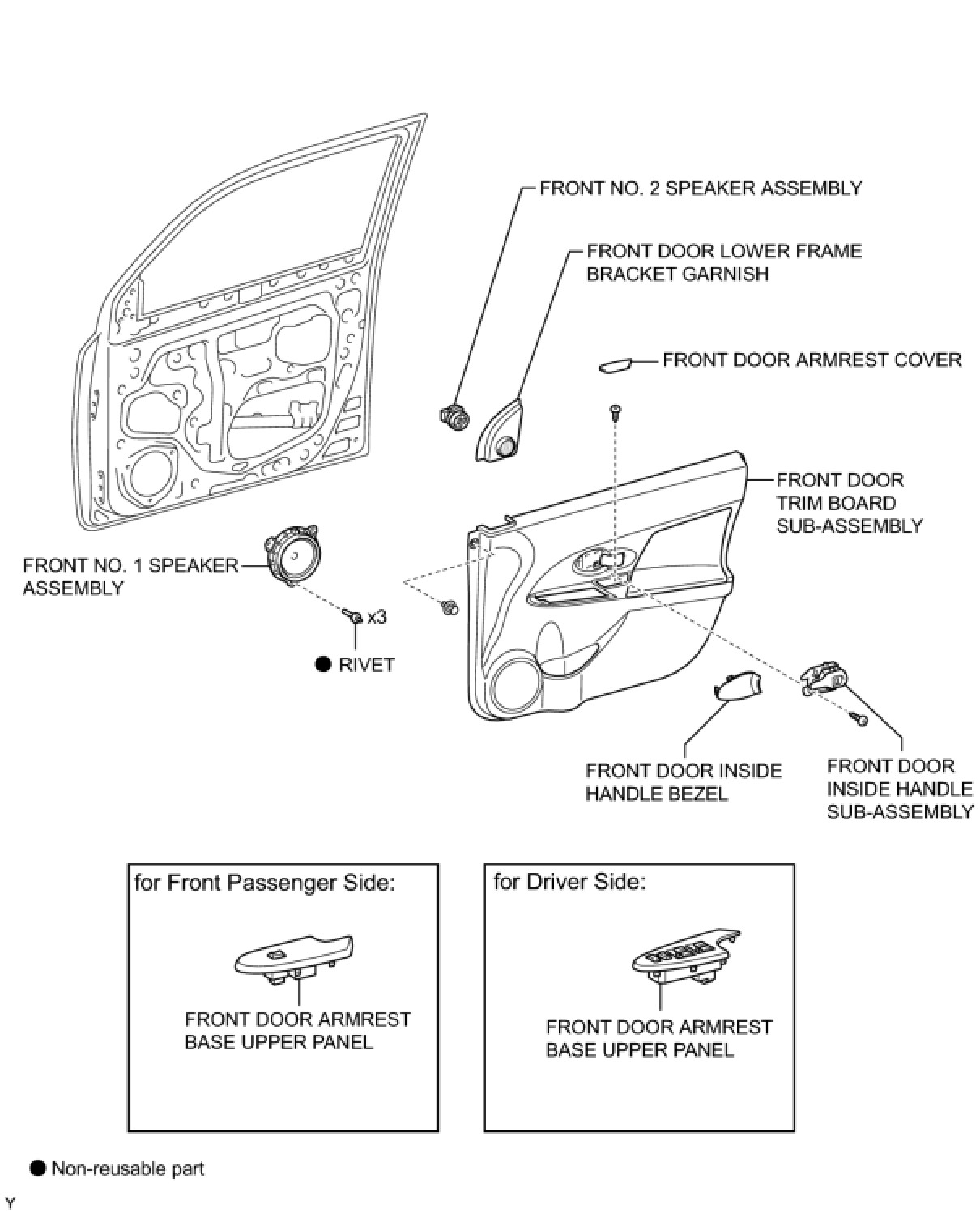

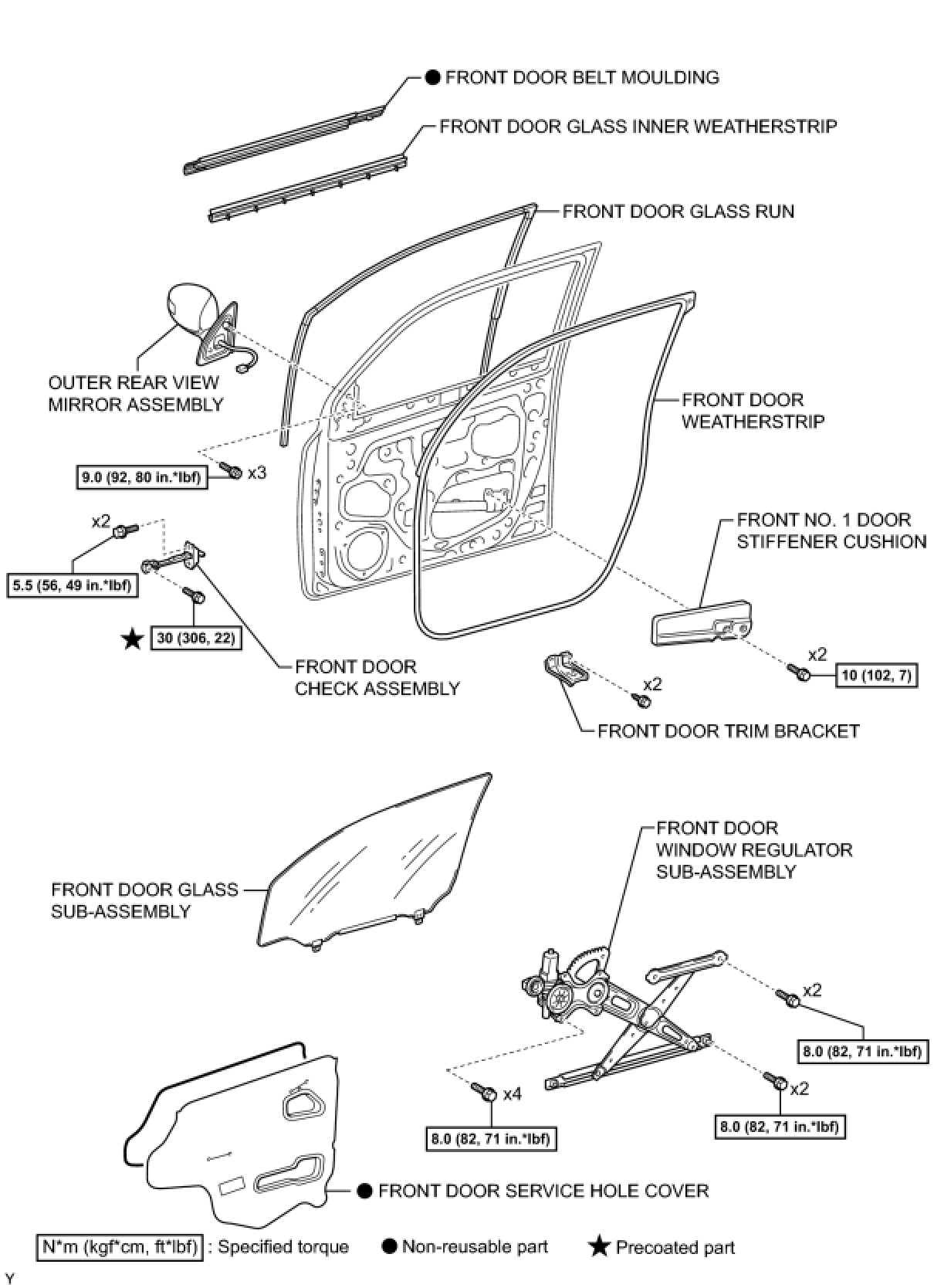

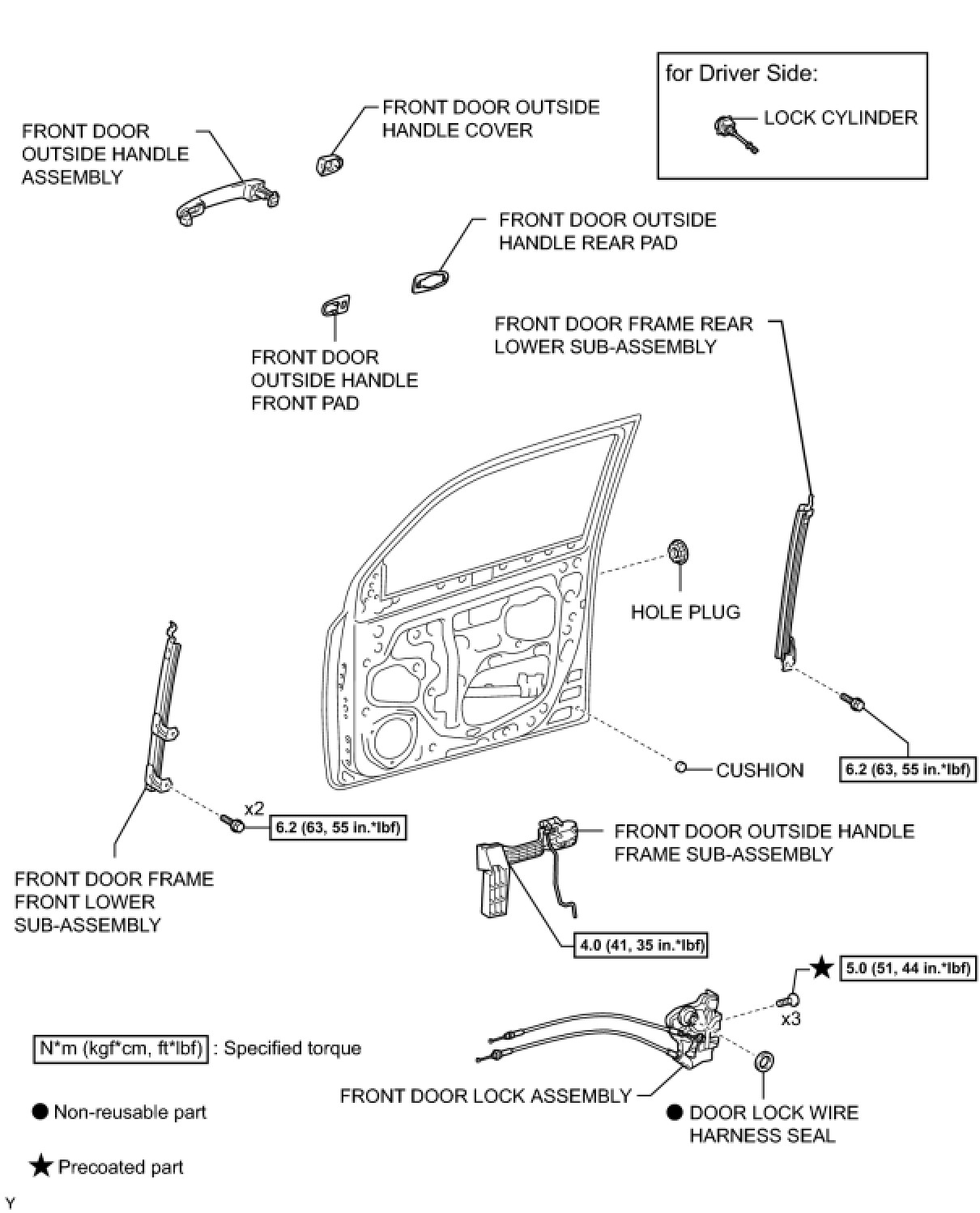

ENGINE HOOD / DOOR: FRONT DOOR: COMPONENTS
