Removal

EXTERIOR: REAR BUMPER: REMOVAL

1. REMOVE NO. 1 FLOOR UNDER COVER

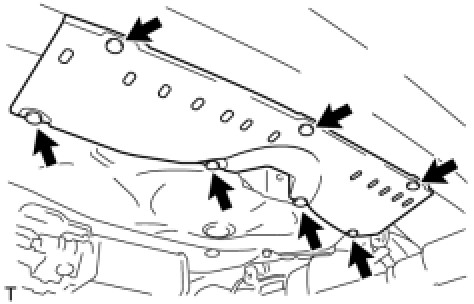

(a) Remove the 7 clips and No. 1 floor under cover.





2. REMOVE REAR BUMPER COVER

(a) Using a "TORX" socket wrench T30, remove the 2 rear bumper cushions.

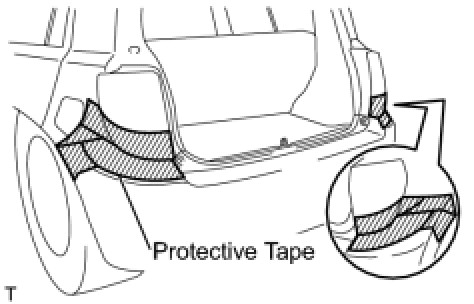

(b) Apply protective tape as shown in the illustration.

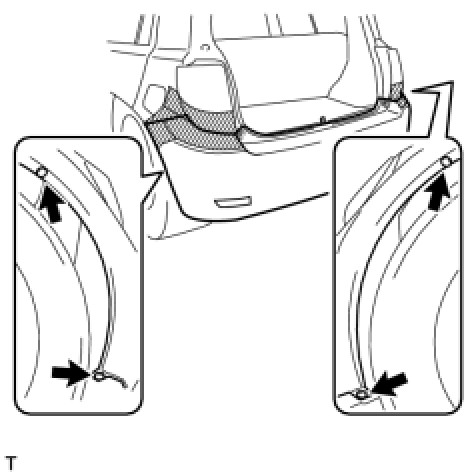

(c) Remove the 4 clips.





(d) Disengage the 8 claws and remove the rear bumper cover.
