Removal

EXTERIOR: FRONT BUMPER: REMOVAL

1. REMOVE FRONT BUMPER COVER





(a) Apply protective tape, as shown in the illustration.

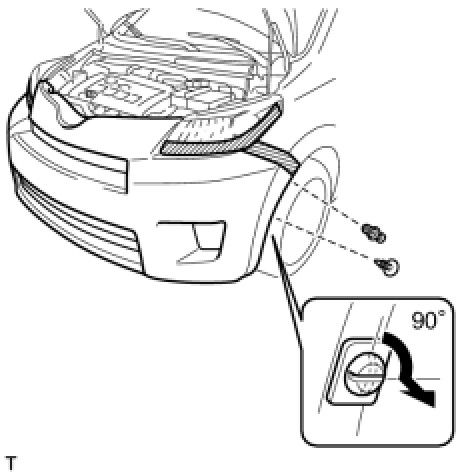

(b) Using a screw driver, remove the pin hold clip.





HINT
Use the same procedure for the RH side and LH side.

(c) Remove the clip.

HINT
Use the same procedure for the RH side and LH side.

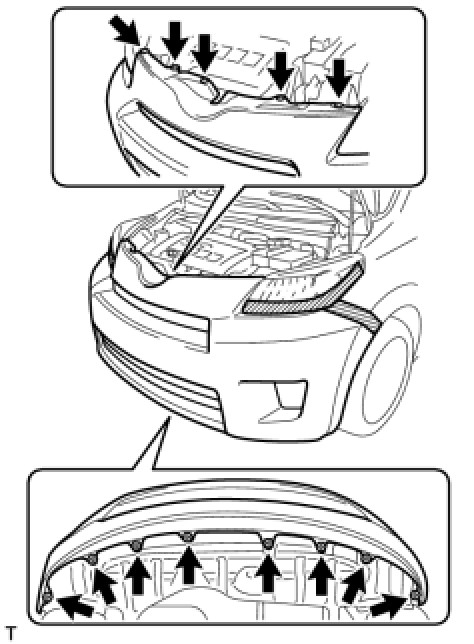

(d) Remove the 8 screws.





(e) Remove the 5 clips.

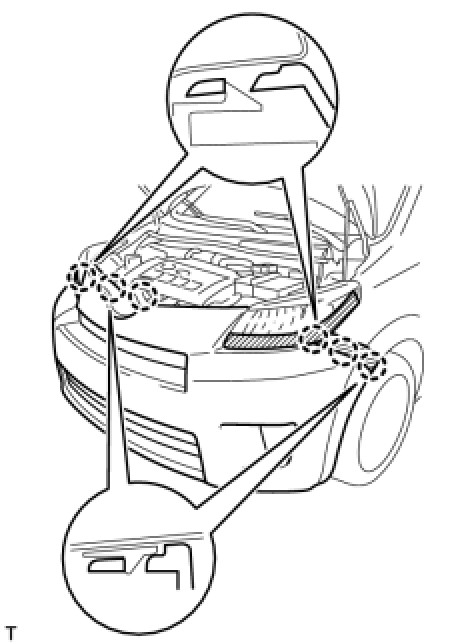

(f) Disengage the 6 claws and remove the front bumper cover.
