P2A00
2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2A00: A/F Sensor Circuit Slow Response (Bank 1 Sensor 1)
P2A00 - A/F Sensor Circuit Slow Response (Bank 1 Sensor 1)

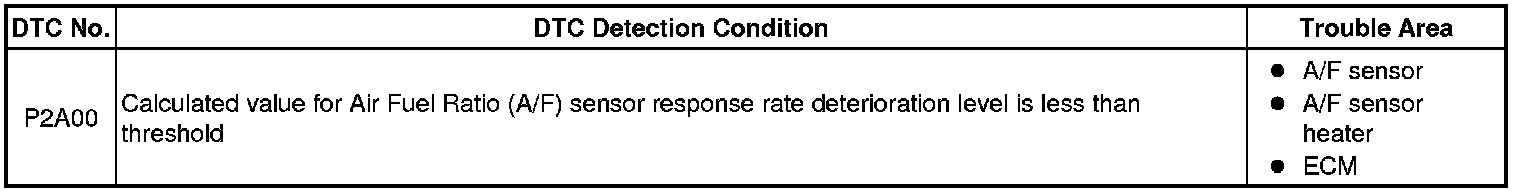

DESCRIPTION
Refer to DTC P2195 P2195.
HINT
- Sensor 1 refers to the sensor mounted in front of the Three-Way Catalytic Converter (TWC) and located near the engine assembly.
MONITOR DESCRIPTION
After engine is warmed up, the ECM performs air-fuel ratio feedback control to maintain the air-fuel ratio at the stoichiometric level. In addition, active A/F control is performed for approximately 10 seconds after preconditions are met in order to measure the Air Fuel Ratio (A/F) sensor response rate. During active A/F control, the ECM forcibly increases and decreases the injection volume a certain amount, based on the stoichiometric air-fuel ratio learned during normal air-fuel ratio control, and measures the A/F sensor response rate. The ECM receives a signal from the A/F sensor while performing active A/F control and uses it to calculate the A/F sensor response rate deterioration level.
If the value for A/F sensor response rate deterioration level is less than the threshold, the ECM interprets this as a malfunction and sets the DTC.

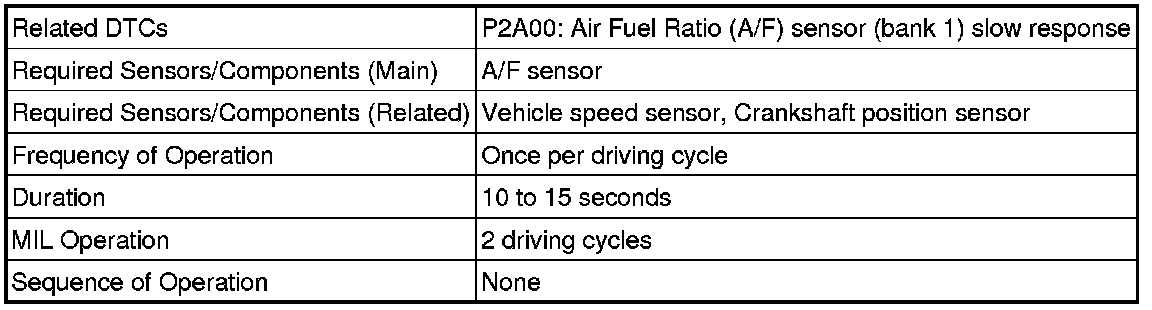

MONITOR STRATEGY

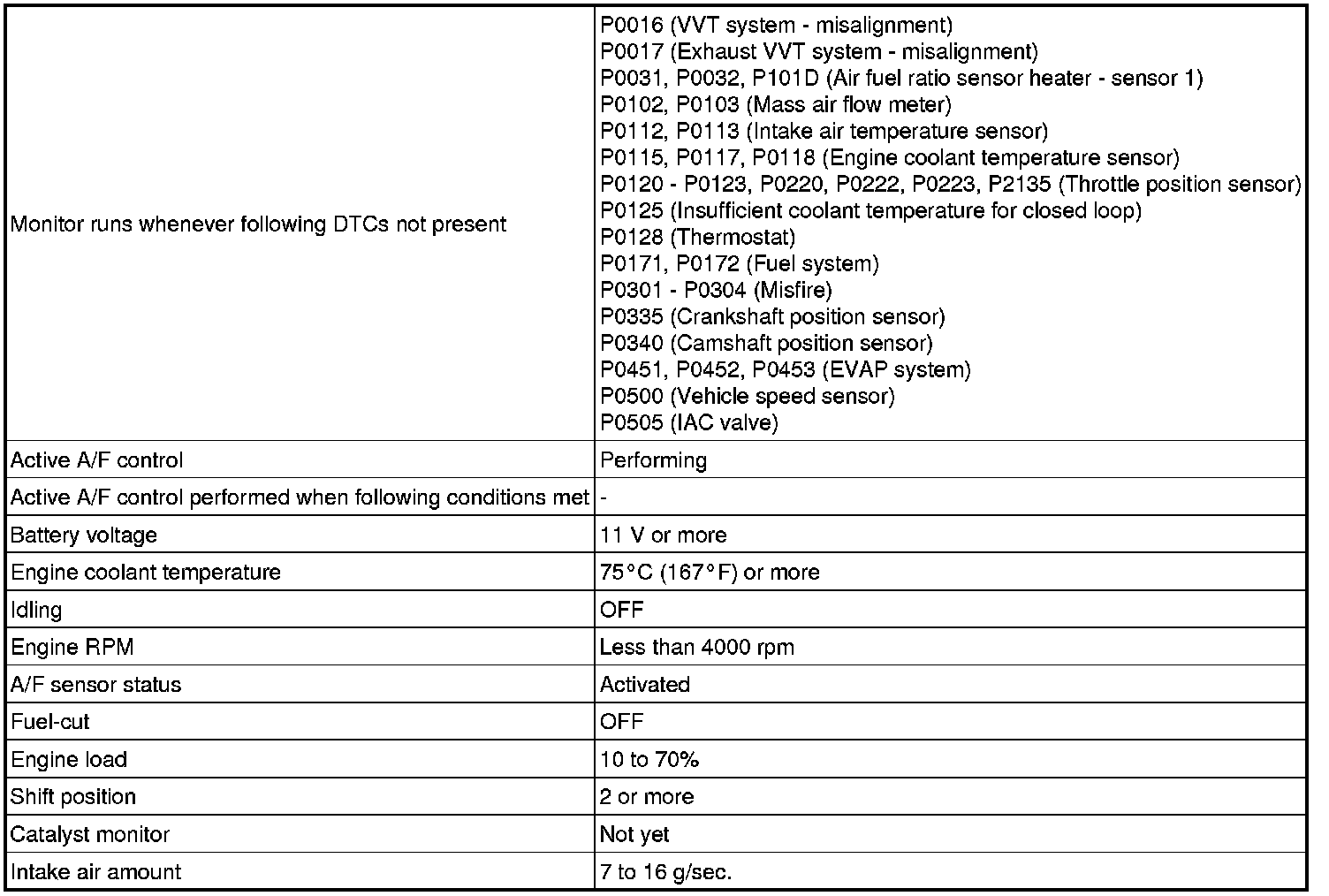

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
MONITOR RESULT
Refer to CHECKING MONITOR STATUS Mode 6 Data.

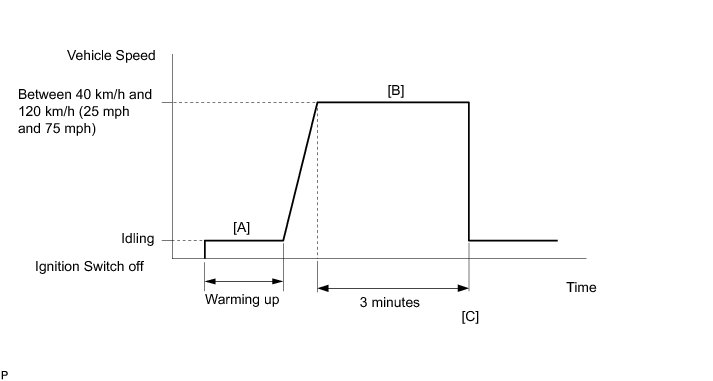

CONFIRMATION DRIVING PATTERN
HINT
This confirmation driving pattern is used in the "Perform Confirmation Driving Pattern" procedure of the following diagnostic troubleshooting procedure.
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream ON.
- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).
- Turn the ignition switch off and wait for at least 30 seconds.
- Turn the ignition switch to ON and turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Monitor / O2 Sensor / Details.
- Check that RES RATE B1S1 is Incomplete.
- Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or higher) [A].
- Drive the vehicle at a constant speed between 40 and 120 km/h (25 and 75 mph) for 3 minutes [B].
NOTICE:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- Check the monitor result values on the Techstream by entering the following menus: Powertrain / Engine and ECT / Monitor / O2 Sensor / Details / RES RATE B1S1.
- If the values indicated on the Techstream do not change, perform READINESS MONITOR DRIVE PATTERN for the A/F sensor and heated oxygen sensor Monitors, Trips, Drive Cycles and Readiness Codes.
- Note the value of the Monitor Result.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].
- Read the Pending DTCs.
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P2A00.

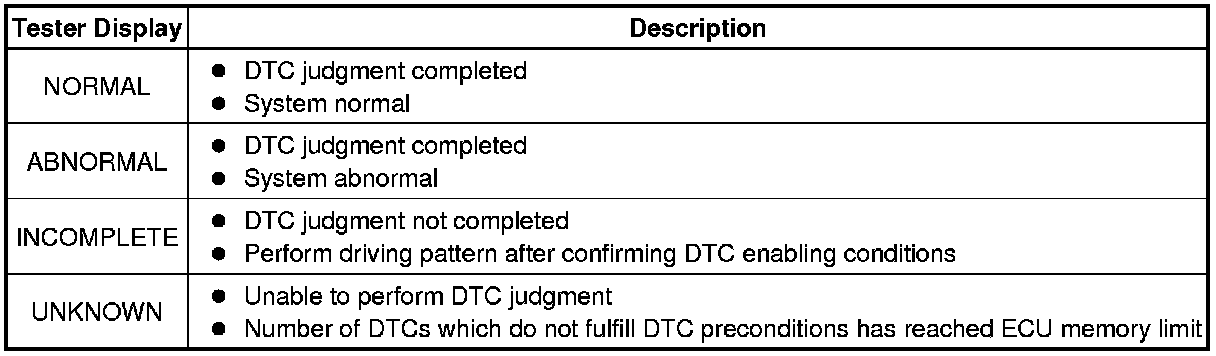

- Check the DTC judgment result.
HINT
If the judgment result shows ABNORMAL, the system has a malfunction.
- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P2195 P2195.
INSPECTION PROCEDURE
HINT
Malfunctioning areas can be identified by performing the Control the Injection Volume for A/F sensor function provided in the Active Test. The Control the Injection Volume for A/F sensor function can help to determine whether the Air Fuel Ratio (A/F) sensor, Heated Oxygen (HO2) sensor and other potential trouble areas are malfunctioning.
The following instructions describe how to conduct the Control the Injection Volume for A/F sensor operation using the Techstream.
- Connect the Techstream to the DLC3.
- Start the engine.
- Turn the Techstream on.
- Warm up the engine at an engine speed of 2500 rpm for approximately 90 seconds.
- Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F sensor.
- Perform the Active Test operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume.)

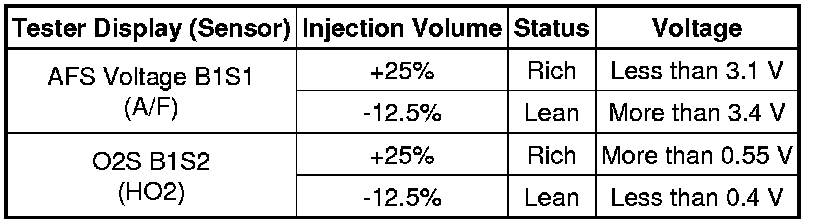

- Monitor the output voltages of the A/F and HO2 sensors (AFS Voltage B1S1 and O2S B1S2) displayed on the tester.
HINT
- The Control the Injection Volume for A/F sensor operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.
NOTICE:
The Air Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.
- Following the Control the Injection Volume for A/F sensor procedure enables technicians to check and graph the voltage outputs of both the A/F and HO2 sensors.
- To display the graph, Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume for A/F Sensor / A/F Control System / AFS Voltage B1S1 and O2S B1S2; then press the graph button on the Data List view.
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
HINT
- DTC P2A00 may be also set, when the air-fuel ratio is stuck rich or lean.
- A low A/F sensor voltage could be caused by a rich air-fuel mixture. Check for conditions that would cause the engine to run rich.
- A high A/F sensor voltage could be caused by a lean air-fuel mixture. Check for conditions that would cause the engine to run lean.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2A00)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read the DTCs.
Result:
HINT
If any DTCs other than P2A00 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART Engine Control System - SFI System
A -- Continue to next step.
2. INSPECT AIR FUEL RATIO SENSOR (HEATER RESISTANCE) P0031
NG -- REPLACE AIR FUEL RATIO SENSOR Removal
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM) P2237
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. PERFORM CONFIRMATION DRIVING PATTERN
(a) Drive the vehicle to Confirmation Driving Pattern.
NEXT -- Continue to next step.
5. CHECK WHETHER DTC OUTPUT RECURS (DTC P2A00)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Refer to the confirmation driving pattern for P2A00.
(e) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
(f) Read the pending DTCs.
Result:
B -- CHECK FOR INTERMITTENT PROBLEMS
A -- Continue to next step.
6. REPLACE AIR FUEL RATIO SENSOR
(a) Replace the air fuel ratio sensor Removal.
NEXT -- Continue to next step.
7. PERFORM CONFIRMATION DRIVING PATTERN
(a) Drive the vehicle to Confirmation Driving Pattern.
NEXT -- Continue to next step.
8. CHECK WHETHER DTC OUTPUT RECURS (DTC P2A00)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Refer to the confirmation driving pattern for P2A00.
(e) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
(f) Read the pending DTCs.
Result:
B -- CHECK ENGINE TO DETERMINE CAUSE OF EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO
A -- END
