U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2714: Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT)
P2714 - Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT)
DESCRIPTION
The shift solenoid valve SLT controls the transmission line pressure for smooth transmission operation based on signals from the throttle position sensor and the vehicle speed sensor. The ECM adjusts the duty ratio (*) of the shift solenoid valve SLT to control hydraulic line pressure coming from the primary regulator valve. Appropriate line pressure assures smooth shifting with varying engine outputs.
(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then
Duty Ratio = A/(A + B) x 100 (%)

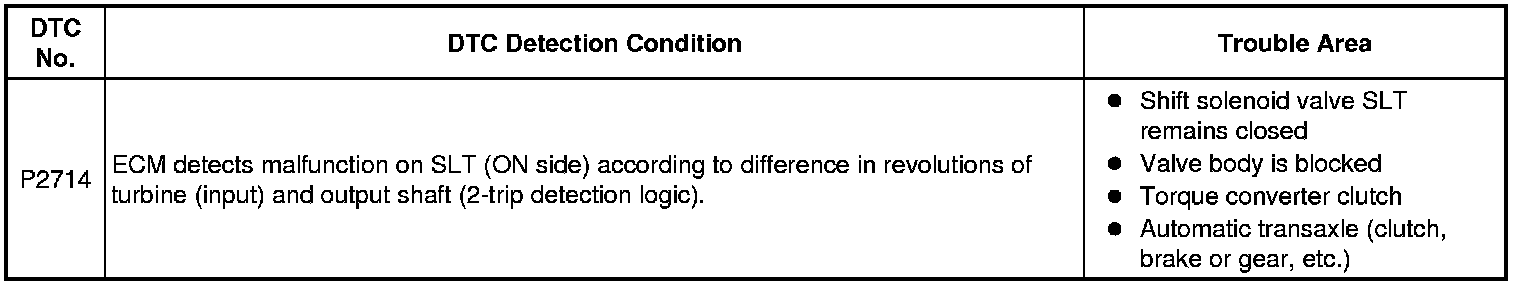

MONITOR DESCRIPTION
In any forward position, when the difference between the revolutions of the turbine and output shaft exceeds the specified value (varies with output speed) determined by the ECM, the ECM illuminates the MIL and stores the DTC.
When shift solenoid valve SLT remains on, the oil pressure goes down and the clutch engagement force decreases.
NOTICE:
If you continue driving under these conditions, the clutch will burn out and the vehicle will no longer be drivable.

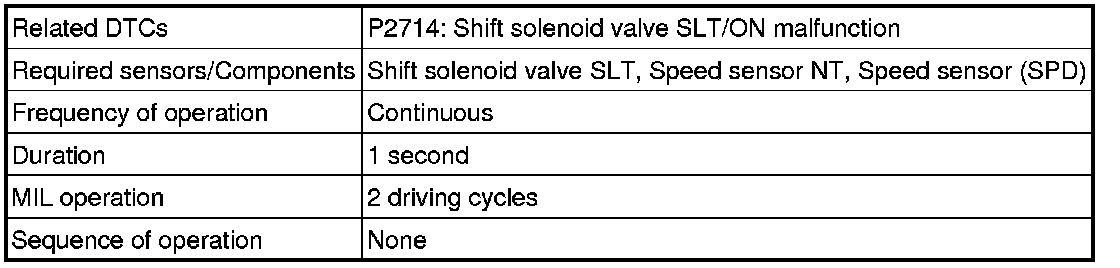

MONITOR STRATEGY

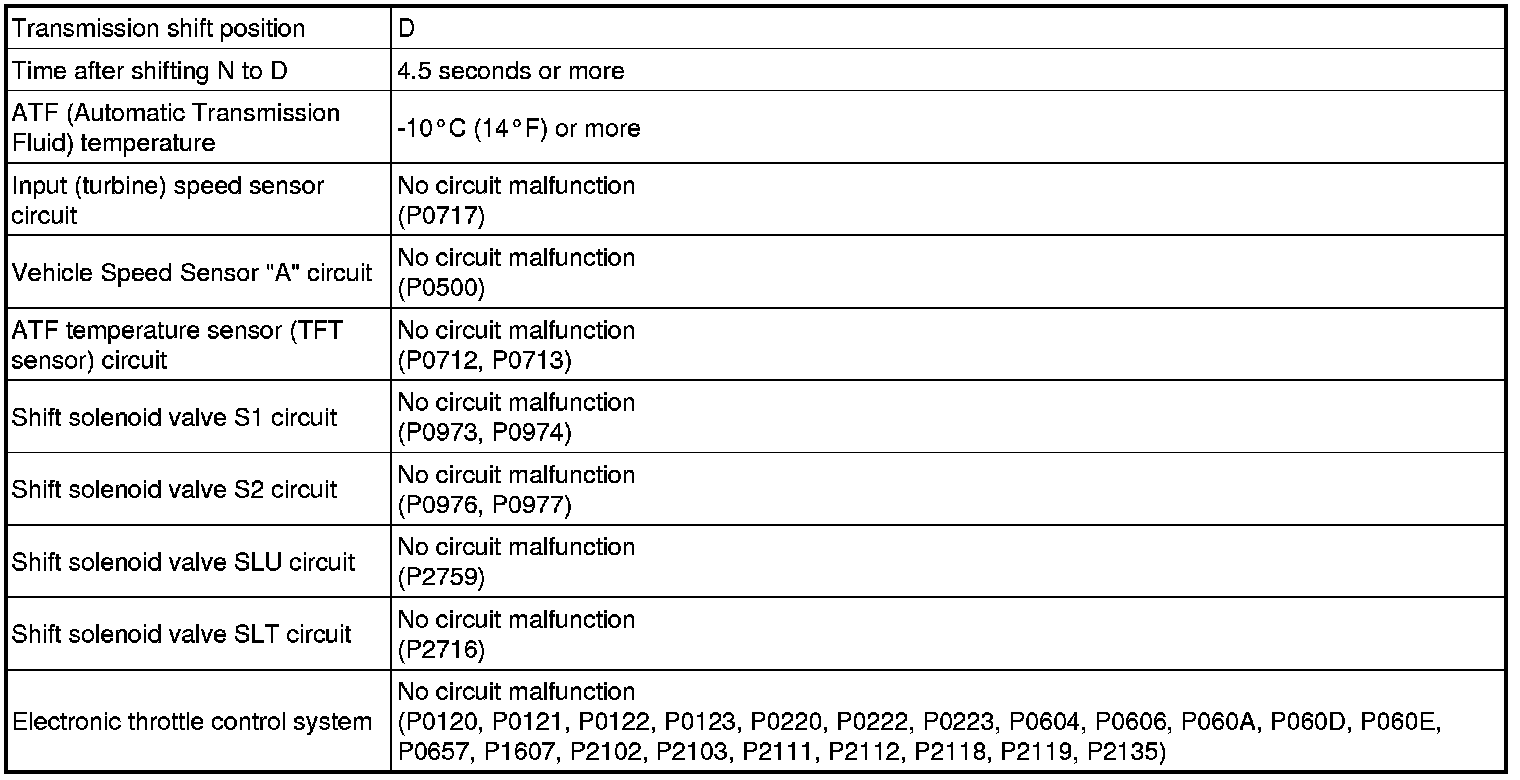

TYPICAL ENABLING CONDITIONS
The following conditions are common to ON malfunctions (A), (B), (C) and (D).

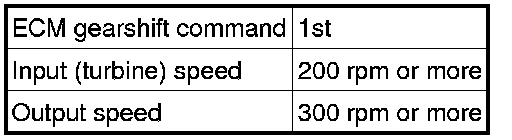

ON malfunction (A)
ON malfunction (A):

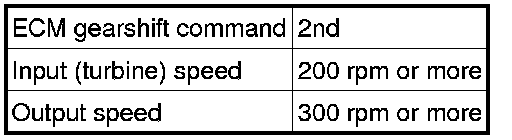

ON malfunction (B)
ON malfunction (B):
ON malfunction (C)
ON malfunction (C):

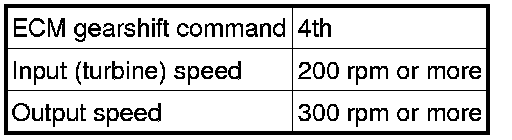

ON malfunction (D)
ON malfunction (D):

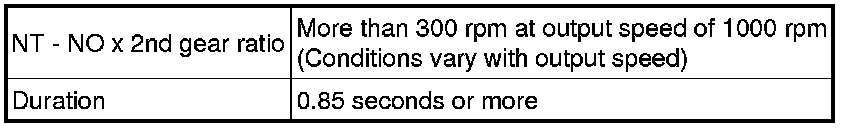

TYPICAL MALFUNCTION THRESHOLDS
[ON malfunction]
- Detection condition: Total accumulated time of ON malfunctions (A), (B), (C) and (D) is 1 second or more

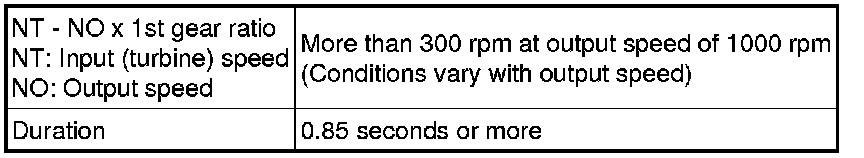

ON malfunction (A)
ON malfunction (A):
ON malfunction (B)
ON malfunction (B):

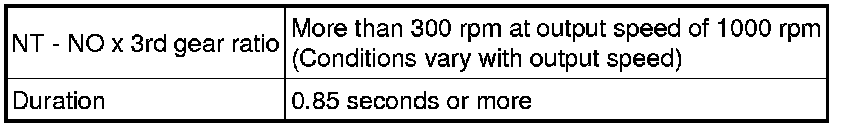

ON malfunction (C)
ON malfunction (C):
ON malfunction (D)
ON malfunction (D):
INSPECTION PROCEDURE
NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear.
HINT
Using a Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
1. PERFORM ACTIVE TEST
(a) Warm up the engine.
(b) Turn the ignition switch off.
(c) Connect the Techstream to the DLC3.
(d) Turn the ignition switch to ON.
(e) Turn the Techstream on.
(f) Enter the following menus: Powertrain / Engine and ECT / Active Test.

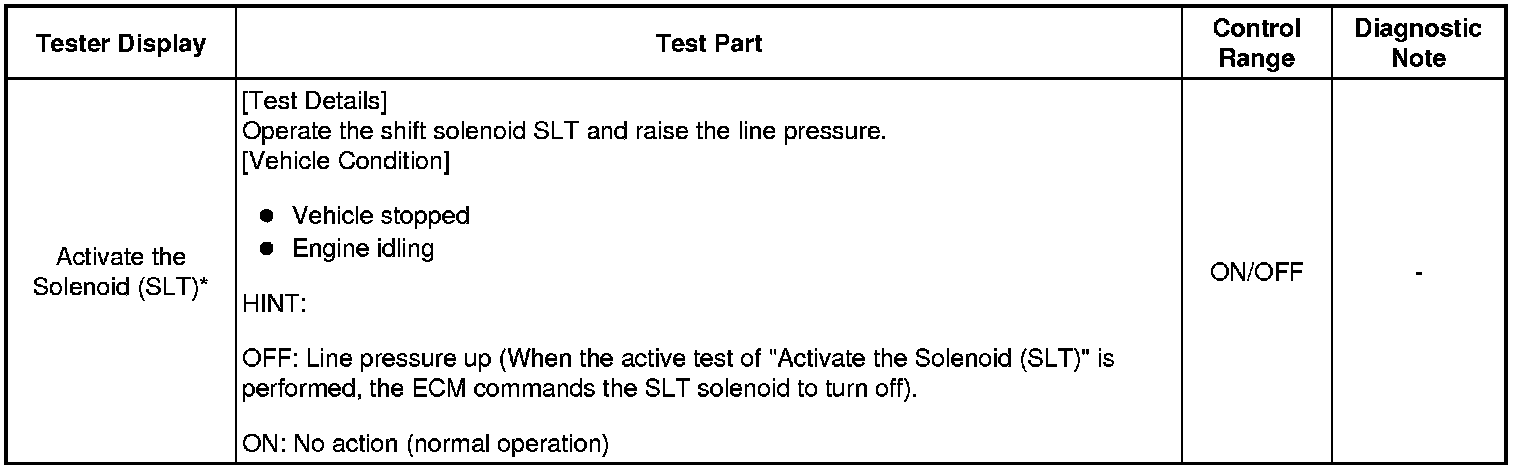

(g) According to the display on the Techstream, perform the Active Test.
(g) *: Activate the Solenoid (SLT) in the Active Test is performed to check the line pressure changes by connecting the SST to the automatic transaxle, which is used in the HYDRAULIC TEST Hydraulic Test as well.
HINT
The pressure values in Active Test and HYDRAULIC TEST are different from each other.
PROCEDURE
1. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P2714)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read the DTCs using the Techstream.

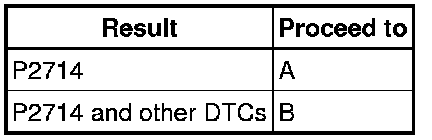

Result
Result:
HINT
If any other codes besides "P2714" are output, perform the troubleshooting for those DTCs first.
B -- GO TO DTC CHART Automatic Transaxle System - U341E
A -- Continue to next step.
2. INSPECT SHIFT SOLENOID VALVE SLT
(a) Remove the shift solenoid valve SLT.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
(c) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:
The solenoid makes an operating sound.
NG -- REPLACE SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.
3. INSPECT TRANSMISSION VALVE BODY ASSEMBLY
OK:
There are no foreign objects on each valve.
NG -- REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY Removal
OK -- Continue to next step.
4. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
OK:
The torque converter clutch operates normally.
NG -- REPLACE TORQUE CONVERTER CLUTCH ASSEMBLY Removal
OK -- REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSEMBLY Removal
