Part 4

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1603,P1605: Engine Stall History
P1605 - Rough Idling

Continued

39. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE VVT EXHAUST LINEAR)

(a) Connect the Techstream to the DLC3.

(b) Turn the Techstream on.

(c) Warm up the engine.

(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the VVT Exhaust Linear (Bank1) or Control the VVT Exhaust Linear (Bank2).

HINT
When performing the Active Test, make sure the A/C is on and the shift lever is in N.

(e) Check the engine speed while operating the Oil Control Valve (OCV) using the Techstream.

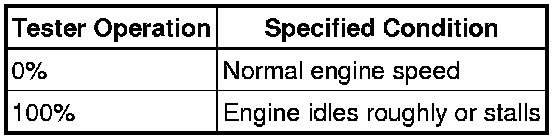

OK:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- When the results of the inspection using the Active Test are normal but the valve operating noise is abnormal, check the valve for any signs of problems.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY Removal
OK -- Continue to next step.

40. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

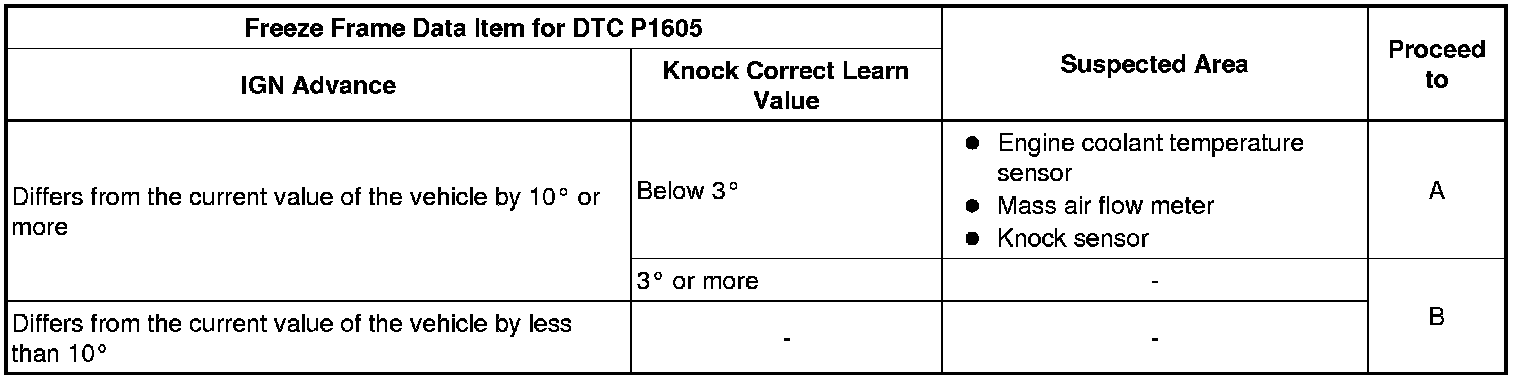

Result:

HINT
- Try to operate the vehicle under the conditions recorded in the freeze frame data which were present when the malfunction occurred. Confirm the data at this time and the data when the engine is idling (engine warmed up, no load, and shift lever in D or N) and compare these data with the freeze frame data.
- Even if the results are normal, the knock sensors may have been malfunctioning. If there are no problems with other parts, replace the knock sensors (refer to step 58).
B -- REPLACE MALFUNCTIONING PARTS
A -- Continue to next step.

41. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

HINT
For the engine coolant temperature inspection, refer to the following procedures Testing and Inspection.

NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal
OK -- Continue to next step.

42. INSPECT MASS AIR FLOW METER

(a) Disconnect the mass air flow meter connector.

(b) Measure the resistance according to the value(s) in the table below.

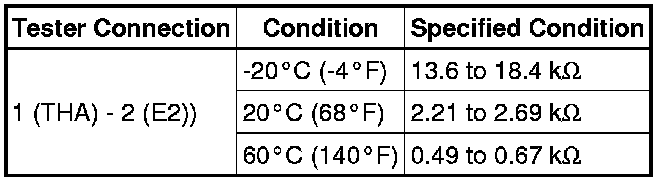

Standard Resistance:

(c) Reconnect the mass air flow meter connector.

HINT
If the intake air temperature sent to the ECM is higher than the standard due to the mass air flow meter (intake air temperature sensor) malfunctioning, the ignition timing may become delayed.

NG -- REPLACE MASS AIR FLOW METER Removal

OK -- REPLACE KNOCK SENSOR Removal

43. CHECK HARNESS AND CONNECTOR (FUEL INJECTOR POWER SOURCE)

(a) Disconnect the injector connectors.

(b) Turn the ignition switch to ON.

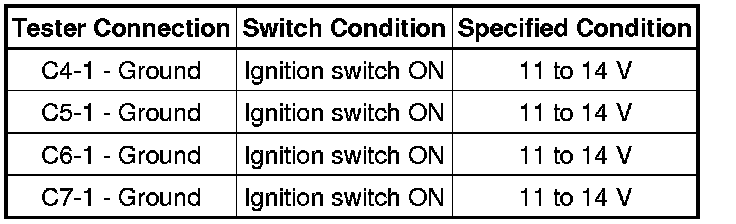

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

(a) Disconnect the ignition coil connectors.

(b) Turn the ignition switch to ON.

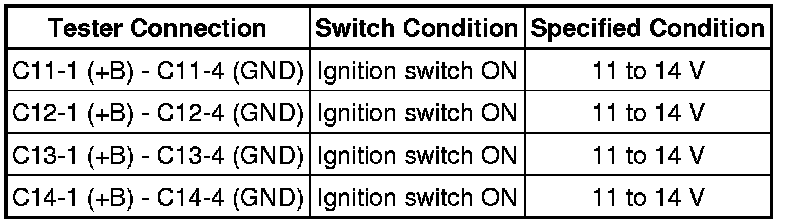

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
- A rapid decrease in engine speed may have been caused by a malfunction in all or multiple cylinders. (There may be an electrical malfunction in the wiring shared by all the cylinders.)
(d) Reconnect the ignition coil connectors.

NG -- CHECK POWER SOURCE CIRCUIT
OK -- Continue to next step.

45. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

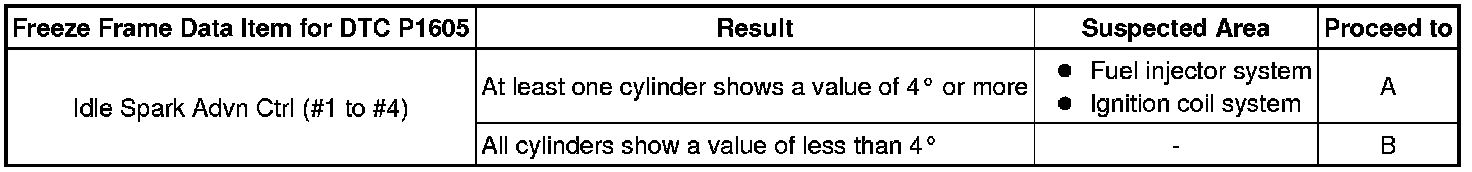

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

Result:

B -- READ FREEZE FRAME DATA
A -- Continue to next step.

46. READ VALUE USING TECHSTREAM

(a) Change the location of the ignition coil for the cylinder whose Idle Spark Advn Ctrl (#1 to #4) was 4° or more in step 47.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine and ECT / Data List / Idle Spark Advn Ctrl (#1 to #4).

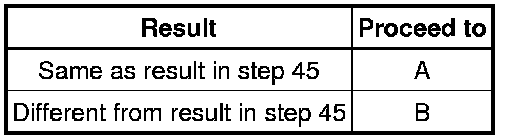

Result:

HINT
Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

B -- READ FREEZE FRAME DATA

A -- REPLACE IGNITION COIL Removal

47. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

Result:

HINT
- Try to operate the vehicle under the conditions recorded in the freeze frame data which were present when the malfunction occurred. Confirm the data at this time and the data when the engine is idling (engine warmed up, no load, and shift lever in D or N) and compare these data with the freeze frame data.
- *1: Check not only the ON/OFF state of the air conditioner but also the change in air conditioner load.
- *2: for Automatic transaxle models
- *3: for Manual transaxle models
- The normal value for the ISC learning amount is engine displacement (liters) x 0.9.
- Even if the results are normal, the power steering system may have been malfunctioning. Continue this inspection procedure until step 50, and if there are no problems with other parts, inspect the power steering system (refer to step 58).
C -- READ FREEZE FRAME DATA

B -- READ FREEZE FRAME DATA

A -- CHECK AIR CONDITIONING SYSTEM

48. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

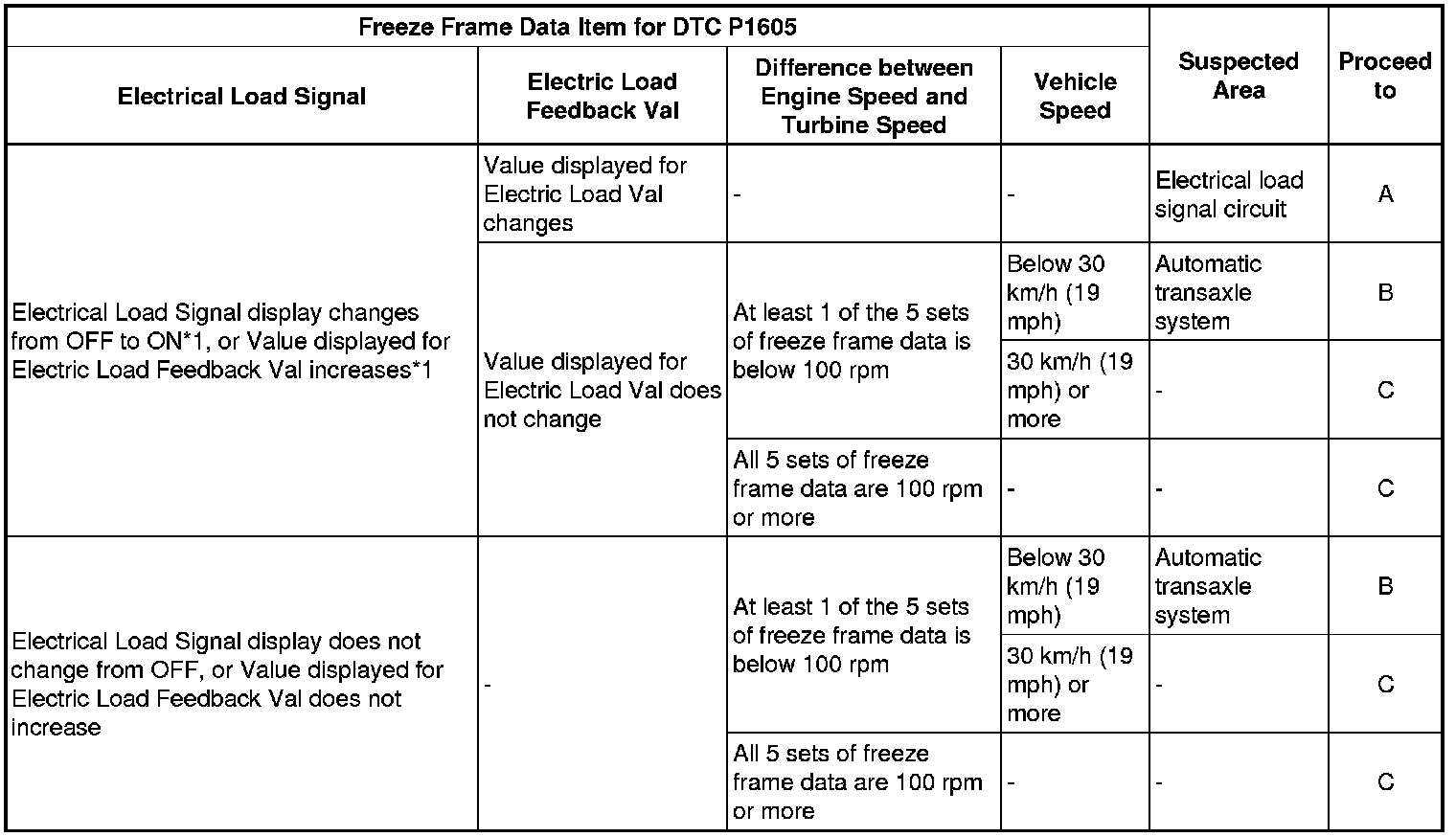

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

Result:

HINT
- *1: If the Electrical Load Signal display changes from OFF to ON or the "Electric Load Feedback Val" increases, it probably is a malfunction due to a change in electrical load. Check the generator and the continuity and connections between the generator and ECM.
- The normal value for the ISC learning amount is engine displacement (liters) x 0.9.
- Even if the results are normal, the electrical load signal system and/or the automatic transaxle system may have been malfunctioning. Continue this inspection procedure until step 50, and if there are no problems with other parts, inspect the electrical load system and/or the automatic transaxle system (refer to step 58).
C -- READ FREEZE FRAME DATA

B -- CHECK AUTOMATIC TRANSAXLE SYSTEM

A -- CHECK GENERATOR CIRCUIT Testing and Inspection

49. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

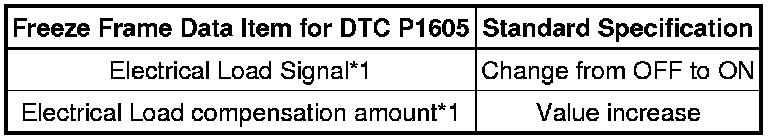

Result:

HINT
- *1: If the Electrical Load Signal display changes from OFF to ON or the "Electric Load Feedback Val" increases, it probably is a malfunction due to a change in electrical load. Check the generator and the continuity and connections between the generator and ECM.
- Even if the results are normal, the electrical load signal system may have been malfunctioning. Continue this inspection procedure until step 50, and if there are no problems with other parts, inspect the electrical load system (refer to step 58).
NG -- REPLACE MALFUNCTIONING PARTS

OK -- CHECK GENERATOR CIRCUIT Testing and Inspection

50. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

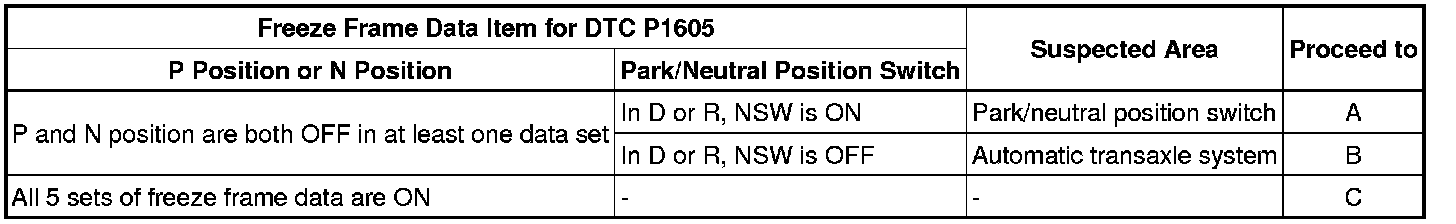

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

Result:

HINT
Even if the results are normal, the park/neutral position switch and/or automatic transaxle system system may have been malfunctioning. If there are no problems with other parts, inspect the park/neutral position switch and/or automatic transaxle system system (refer to step 58).

C -- REPLACE MALFUNCTIONING PARTS

B -- CHECK AUTOMATIC TRANSAXLE SYSTEM

A -- CHECK PARK/NEUTRAL POSITION SWITCH

51. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

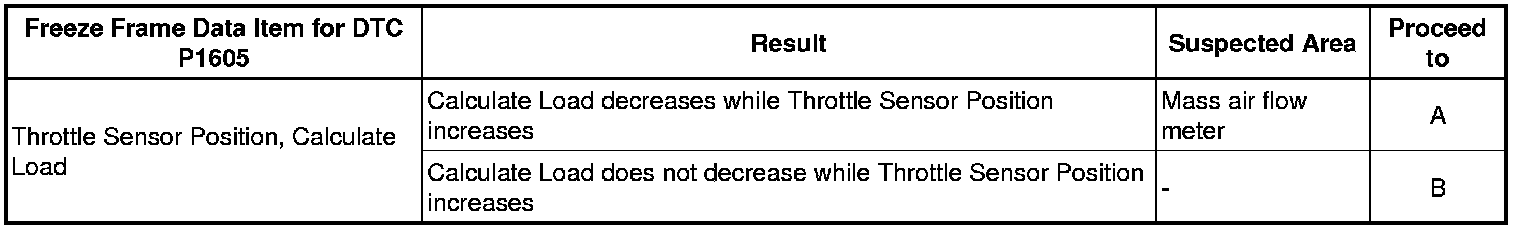

Result:

B -- CHECK HARNESS AND CONNECTOR (FUEL INJECTOR POWER SOURCE)
A -- Continue to next step.

52. CHECK MASS AIR FLOW METER

(a) Remove the mass air flow meter.

(b) Check for foreign matter in the air flow passage of the mass air flow meter.

Result:

(c) Install the mass air flow meter.

HINT
Even if the results are normal, the mass air flow meter may have been malfunctioning. Continue this inspection procedure until step 57, and if there are no problems with other parts, replace the mass air flow meter (refer to step 58).

B -- CHECK HARNESS AND CONNECTOR (FUEL INJECTOR POWER SOURCE)

A -- REPLACE MASS AIR FLOW METER Removal

53. CHECK HARNESS AND CONNECTOR (FUEL INJECTOR POWER SOURCE)

(a) Disconnect the injector connectors.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

(a) Disconnect the ignition coil connectors.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
- A rapid decrease in engine speed may have been caused by a malfunction in all or multiple cylinders. (There may be an electrical malfunction in the wiring shared by all the cylinders.)
(d) Reconnect the ignition coil connectors.

NG -- CHECK POWER SOURCE CIRCUIT
OK -- Continue to next step.

55. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.

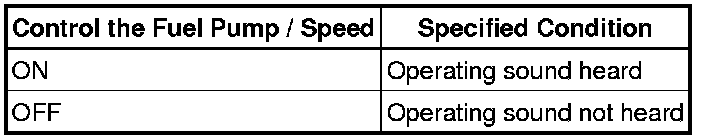

(e) Check whether the fuel pump operating sound occurs when performing the Active Test on the tester.

OK:

Result:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- While performing the Active Test, make sure that there is no fuel leakage from the pipes, no signs that fuel has leaked, and no fuel smell.
- If the fuel pump operating noise is abnormal, proceed to step 56.
B -- CHECK FUEL SYSTEM
A -- Continue to next step.

56. INSPECT FUEL PUMP

(a) Disconnect the fuel pump connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(c) Reconnect the fuel pump connector.

NG -- REPLACE FUEL PUMP Removal

OK -- CHECK FUEL PUMP CONTROL SYSTEM

57. CHECK FUEL SYSTEM

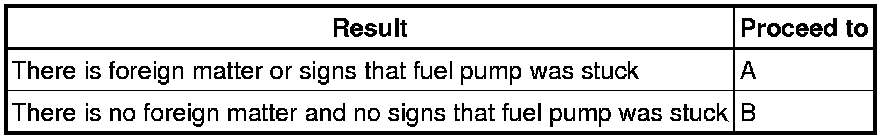

(a) Check for foreign matter such as iron particles around the fuel pump (fuel pump, fuel pump filter and inside the fuel tank), and for signs that the fuel pump was stuck.

Result:

B -- REPLACE MALFUNCTIONING PARTS

A -- REPAIR OR REPLACE FUEL SYSTEM

58. REPLACE MALFUNCTIONING PARTS

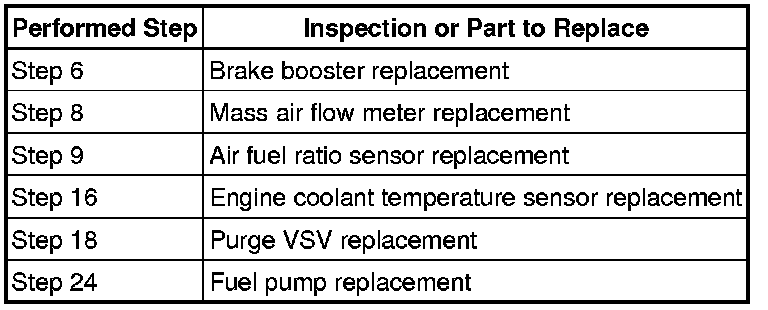

(a) If the malfunction could not be identified in steps 3 to 24, replace the part which is suspected to be malfunctioning according to the step where an inspection was performed.

(b) If the malfunction could not be identified in steps 25 to 34, replace the part which is suspected to be malfunctioning according to the step where an inspection was performed.

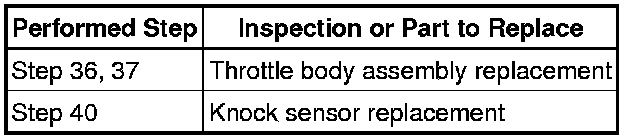

(c) If the malfunction could not be identified in steps 35 to 42, replace the part which is suspected to be malfunctioning according to the step where an inspection was performed.

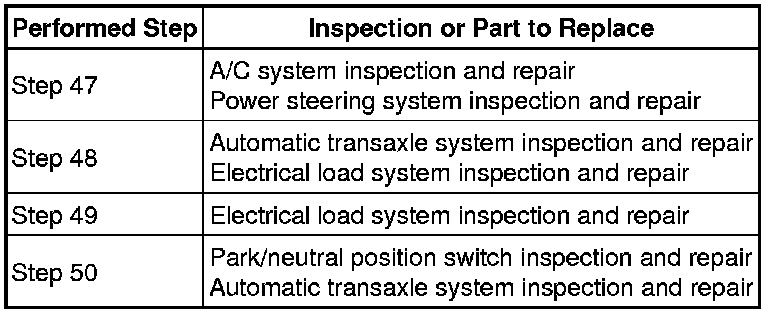

(d) If the malfunction could not be identified in steps 43 to 50, inspect and repair the part which is suspected to be malfunctioning according to the step where an inspection was performed.

(e) If the malfunction could not be identified in steps 51 to 57, replace the part which is suspected to be malfunctioning according to the step where an inspection was performed.

HINT
Referring to the chart, inspect and repair or replace the part from the step where an inspection was performed.

NEXT -- Continue to next step.

59. CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Clear the DTCs DTC Check / Clear.

NEXT -- Continue to next step.

60. PERFORM CONFIRMATION DRIVING PATTERN

(a) Check if engine stall symptoms are present.

HINT
If any engine stall symptoms are present, recheck for DTCs and freeze frame data and perform an inspection.

NG -- REPAIR OR REPLACE MALFUNCTIONING PARTS

OK -- END
