2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1603,P1605: Engine Stall History
P1605 - Rough Idling

Continued

9. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Start the engine, turn off all accessory switches and warm up the engine until the engine coolant temperature stabilizes.

(d) Idle the engine.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the injection volume.

(g) Read the output voltage from the air fuel ratio sensor when increasing and decreasing the fuel injection volume.

Standard:

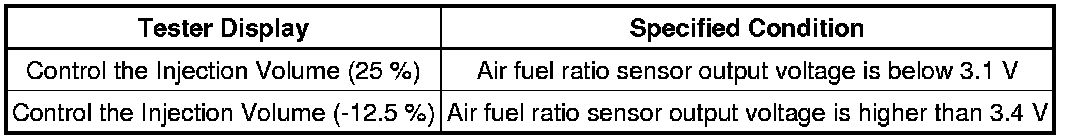

Result:

HINT
- The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
- Even if the results are normal, the air fuel ratio sensor may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the air fuel ratio sensor (refer to step 58).
B -- READ FREEZE FRAME DATA
A -- Continue to next step.

10. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR POWER SOURCE)

(a) Disconnect the air fuel ratio sensor connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
(d) Reconnect the air fuel ratio sensor connector.

NG -- CHECK POWER SOURCE CIRCUIT
OK -- Continue to next step.

11. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)

(a) Disconnect the air fuel ratio sensor connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

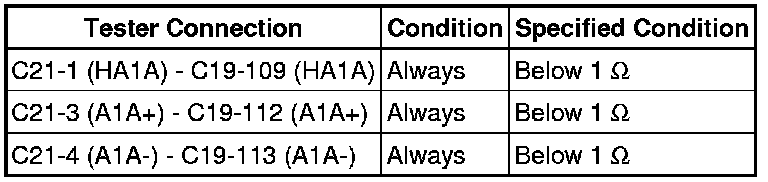

Standard Resistance (Check for Open):

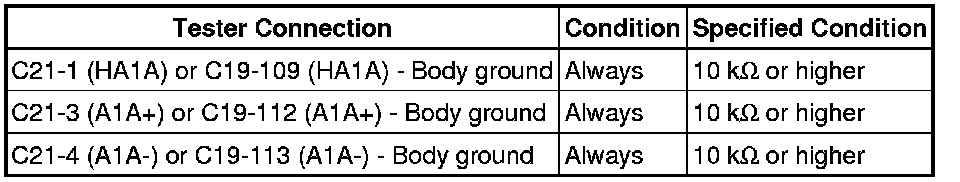

Standard Resistance (Check for Short):

Result:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
(d) Reconnect the air fuel ratio sensor connector.

(e) Reconnect the ECM connector.

B -- REPAIR OR REPLACE HARNESS OR CONNECTOR

A -- REPLACE AIR FUEL RATIO SENSOR Removal

12. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

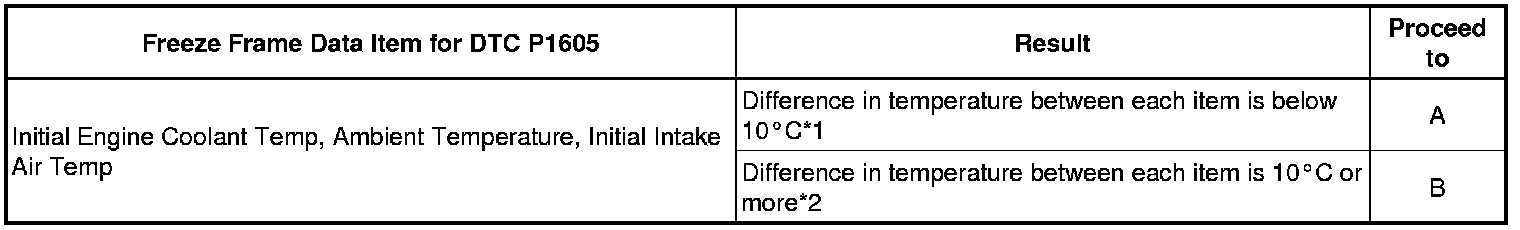

Result:

HINT
- *1: A long time had elapsed after stopping the engine.
- *2: A long time had not elapsed after stopping the engine.
B -- READ FREEZE FRAME DATA
A -- Continue to next step.

13. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

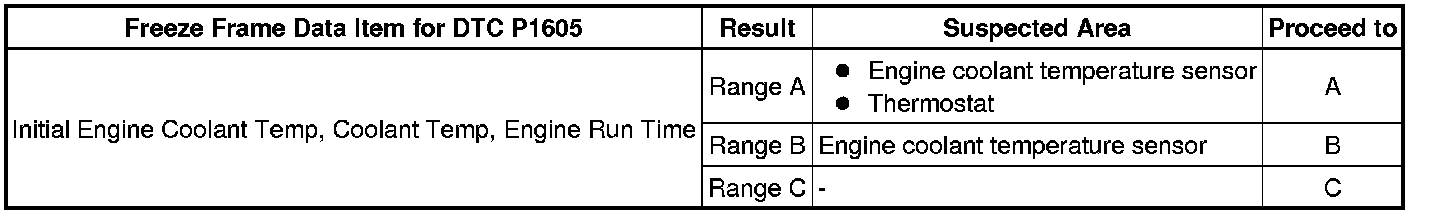

Result:

HINT
This step is not directly related to engine stall.

C -- READ FREEZE FRAME DATA

B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
A -- Continue to next step.

14. INSPECT THERMOSTAT

HINT
For the thermostat inspection, refer to the following procedures Testing and Inspection.

Result:

HINT
This step is not directly related to engine stall.

B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR

A -- REPLACE THERMOSTAT Removal

15. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

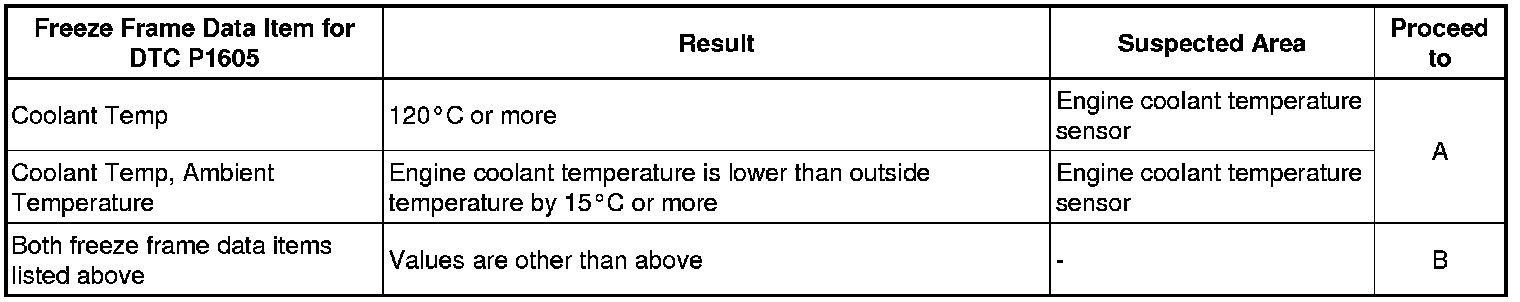

Result:

B -- READ FREEZE FRAME DATA
A -- Continue to next step.

16. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

HINT
For the engine coolant temperature sensor inspection, refer to the following procedures Testing and Inspection.

Result:

HINT
Even if the results are normal, the engine coolant temperature sensor may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the engine coolant temperature sensor (refer to step 58).

B -- READ FREEZE FRAME DATA

A -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

17. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

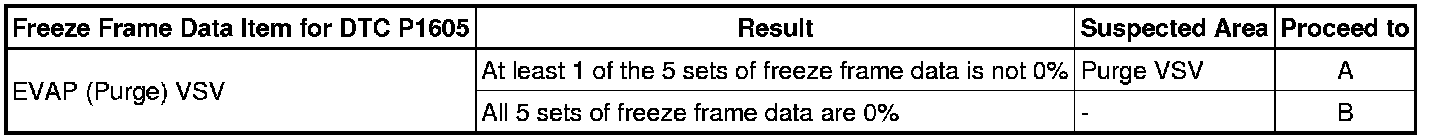

Result:

HINT
If the purge VSV is stuck closed, air-fuel ratio compensation by the Purge VSV is incorrectly adjusted, and then the air-fuel ratio becomes lean and the engine may stall.

B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
A -- Continue to next step.

18. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE VSV FOR EVAP CONTROL)

(a) Disconnect the purge hose (on the canister side) of the Purge VSV.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Start the engine.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.

(g) Operate the purge VSV and check the air flow.

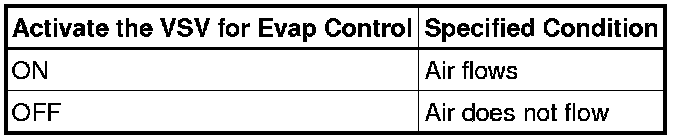

OK:

Result:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Even if the results are normal, the purge VSV may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the purge VSV (refer to step 58).
B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
A -- Continue to next step.

19. INSPECT PURGE VSV

(a) Disconnect the purge VSV connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(c) Reconnect the purge VSV connector.

NG -- REPLACE PURGE VSV
OK -- Continue to next step.

20. CHECK HARNESS AND CONNECTOR (PURGE VSV POWER SOURCE)

(a) Disconnect the purge VSV connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
(d) Reconnect the purge VSV connector.

NG -- CHECK POWER SOURCE CIRCUIT
OK -- Continue to next step.

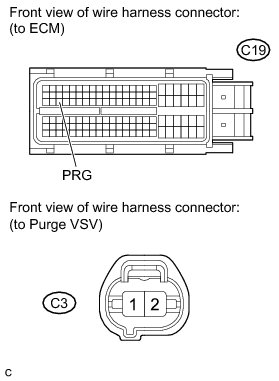

21. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

(a) Disconnect the purge VSV connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Standard Resistance (Check for Short):

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
(d) Reconnect the purge VSV connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal

22. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.

(e) When performing the Active Test, check for an operating sound from the fuel pump.

OK:

Result:

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- While performing the Active Test, make sure that there is no fuel leakage from the pipes, no signs that fuel has leaked, and no fuel smell.
- If the fuel pump operating noise is abnormal, proceed to step 23.
B -- CHECK FUEL SYSTEM
A -- Continue to next step.

23. INSPECT FUEL PUMP

(a) Disconnect the fuel pump connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:
