P0113

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0112,P0113: Intake Air Temperature Circuit Low Input
P0113 - Intake Air Temperature Circuit High Input

DESCRIPTION

- The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the IAT is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (see Fig. 1).

- The IAT sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.

- Resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes, according to changes in the IAT, the voltage at terminal THA also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.

HINT
When any of DTCs P0112 and P0113 are set, the ECM enters fail-safe mode. During fail-safe mode, the IAT is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected.

HINT
When any of these DTCs are set, check the intake air temperature by entering the following menus: Powertrain / Engine and ECT / All Data / Intake Air.

MONITOR DESCRIPTION

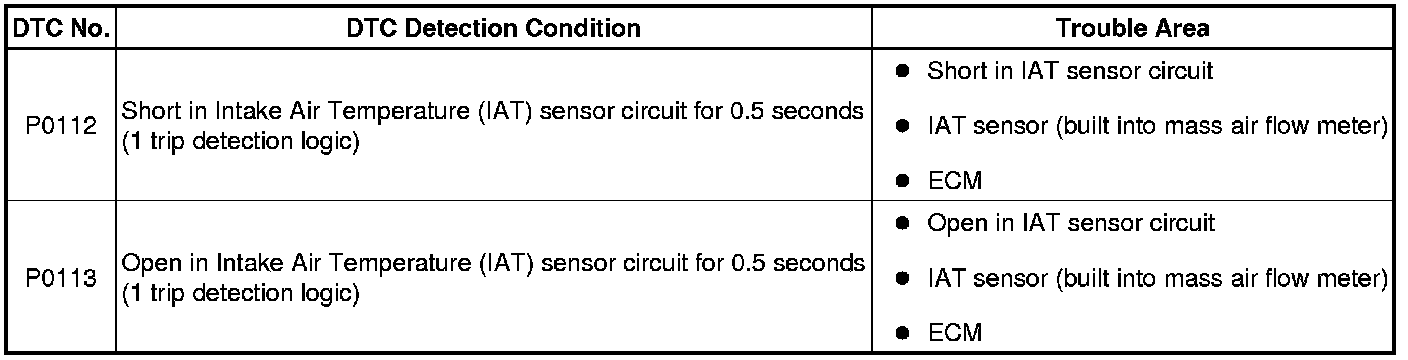

The ECM monitors the sensor voltage and uses this value to calculate the Intake Air Temperature (IAT). When the sensor output voltage deviates from the normal operating range, the ECM interprets this as a malfunction in the IAT sensor and sets a DTC.

Example:

If the sensor output voltage is more than 4.91 V for 0.5 seconds or more, the ECM determines that there is an open in the IAT sensor circuit, and sets DTC P0113. Conversely, if the output voltage is less than 0.18 V for 0.5 seconds or more, the ECM determines that there is a short in the sensor circuit, and sets DTC P0112.

If the malfunction is not repaired successfully, a DTC is set 0.5 seconds after the engine is next started.

MONITOR STRATEGY

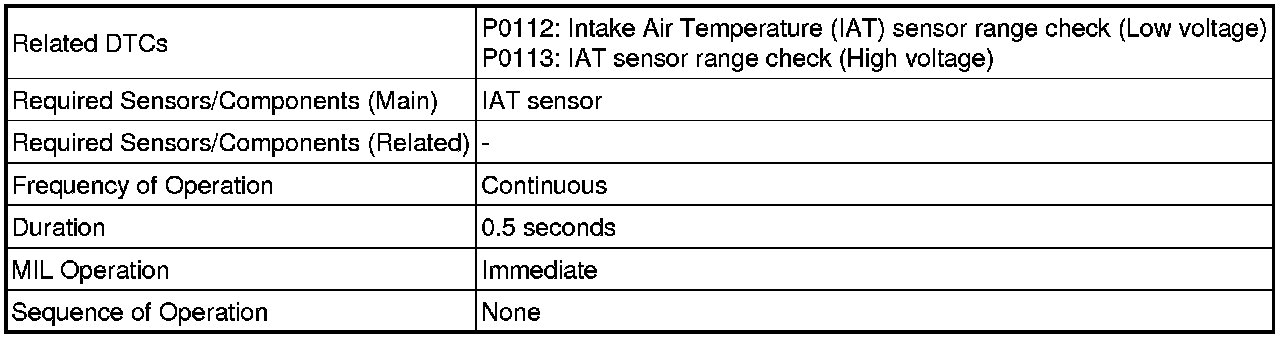

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

P0112:

P0112::

P0113:

P0113::

COMPONENT OPERATING RANGE

CONFIRMATION DRIVING PATTERN

- Connect the Techstream to the DLC3.

- Turn the ignition switch to ON and turn the Techstream on.

- Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

- Turn the ignition switch off and wait for at least 30 seconds.

- Turn the ignition switch to ON and turn the Techstream on.

- Wait 0.5 seconds or more [A].

- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [B].

- Read the DTCs.

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

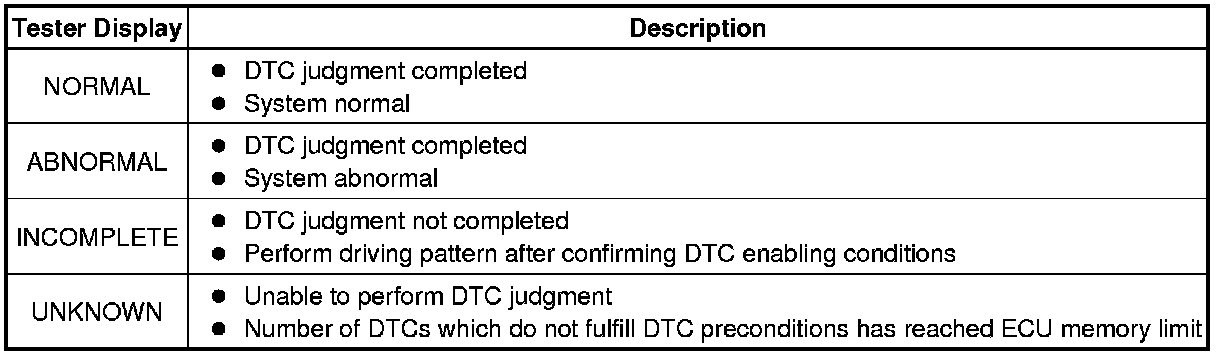

- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

- Input the DTC: P0112 or P0113.

- Check the DTC judgment result.

- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM

INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. READ VALUE USING TECHSTREAM (INTAKE AIR TEMPERATURE)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / All Data / Intake Air.

(e) Read the value displayed on the tester.

OK:

Same as actual Intake Air Temperature (IAT).

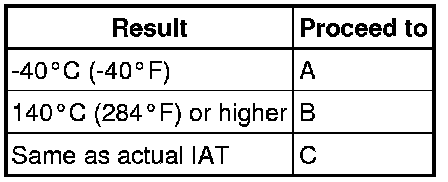

Result:

HINT

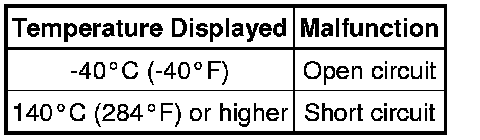

- If there is an open circuit, the tester indicates -40°C (-40°F).
- If there is a short circuit, the tester indicates 140°C (284°F) or higher.
C -- CHECK FOR INTERMITTENT PROBLEMS

B -- READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (CHECK FOR OPEN IN WIRE HARNESS)

(a) Disconnect the mass air flow meter connector.

(b) Connect terminals 1 (THA) and 2 (E2) of the MAF meter wire harness side connector.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / All Data / Intake Air.

(g) Read the value displayed on the tester.

Standard value:

140°C (284°F) or higher

(h) Reconnect the mass air flow meter connector.

NG -- CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

OK -- CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER Removal

3. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

(a) Disconnect the mass air flow meter connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

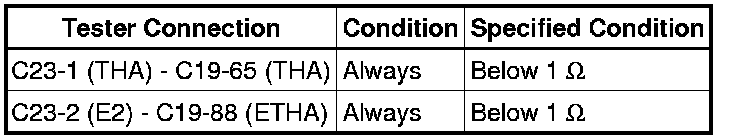

Standard Resistance (Check for Open):

(d) Reconnect the mass air flow meter connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM Electronic Circuit Inspection Procedure

1. READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)

(a) Disconnect the mass air flow meter connector.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine and ECT / All Data / Intake Air.

(f) Read the value displayed on the tester.

Standard value:

-40°C (-40°F)

(g) Reconnect the mass air flow meter connector.

NG -- CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

OK -- REPLACE MASS AIR FLOW METER Removal

2. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

(d) Reconnect the mass air flow meter connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Electronic Circuit Inspection Procedure
