Tire Pressure Warning System





TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the applicable Diagnostic Trouble Code Test below.

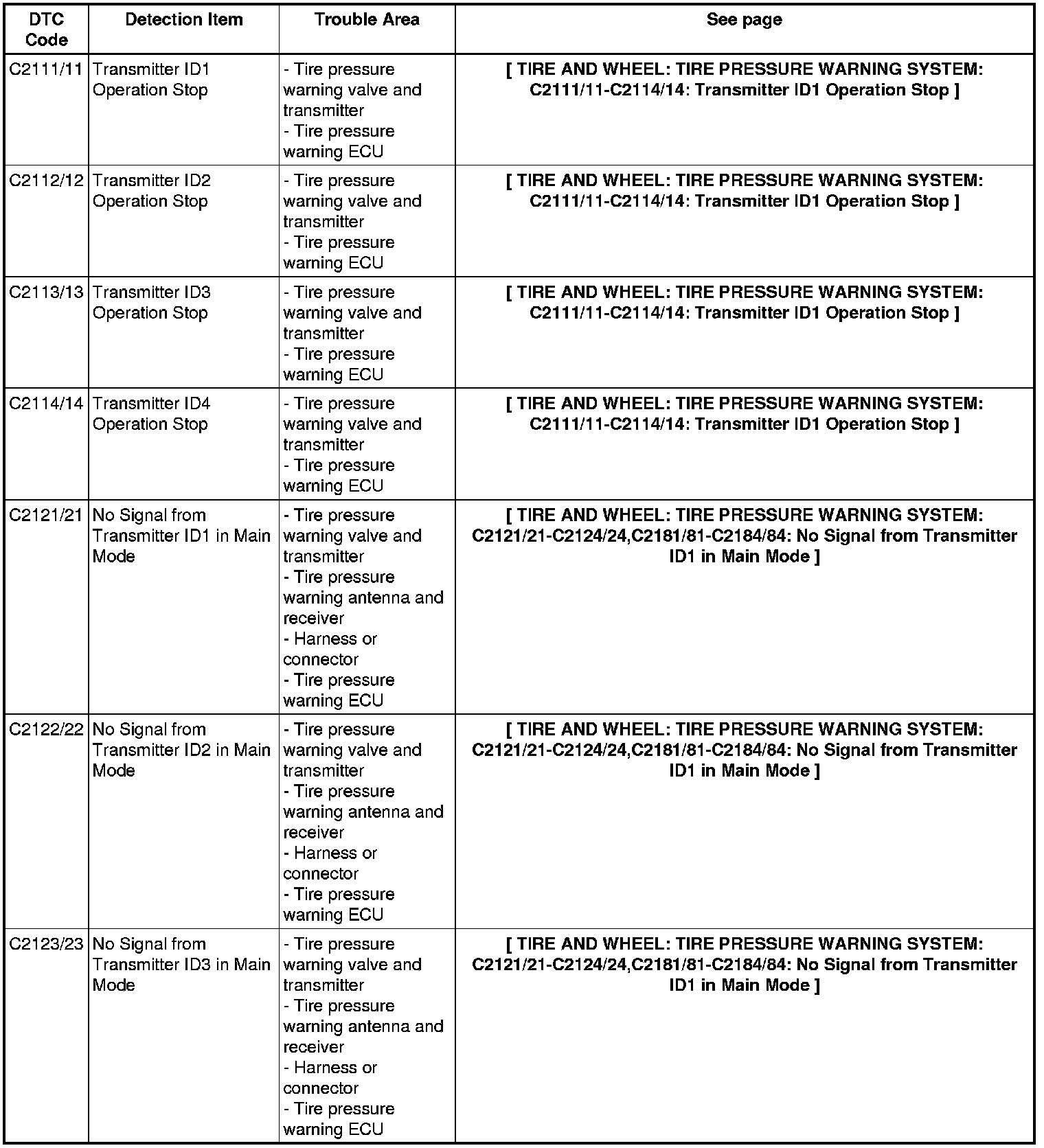

C2111/11 - C2123/23:

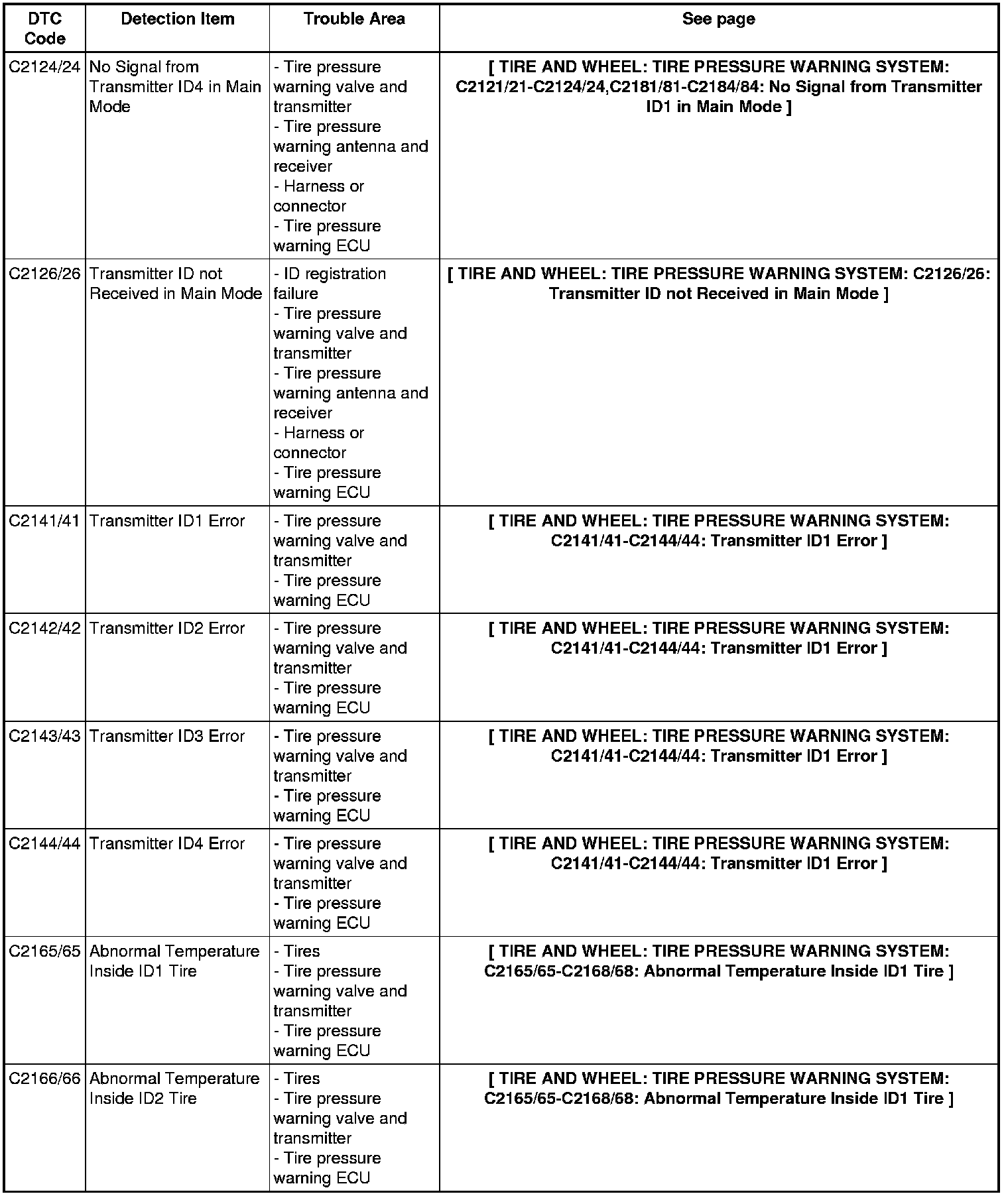

C2124/24 - C2166/66:

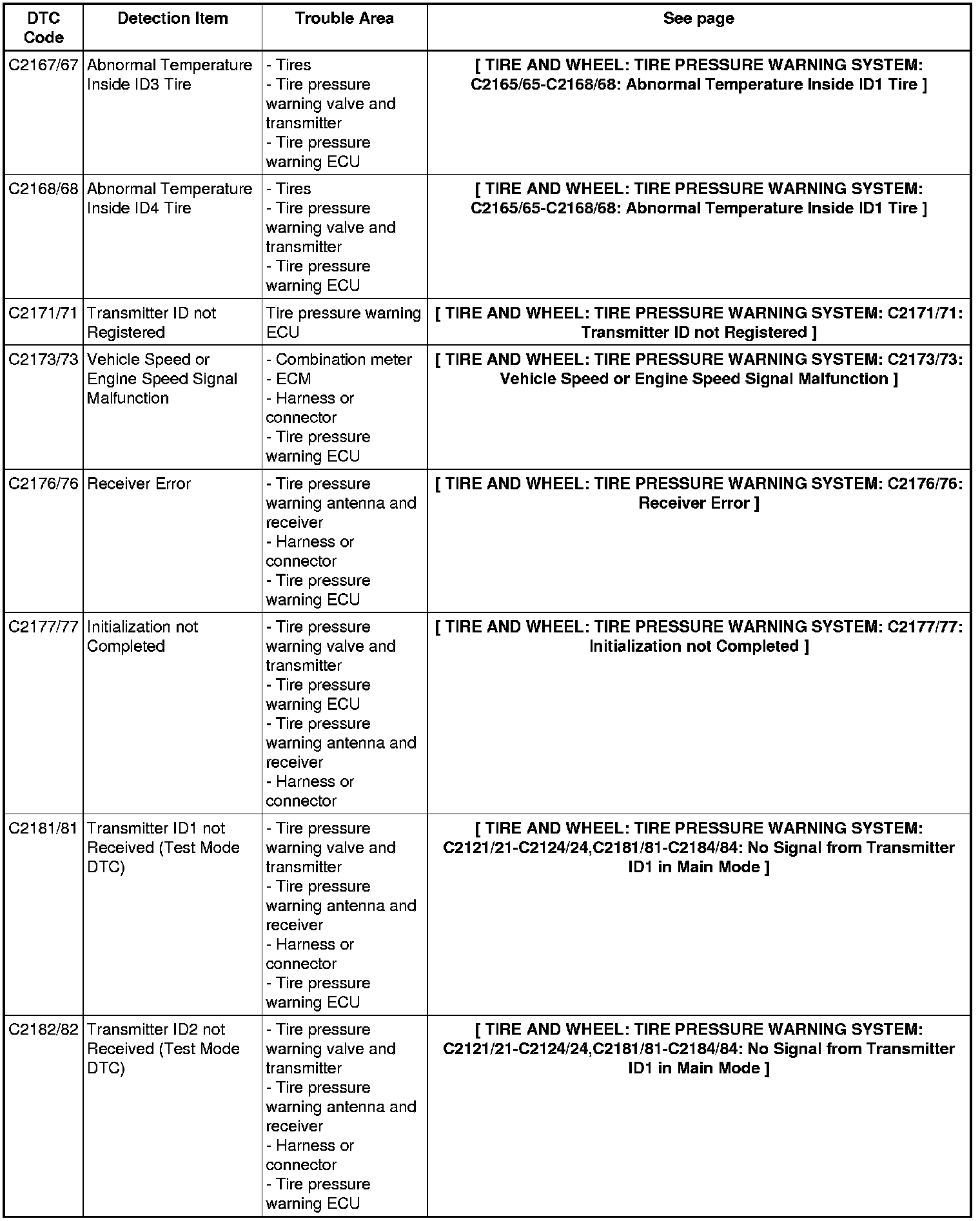

C2167/67 - C2182/82:

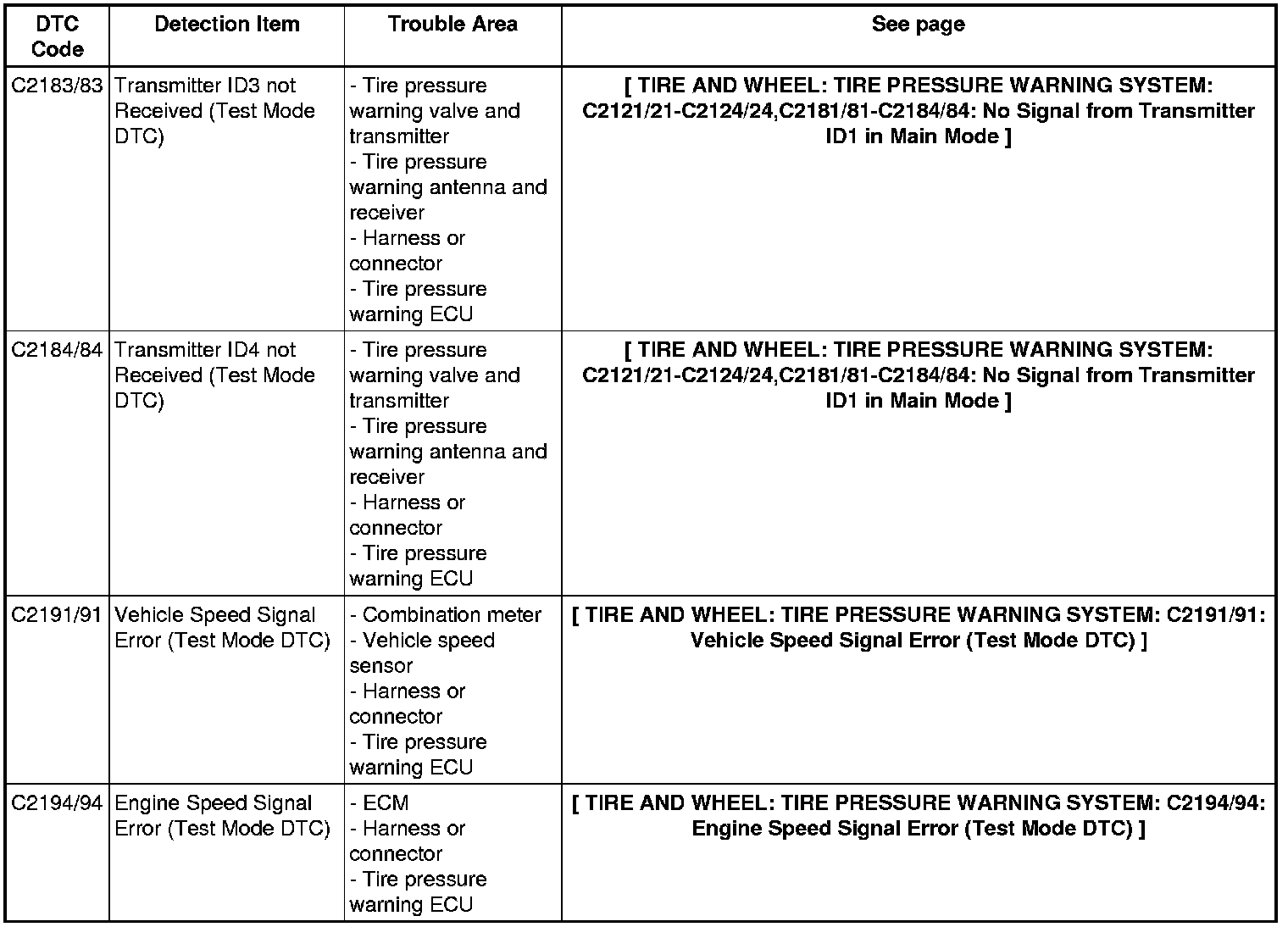

C2183/83 - C2194/94:
