FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Scion
>>
2010
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Regulator
>>
Service and Repair
>>
Components
Components
WINDSHIELD

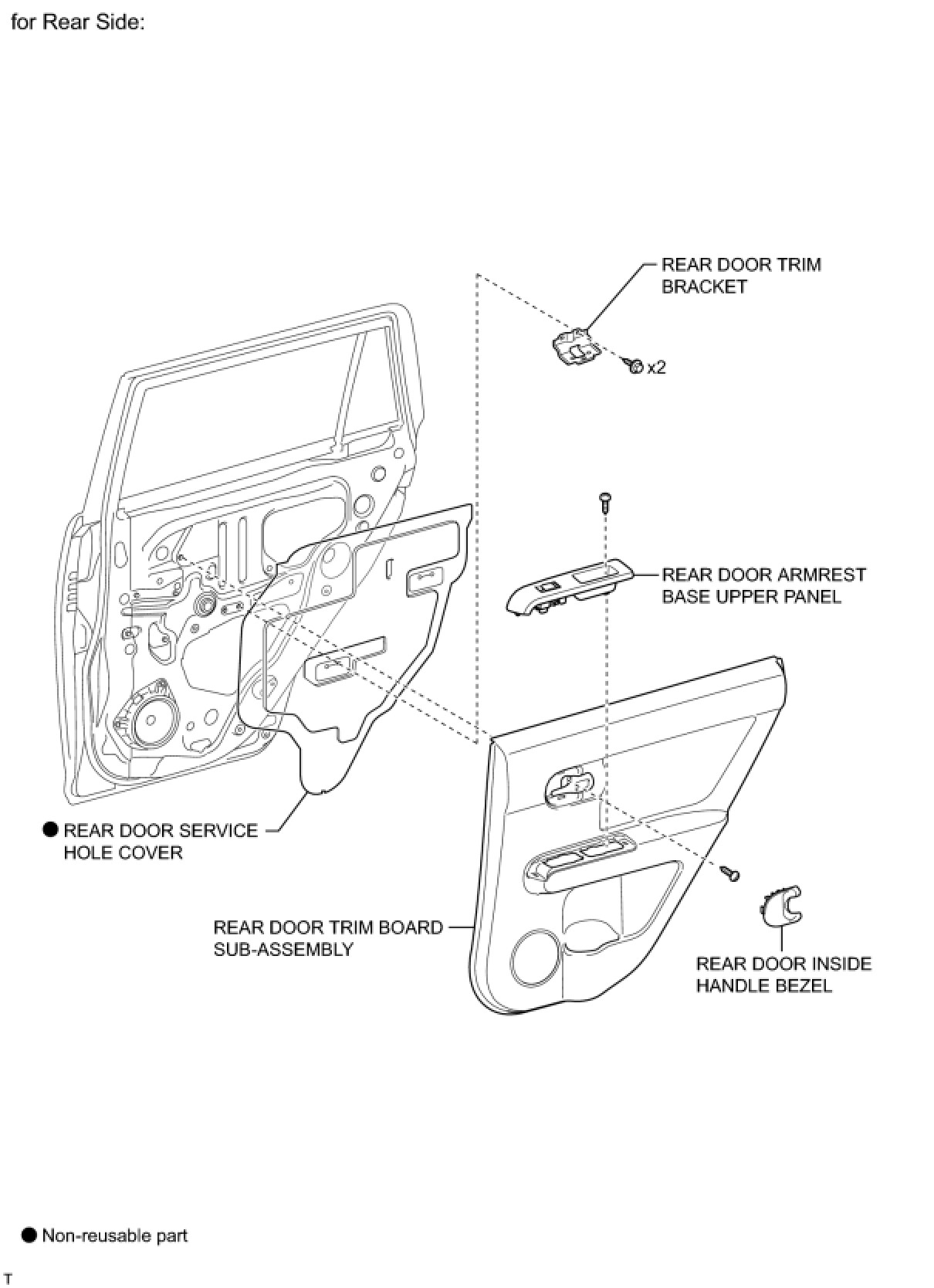

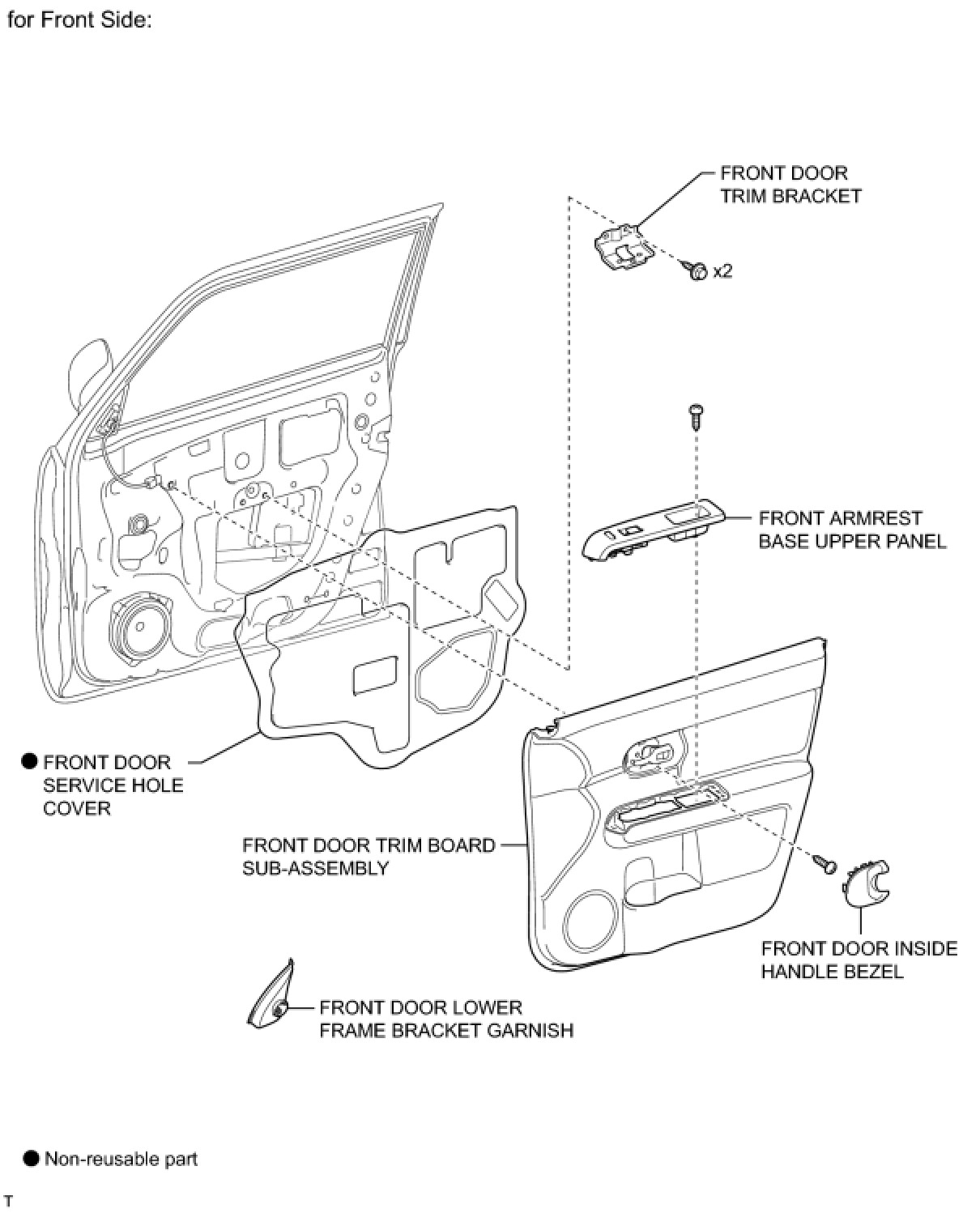

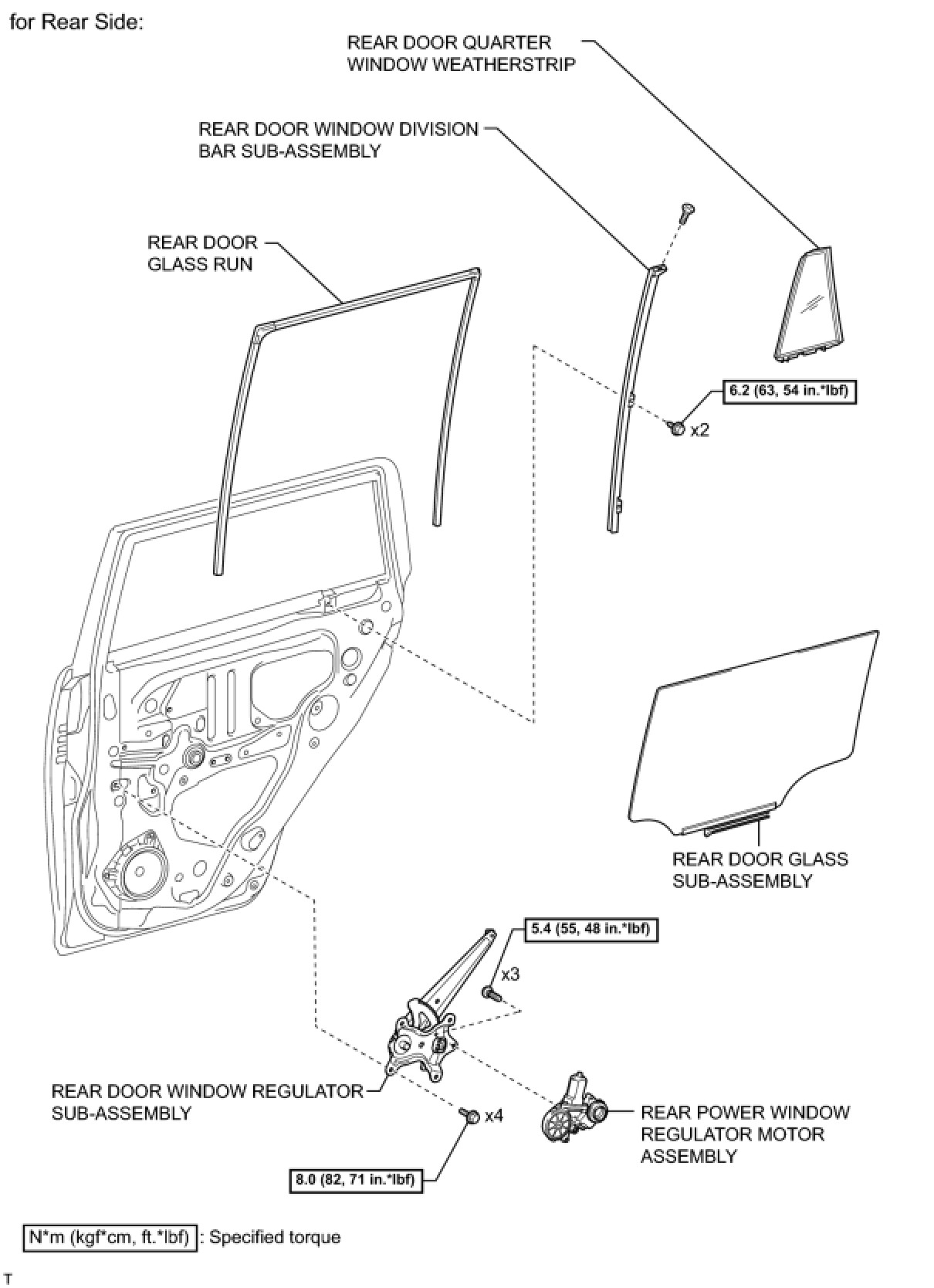

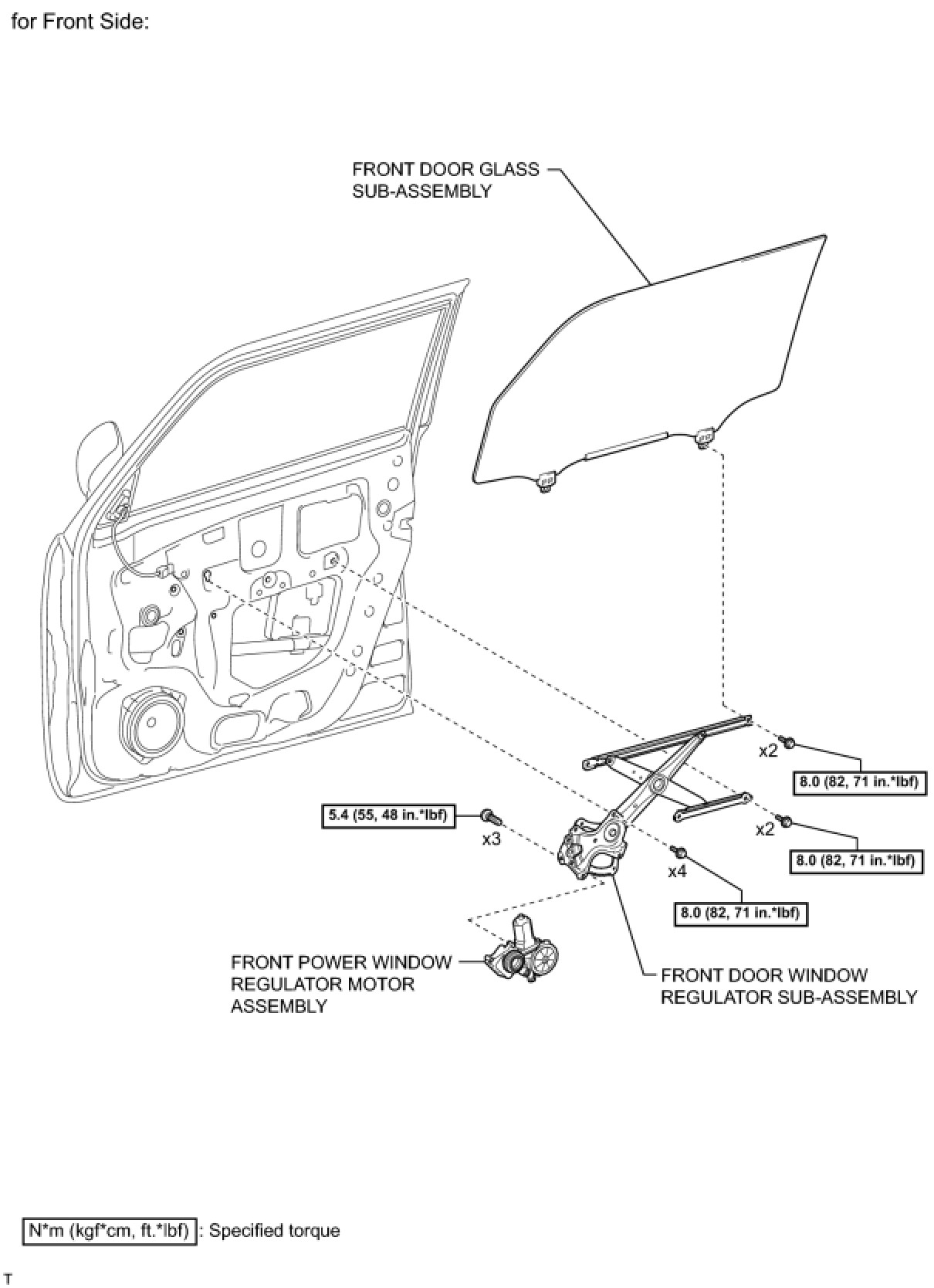

/ WINDOWGLASS: POWER WINDOW REGULATOR MOTOR: COMPONENTS
