Removal

E351 MANUAL TRANSAXLE: MANUAL TRANSAXLE ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE COLUMN HOLE COVER SILENCER SHEET Removal

3. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY Removal

4. REMOVE FRONT WHEELS

5. REMOVE NO. 2 ENGINE UNDER COVER

6. REMOVE NO. 1 ENGINE UNDER COVER

7. REMOVE REAR ENGINE UNDER COVER LH

8. REMOVE REAR ENGINE UNDER COVER RH

9. DRAIN TRANSAXLE OIL

(a) Remove the filler plug and the gasket.

(b) Remove the drain plug and gasket, and then drain the manual transaxle oil.

(c) Install a new gasket and the drain plug.

Torque : 39 Nm (400 kgf-cm, 29 ft-lbf)

10. REMOVE HOOD SUB-ASSEMBLY

11. REMOVE WINDSHIELD WIPER ARM COVER Removal

12. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal

13. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal

14. REMOVE HOOD TO COWL TOP SEAL Removal

15. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

16. REMOVE COWL TOP VENTILATOR LOUVER LH Removal

17. REMOVE WINDSHIELD WIPER MOTOR AND LINK Removal

18. REMOVE COWL TOP PANEL OUTER Removal

19. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

20. REMOVE AIR CLEANER ASSEMBLY Removal

21. REMOVE BATTERY CLAMP SUB-ASSEMBLY

22. REMOVE BATTERY INSULATOR

23. REMOVE BATTERY

24. REMOVE BATTERY TRAY

25. REMOVE BATTERY CARRIER





(a) Remove the 4bolts and the battery carrier.

26. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

Removal

27. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

Removal

28. DISCONNECT ACCUMULATOR TO FLEXIBLE HOSE TUBE





(a) Remove the 2 bolts and disconnect the flexible hose tube.

29. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Remove the 2 clips and the 2 washers, and disconnect the 2 cables from the transaxle.

(b) Remove the 2 clips and disconnect the 2 cables from the control cable bracket.

(c) Remove the bolt and disconnect the control cable bracket.





30. REMOVE CONTROL CABLE BRACKET





(a) Remove the 3 bolts and the control cable bracket.

31. DISCONNECT WIRE HARNESS

32. DISCONNECT CONNECTOR

(a) Disconnect the back-up light switch connector.

33. REMOVE STARTER ASSEMBLY Removal

34. REMOVE FRONT AXLE HUB NUT LH Removal

35. REMOVE FRONT AXLE HUB NUT RH

HINT
Perform the same procedure as for the LH side.

36. SEPARATE FRONT SPEED SENSOR LH Removal

37. SEPARATE FRONT SPEED SENSOR RH

HINT
Perform the same procedure as for the LH side.

38. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH Removal

39. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

40. SEPARATE TIE ROD END SUB-ASSEMBLY LH Removal

41. SEPARATE TIE ROD END SUB-ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

42. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal

43. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

44. SEPARATE FRONT AXLE ASSEMBLY LH Removal

45. SEPARATE FRONT AXLE ASSEMBLY RH

HINT
Perform the same procedure as for the LH side.

46. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal

47. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal

48. SUSPEND ENGINE ASSEMBLY





(a) Install the 2 hangers in the correct direction.

(b) Attach the engine chain hoist to the hangers.

CAUTION:
Do not attempt to hang the engine by hooking the chain to any other part.

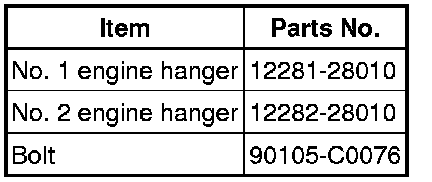

Parts No.:





Torque : 38 Nm (387 kgf-cm, 28 ft-lbf)

49. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH Removal

50. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

HINT
Perform the same procedure as for the LH side.

51. REMOVE FRONT SUSPENSION MEMBER REAR BRACE LH Removal

52. REMOVE FRONT SUSPENSION MEMBER REAR BRACE RH

HINT
Perform the same procedure as for the LH side.

53. SEPARATE FRONT ENGINE MOUNTING INSULATOR





(a) Remove the bolt and nut.

54. REMOVE FRONT CROSS MEMBER SUB-ASSEMBLY





(a) Remove the 4 bolts and the front cross member.

55. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY Removal

56. SEPARATE REAR ENGINE MOUNTING INSULATOR





(a) Remove the bolt and nut, and separate the rear engine mounting insulator.

57. REMOVE FRONT ENGINE MOUNTING BRACKET





(a) Remove the 3 bolts and the front engine mounting bracket.

58. REMOVE REAR ENGINE MOUNTING BRACKET





(a) Remove the 3 bolts and the rear engine mounting bracket.

59. SUPPORT MANUAL TRANSAXLE ASSEMBLY

60. REMOVE ENGINE MOUNTING INSULATOR LH





(a) Remove the 4 bolts.

(b) Remove the bolt and nut and separate the engine mounting insulator LH.

61. REMOVE ENGINE MOUNTING BRACKET LH





(a) Remove the 3 bolts and the engine mounting bracket LH.

62. REMOVE MANUAL TRANSAXLE ASSEMBLY





(a) Remove the 10 bolts and the manual transaxle.
