Disposal

SUSPENSION: FRONT SHOCK ABSORBER: DISPOSAL

1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

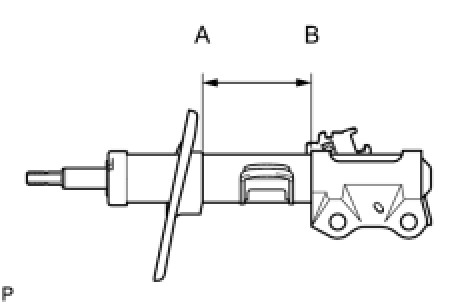

(a) Position the front shock absorber assembly level with the piston rod fully extended. Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.





NOTICE:
* The gas is colorless, odorless, and nonpoisonous.
* Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.
