Inspection

U241E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Measure the resistance with the shift lever in each position.

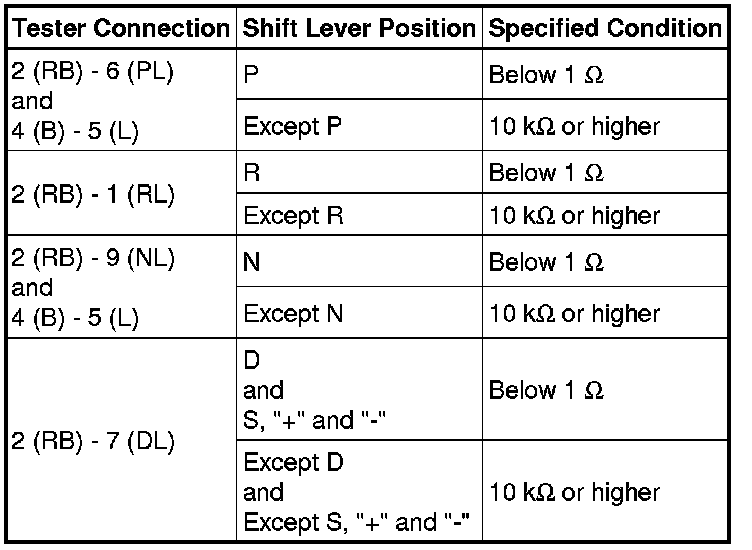

Standard resistance:





(b) If the resistance is not as specified, replace the park/neutral position switch assembly.
