Horn Relay: Testing and Inspection

HORN: INTEGRATION RELAY: ON-VEHICLE INSPECTION

1. REMOVE NO. 1 RELAY BLOCK COVER

2. REMOVE INTEGRATION RELAY Removal

3. INSPECT INTEGRATION RELAY





(a) Check the resistance.

(1) Remove the horn relay.

(2) Using an ohmmeter, measure the resistance between the terminals.

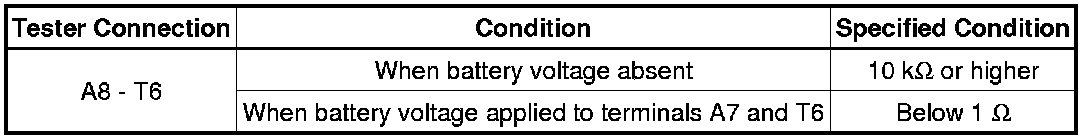

Standard resistance:





(3) If the result is not as specified, replace the integration relay.

4. INSTALL INTEGRATION RELAY Installation

5. INSTALL NO.1 RELAY BLOCK COVER
