Headlamp Dimmer Relay: Testing and Inspection

LIGHTING: HEADLIGHT DIMMER RELAY: ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT DIMMER RELAY





(a) Check the resistance.

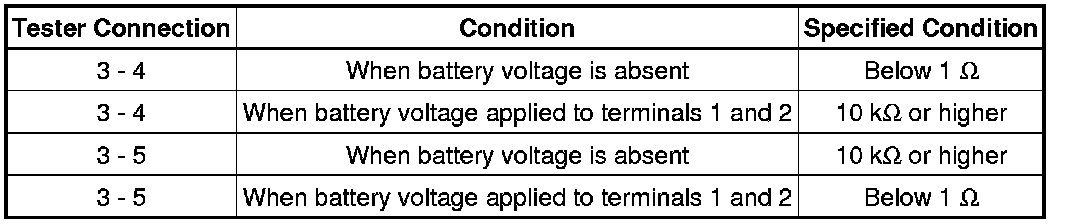

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(2) If the result is not as specified, replace the headlight dimmer relay.
