Radiator Cooling Fan Motor Relay: Testing and Inspection

2AZ-FE COOLING: COOLING FAN RELAY: ON-VEHICLE INSPECTION

1. REMOVE NO. 1 RELAY BLOCK COVER

2. INSPECT NO. 1 FAN RELAY (FAN NO. 1)





(a) Remove the relay from the engine room relay block.

(b) Measure the resistance of the relay.

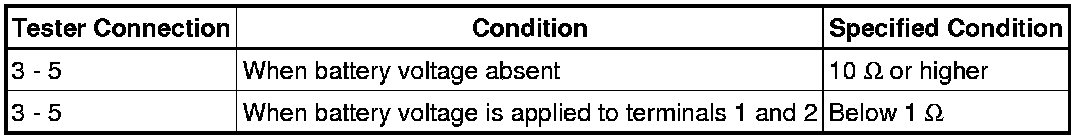

Standard resistance:





* If the result is not as specified, replace the relay.

(c) Install the relay.

3. INSPECT NO. 2 FAN RELAY (FAN NO. 2)





(a) Remove the relay from the engine room relay block.

(b) Measure the resistance of the relay.

Standard resistance:





* If the result is not as specified, replace the relay.

(c) Install the relay.

4. INSPECT NO. 3 FAN RELAY (FAN NO. 3)





(a) Remove the relay from the engine room relay block.

(b) Measure the resistance of the relay.

Standard resistance:





* If the result is not as specified, replace the relay.

(c) Install the relay.

5. INSTALL NO. 1 RELAY BLOCK COVER
