Removal

2AZ-FE FUEL: FUEL PRESSURE PULSATION DAMPER: REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE

Fuel System Precautions

2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Removal

4. DISCONNECT FUEL MAIN TUBE Removal

5. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

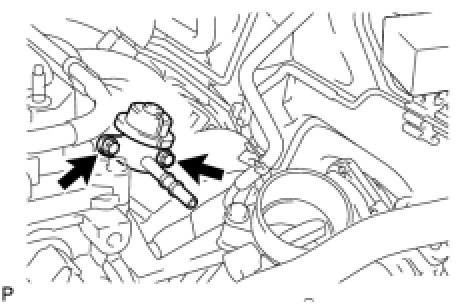

(a) Remove the 2 bolts and fuel pressure pulsation damper.
