Back-Up Light Circuit

LIGHTING: LIGHTING SYSTEM: Back-up Light Circuit
- Back-up Light Circuit

DESCRIPTION

for Automatic transaxle models: The park/neutral position switch turns on when the shift lever is moved into the R position, causing the back-up light to illuminate.

for Manual transaxle models: The back-up light switch turns on when the shift lever is moved into the R position, causing the back-up light to illuminate.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-IG NO. 2)





(a) Remove the ECU-IG NO. 2 fuse from the main body ECU.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reinstall the ECU-IG NO. 2 fuse.

NG -- REPLACE FUSE Locations
OK -- Continue to next step.

2. INSPECT BULB (BACK-UP LIGHT BULB)





(a) Remove the back-up light assembly.

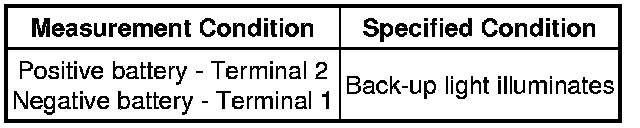

(b) Apply battery voltage to the terminals and check that the back-up light illuminates.

OK:





(c) Reinstall the rear combination light assembly.

NG -- REPLACE BULB Removal
OK -- Continue to next step.

3. CHECK TRANSAXLE TYPE

Result:





B -- INSPECT BACK-UP LIGHT SWITCH
A -- Continue to next step.

4. INSPECT PARK / NEUTRAL POSITION SWITCH





(a) Disconnect the B16 park / neutral position switch connector.

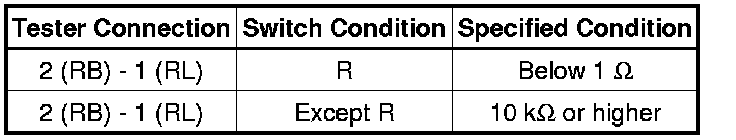

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reconnect the park / neutral position switch connector.

NG -- REPLACE PARK/NEUTRAL POSITION SWITCH Removal
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (ECU-IG NO. 2 FUSE - PARK/NEUTRAL POSITION SWITCH)





(a) Disconnect the C20 park / neutral position switch connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Disconnect the park / neutral position switch connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (PARK / NEUTRAL POSITION SWITCH - BACK-UP LIGHT ASSEMBLY)





(a) Disconnect the B16 park/neutral position switch connector.

(b) Disconnect the H7 back-up light assembly connector.

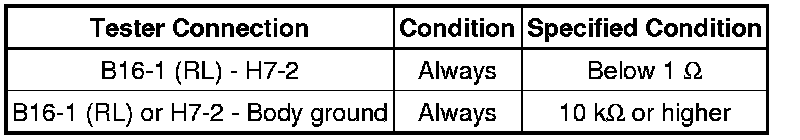

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(d) Disconnect the park / neutral position switch connector.

(e) Reconnect the back-up light assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BACK-UP LIGHT ASSEMBLY - BODY GROUND)

7. INSPECT BACK-UP LIGHT SWITCH





(a) Disconnect the B5 back-up light switch connector.

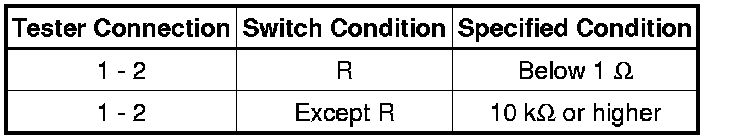

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Reconnect the back-up light switch connector.

NG -- REPLACE BACK-UP LIGHT SWITCH
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (ECU IG NO. 2 FUSE - BACK-UP LIGHT SWITCH)





(a) Disconnect the B5 back-up light switch connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Reconnect the back-up light switch connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

9. CHECK HARNESS AND CONNECTOR (BACK-UP LIGHT SWITCH - BACK-UP LIGHT ASSEMBLY)





(a) Disconnect the B5 back-up light switch connector.

(b) Disconnect the H7 back-up light assembly connector.

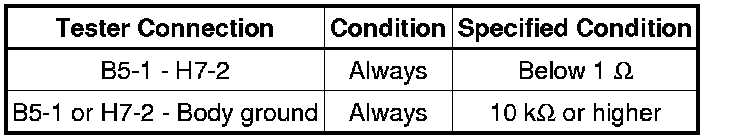

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(d) Reconnect the back-up light switch connector.

(e) Reconnect the back-up light assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BACK-UP LIGHT ASSEMBLY - BODY GROUND)
