Home
>>
Scion
>>
2010
>>
xB L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>

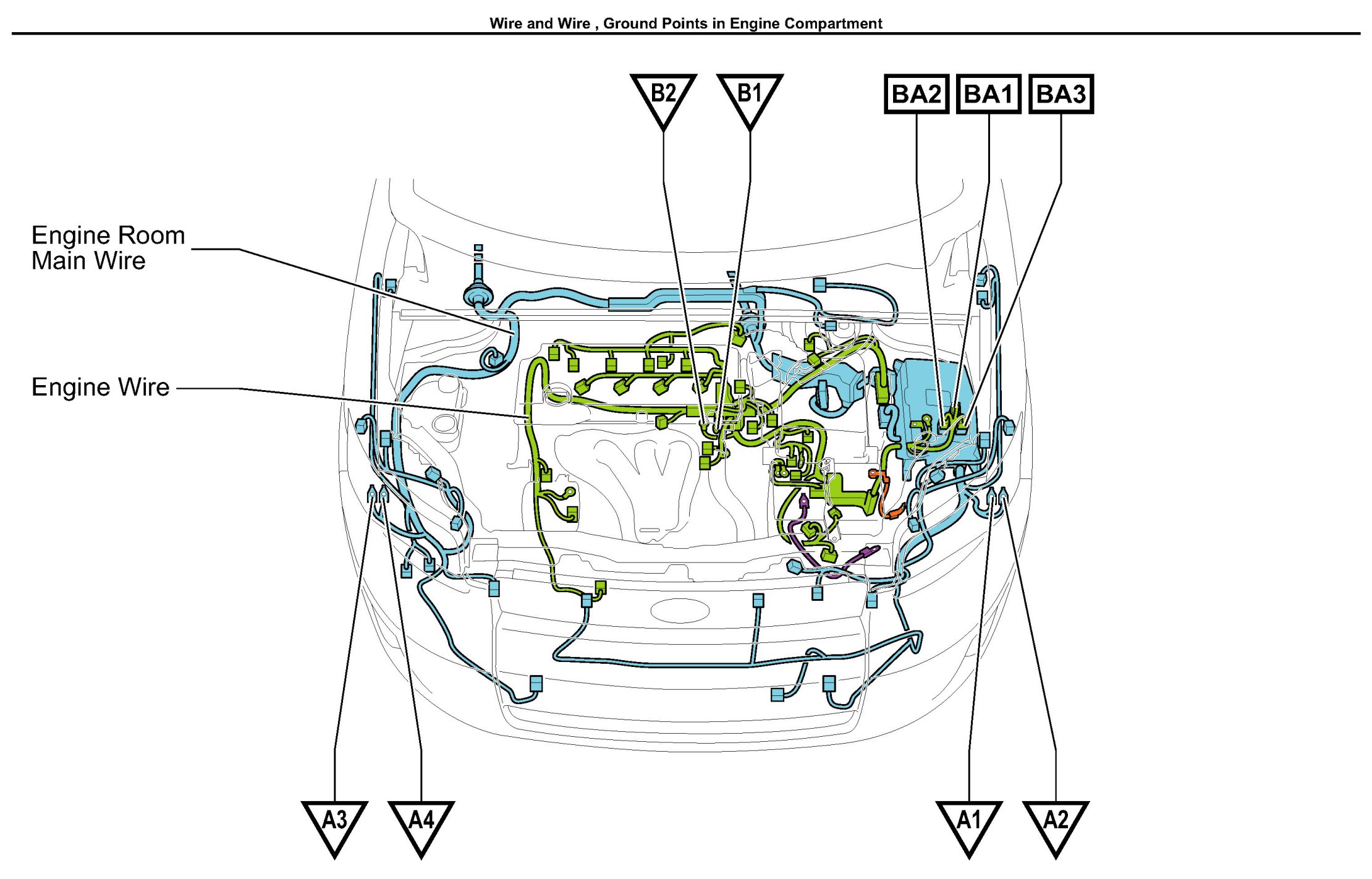

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment
A1-B2, BA1-BA3:
BA1-BA3:
