Fuse Block

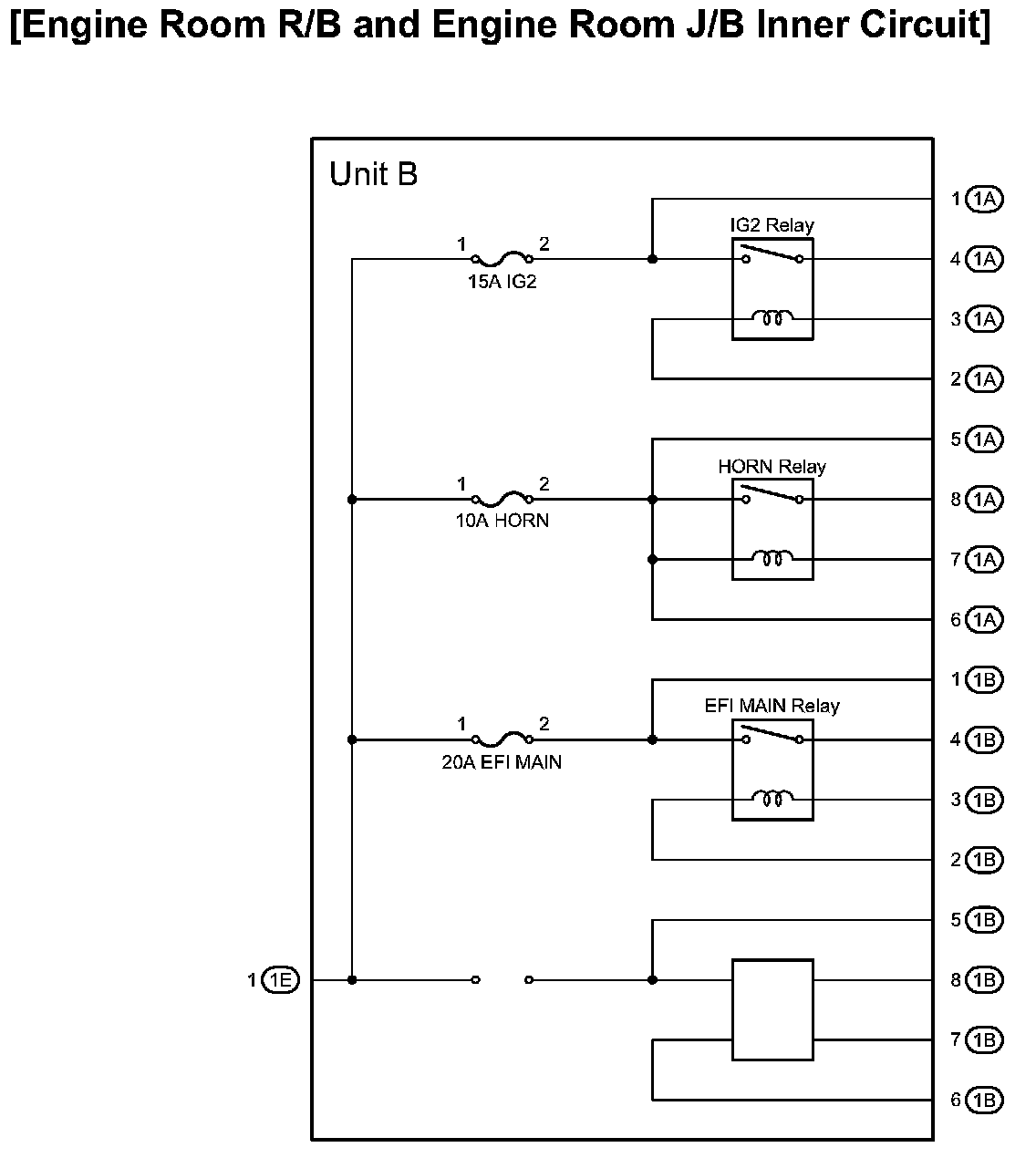

Engine Room R/B And Engine Room J/B Inner Circuit:

Engine Room R/B And Engine Room J/B Inner Circuit:

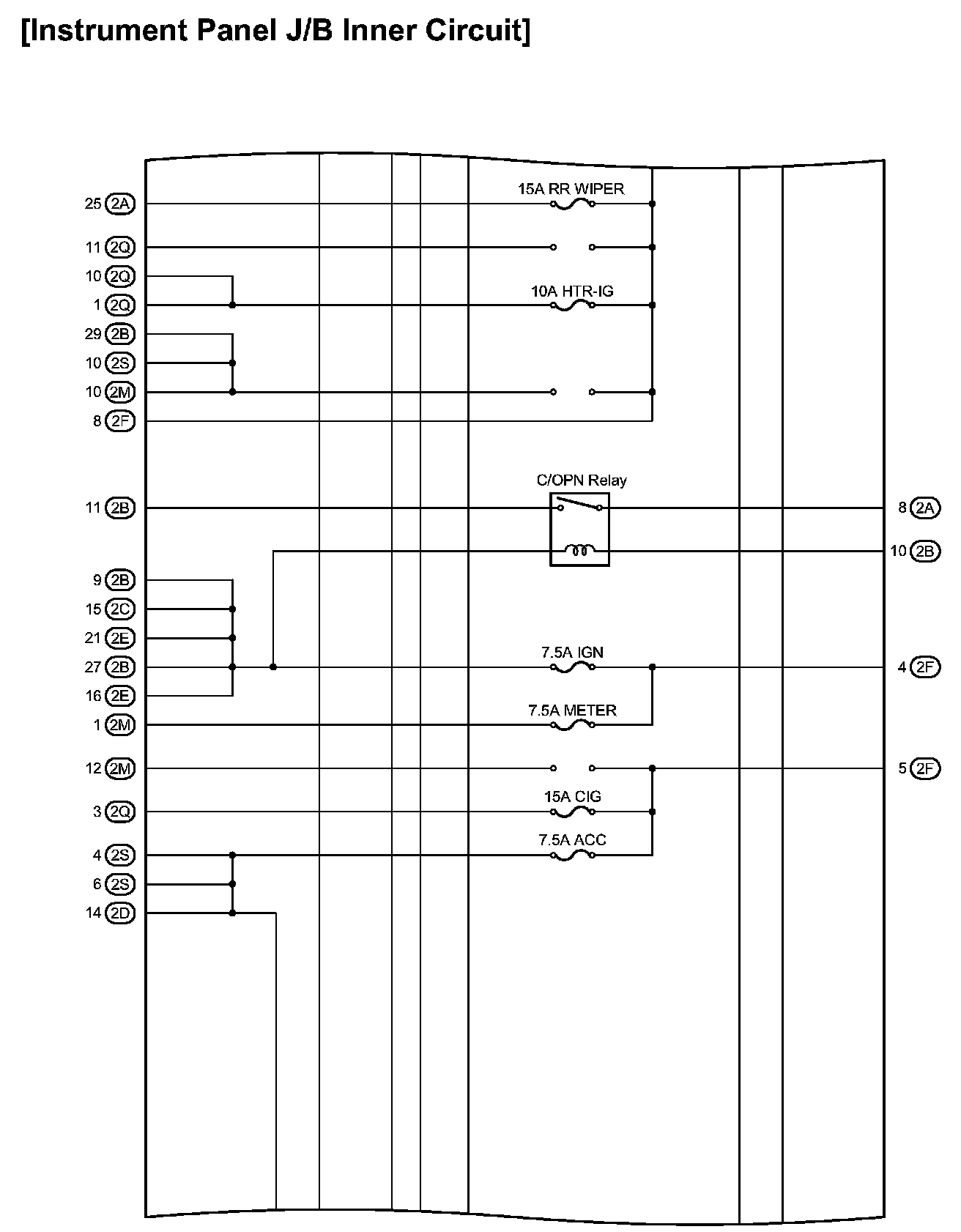

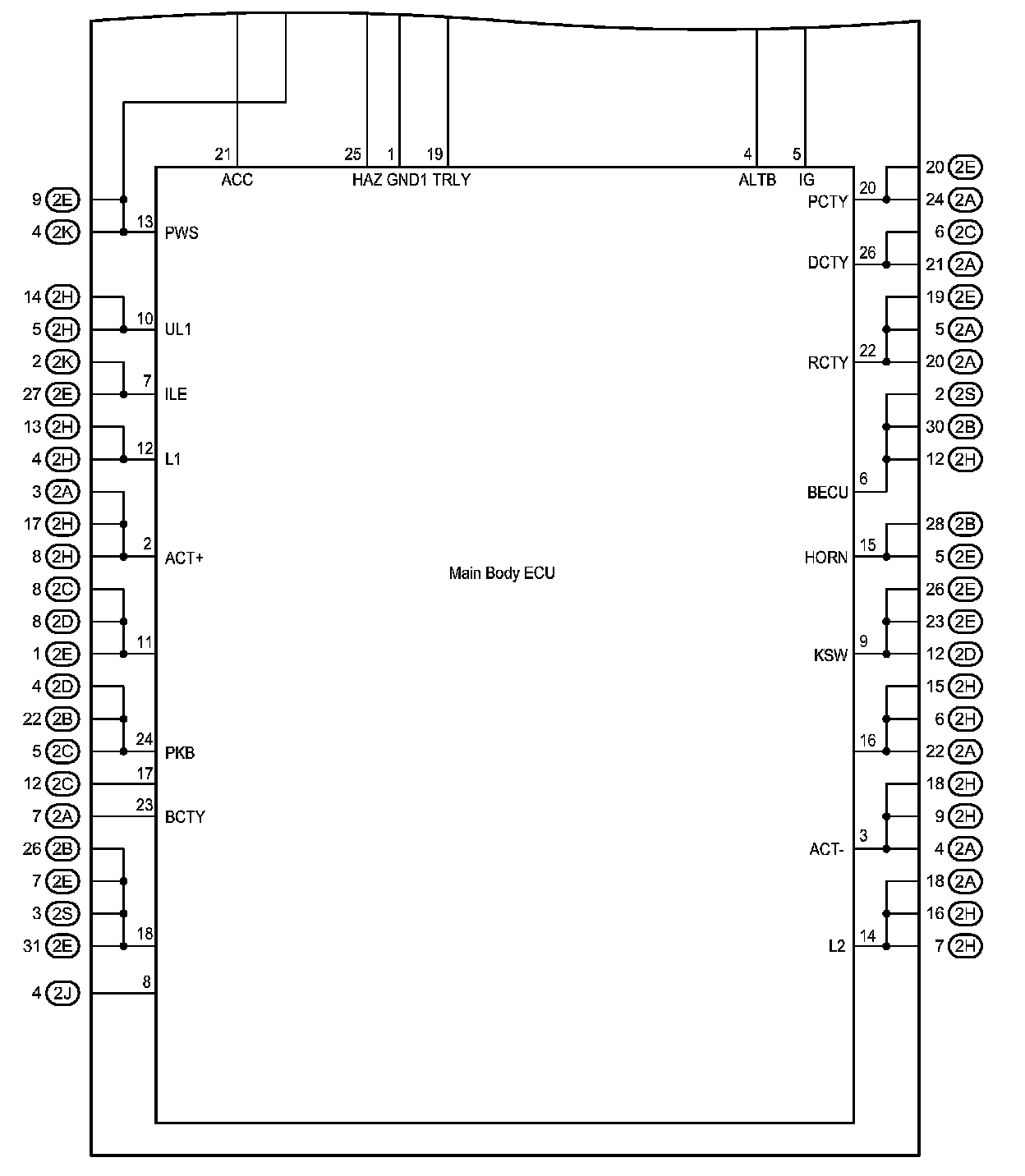

Instrument Panel J/B Inner Circuit:

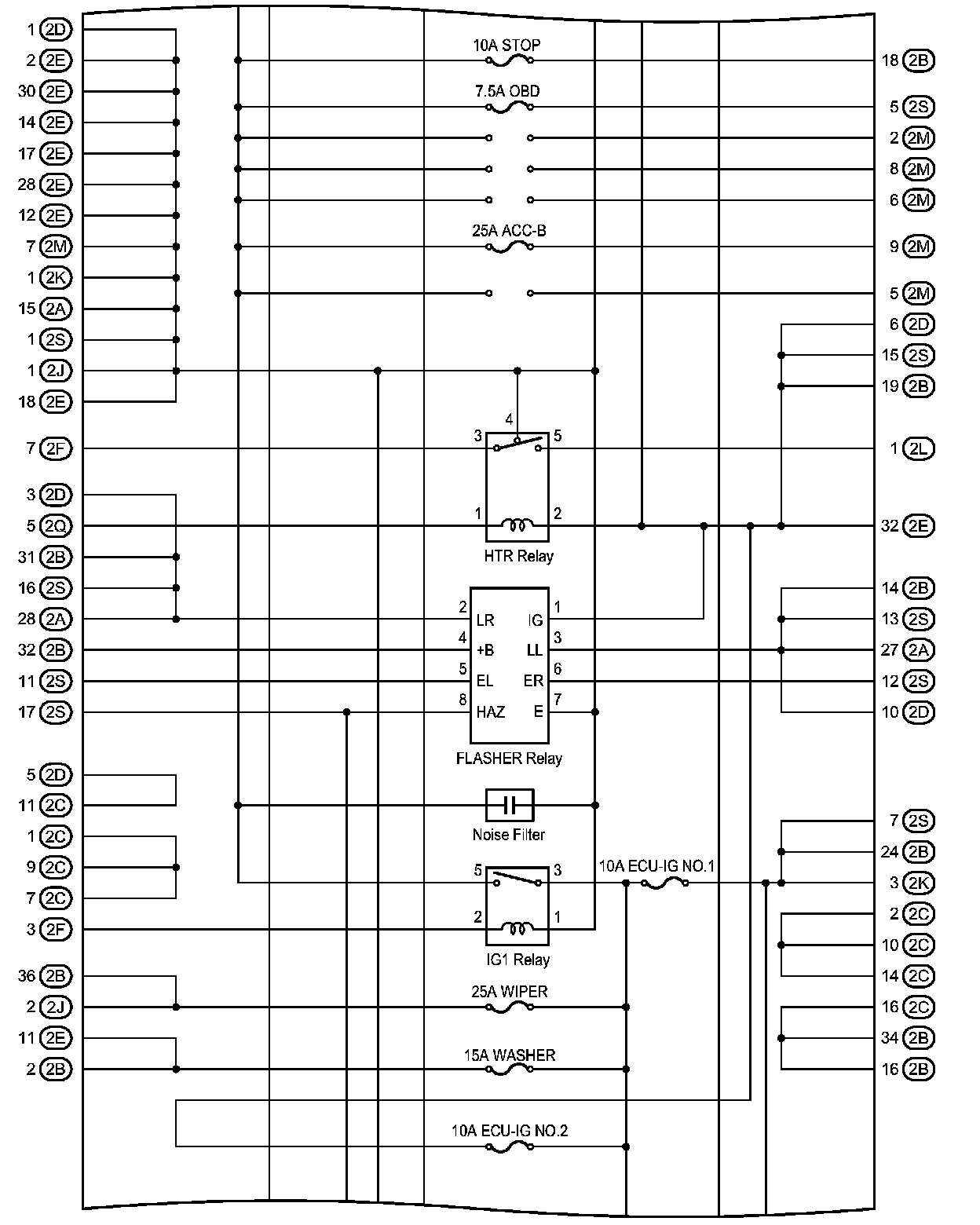

Instrument Panel J/B Inner Circuit:

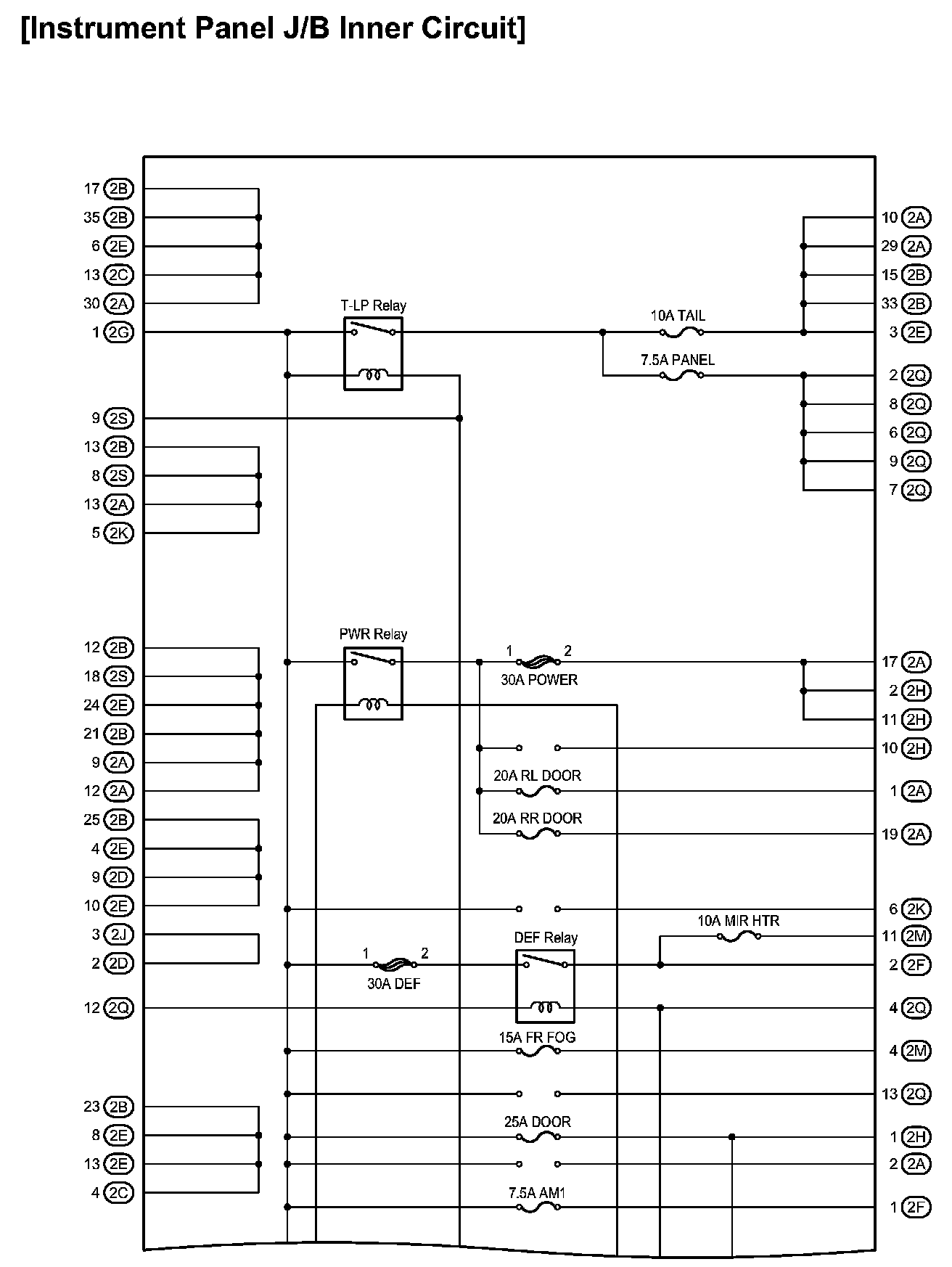

Instrument Panel J/B Inner Circuit:

Instrument Panel J/B Inner Circuit:

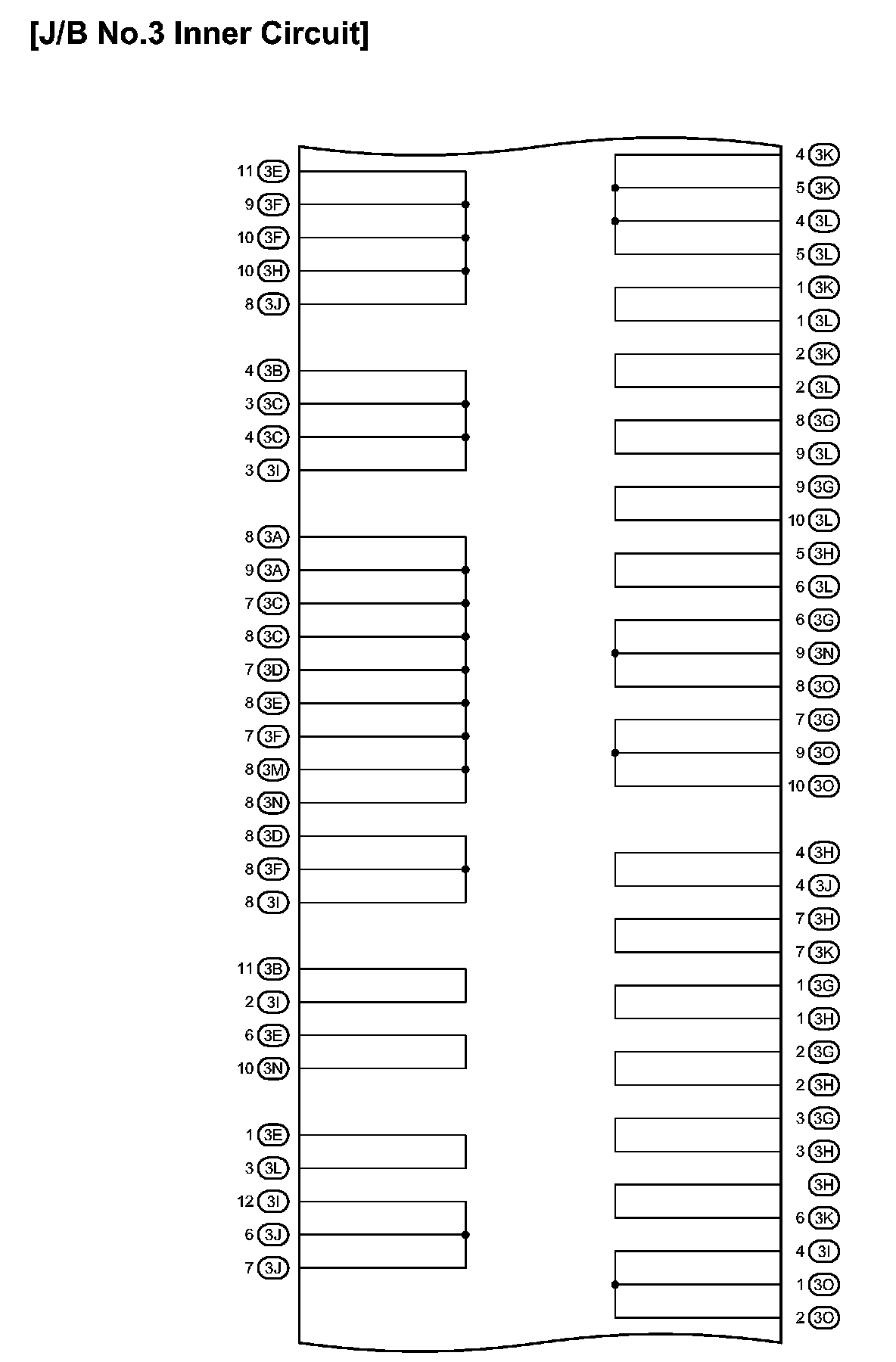

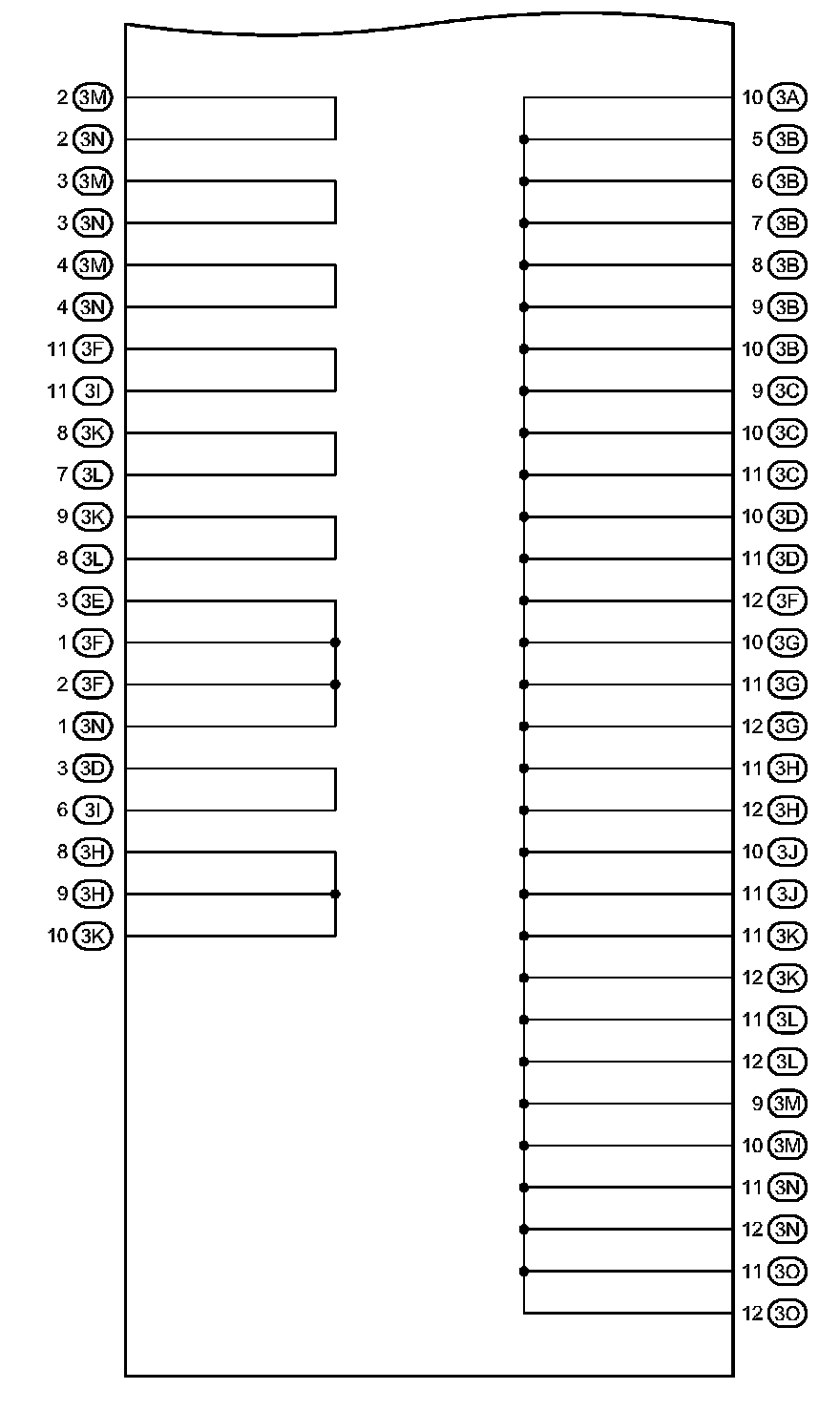

J/B No.3 Inner Circuit:

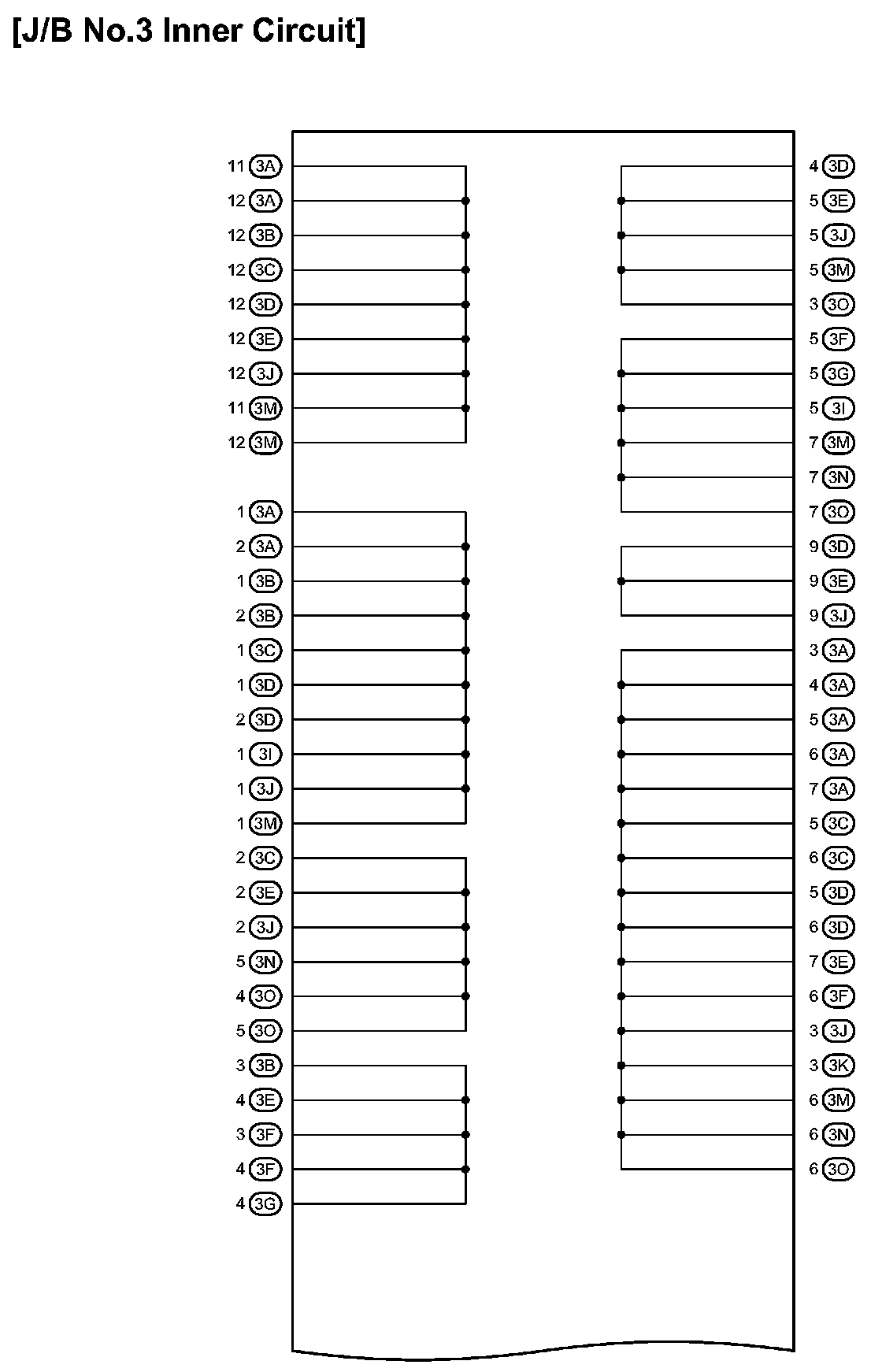

J/B No.3 Inner Circuit:

J/B No.3 Inner Circuit:

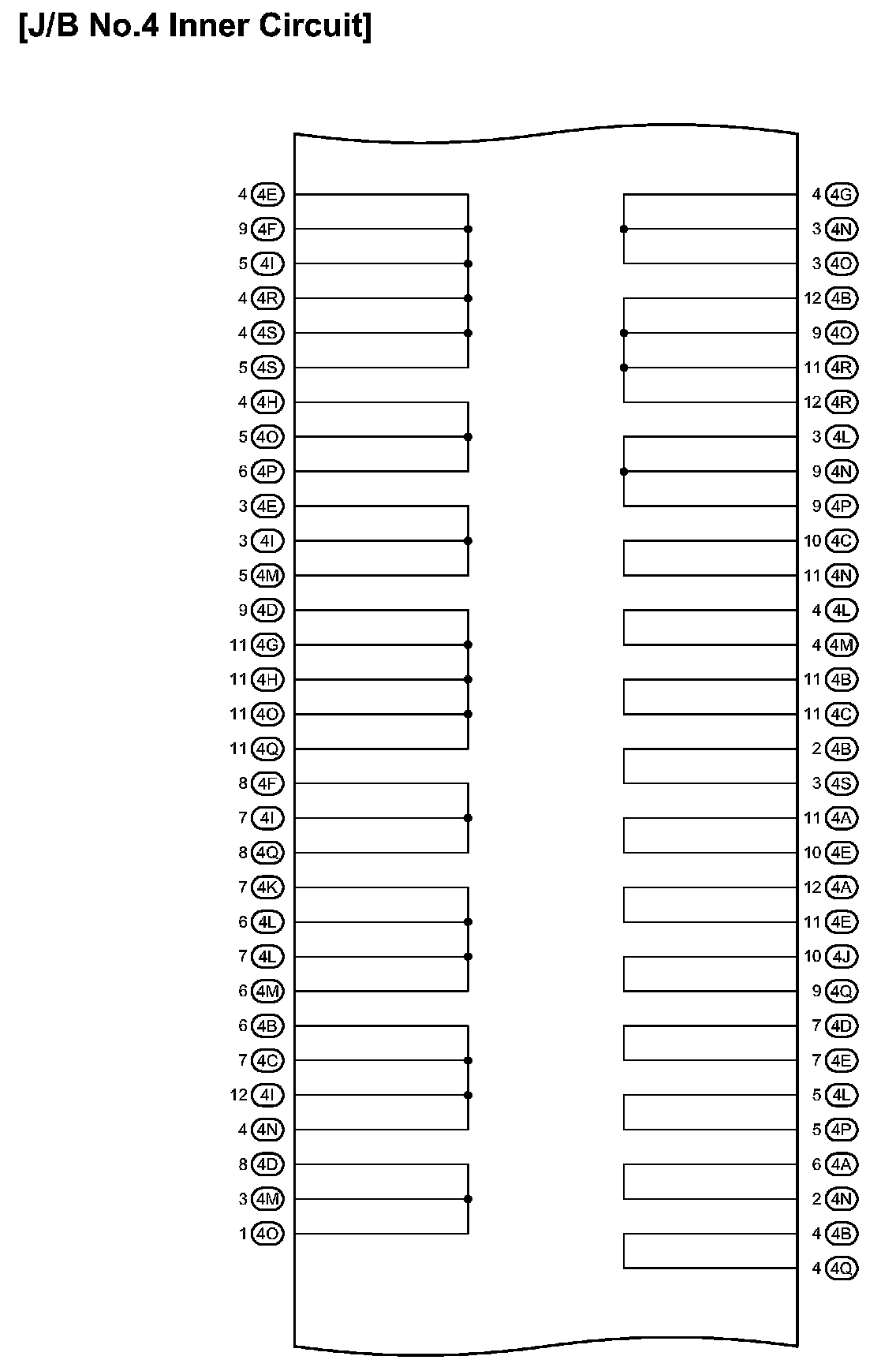

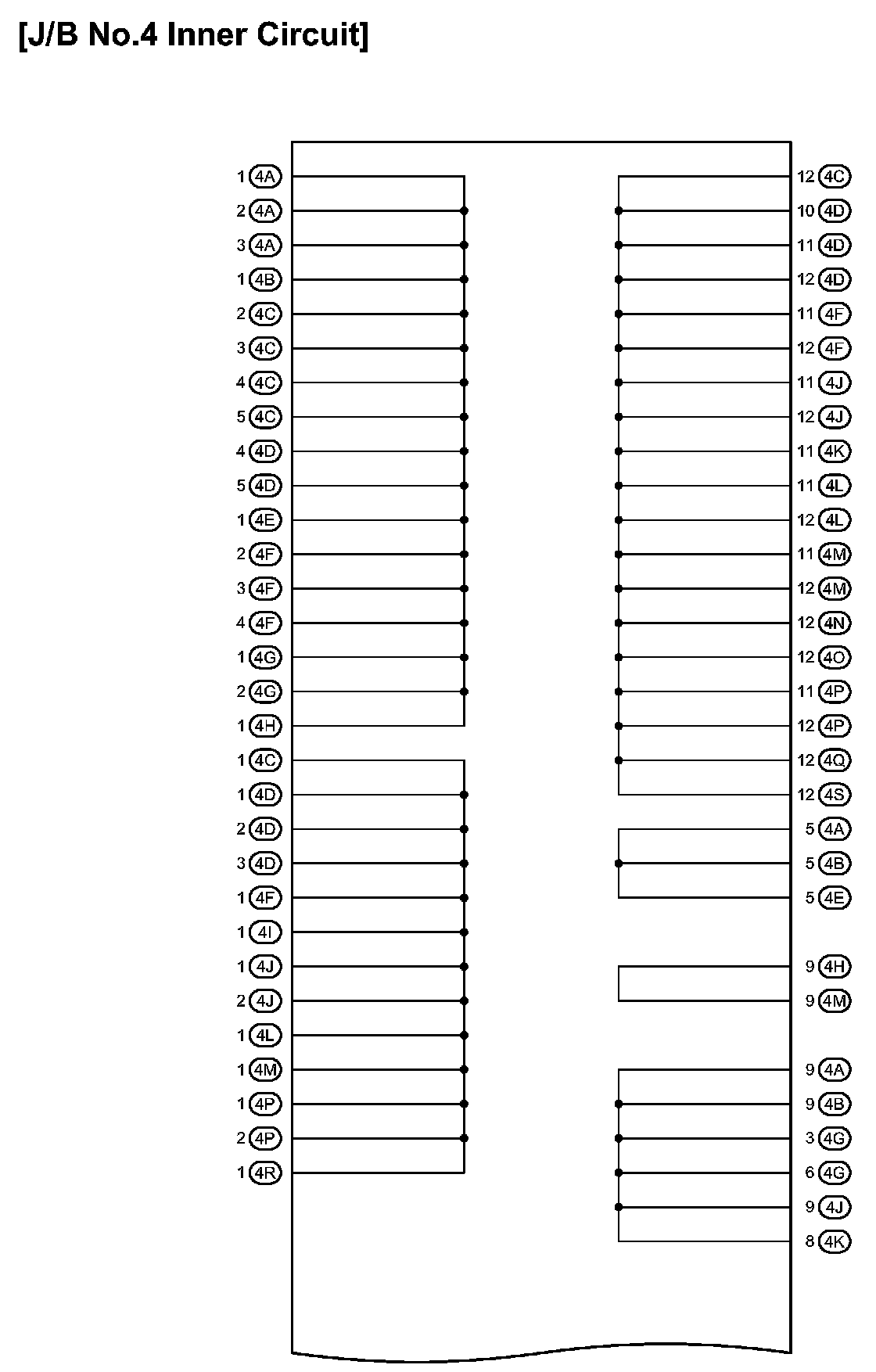

J/B No.4 Inner Circuit:

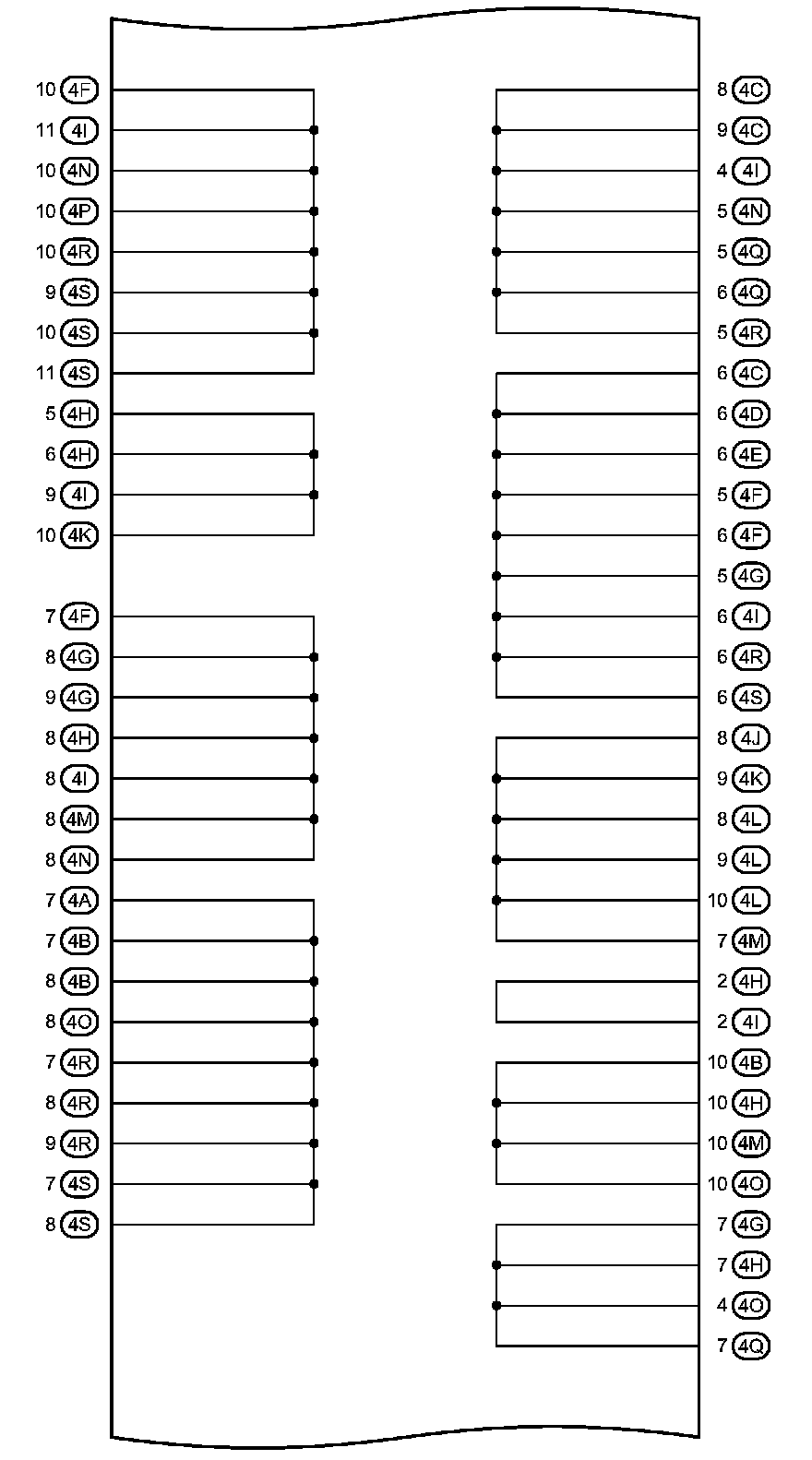

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:

J/B No.4 Inner Circuit:
