Trunk / Liftgate Switch: Testing and Inspection

ENGINE HOOD / DOOR: BACK DOOR OPENER SWITCH: INSPECTION

1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

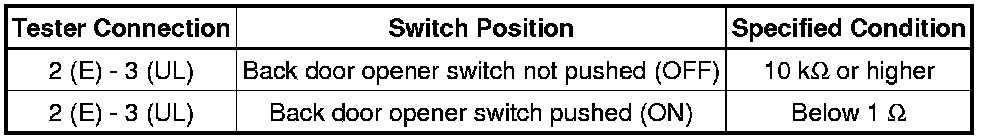

Standard resistance:





(b) If the result is not specified, replace the switch assembly.
