Disassembly

INTERIOR: FRONT CONSOLE BOX: DISASSEMBLY

1. REMOVE CONSOLE BOX PLATE





(a) Disengage the 2 clamps.

(b) Disengage the 4 claws and 2 guides and remove the console box plate.





2. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY





(a) Remove the 2 screws and remove the console compartment door.

3. REMOVE NO. 1 CONSOLE COMPARTMENT DOOR STOPPER





(a) Disengage the claw and remove the console compartment door stopper.

4. REMOVE NO. 2 CONSOLE COMPARTMENT DOOR STOPPER

(a) Disengage the claw and remove the console compartment door stopper.

5. REMOVE CONSOLE COMPARTMENT DOOR CUSHION





(a) Remove the 2 console compartment door cushions.

6. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY





(a) Remove the 2 screws and remove the console compartment door lock.

7. REMOVE INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY

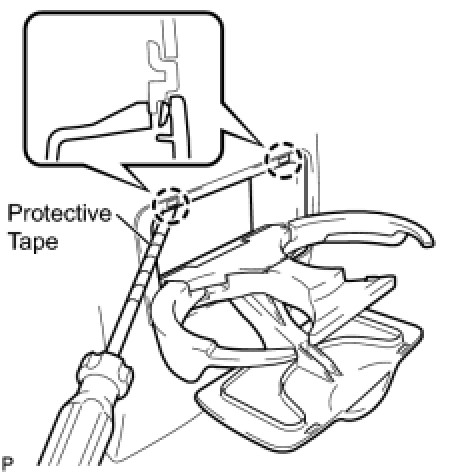

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the instrument panel cup holder.

8. REMOVE CONSOLE REAR END PANEL





(a) Remove the 2 screws.

(b) Disengage the 10 claws and 3 guides and remove the console rear end panel.
