Installation
EXTERIOR: NAME PLATE: INSTALLATION
1. INSTALL NO. 2 BACK DOOR NAME PLATE
(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.
HINT
Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
(2) Using a shop rag or piece of cloth, rub the double-sided adhesive tape off the back door panel while it is hot from the infrared light.
NOTICE:
Installing the No. 2 back door name plate while any double-sided tape remains on the back door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.
(3) Using a non-residue solvent, clean the attachment surface.
(b) Install a new No. 2 back door name plate as shown in the illustration.

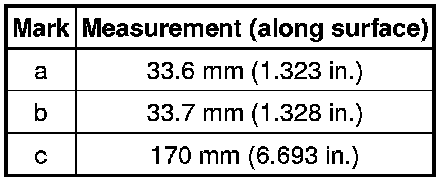

Installation position:
NOTICE:
Install the No. 2 back door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the back door panel and the No. 2 back door name plate up to 20 to 30°C (68 to 86°F) and install the No. 2 back door name plate.
2. INSTALL SYMBOL EMBLEM
(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided adhesive tape remaining on the back door panel.
HINT
Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
(2) Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the back door panel while it is hot from the infrared light.
NOTICE:
Installing the symbol emblem with any double-sided tape remaining on the back door panel may cause adhesion failure. Therefore, completely remove the double-sided tape.
(3) Using a non-residue solvent, clean the attachment surface.
(b) Insert the 2 bosses into the back door panel and install the symbol emblem.
NOTICE:
Install the symbol emblem in an environment where the ambient temperature is over 20 °C (68°F). If it is below 20°C (68°F), using an infrared light, heat the back door panel and the symbol emblem up to 20 to 30°C (68 to 86°F) and install the symbol emblem.
