Removal

AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: REMOVAL

1. REMOVE CONSOLE BOX PLATE





(a) Disengage the 4 claws and 2 guides and remove the console box plate.

(b) Disconnect the 2 connectors.

2. REMOVE STEREO JACK ADAPTER ASSEMBLY

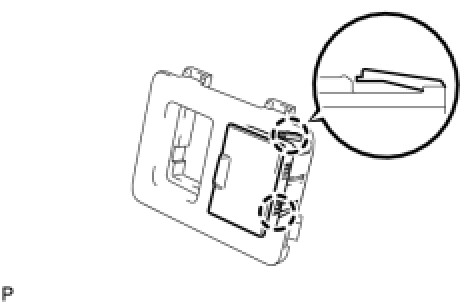

(a) Disengage the 2 claws and remove the stereo jack adapter assembly (AUX).

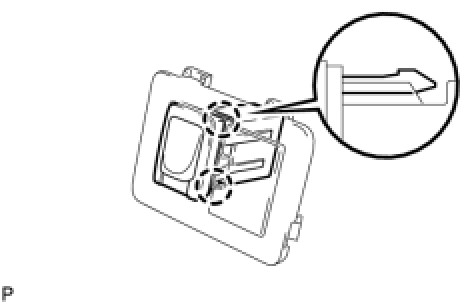

(b) Disengage the 2 claws and remove the stereo jack adapter assembly (iPod).
