Removal

AUDIO / VISUAL: AMPLIFIER ANTENNA: REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE ROOF HEADLINING

(a) Remove the roof headlining Removal.

3. REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY Removal

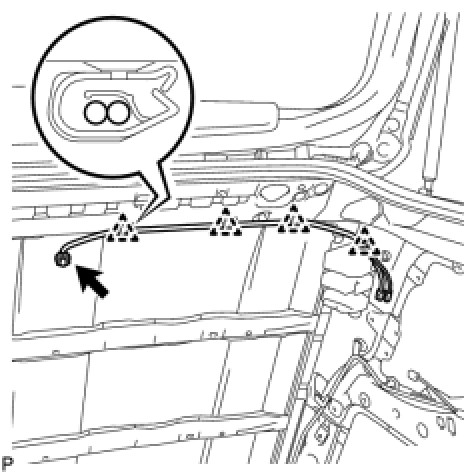

4. REMOVE AMPLIFIER ANTENNA ASSEMBLY





(a) Remove the antenna wire from the 4 clamps.

(b) Remove the nut.

(c) Disengage the 2 claws and remove the amplifier antenna.
