A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Tire Pressure Warning System
Tire Pressure Warning System
TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.

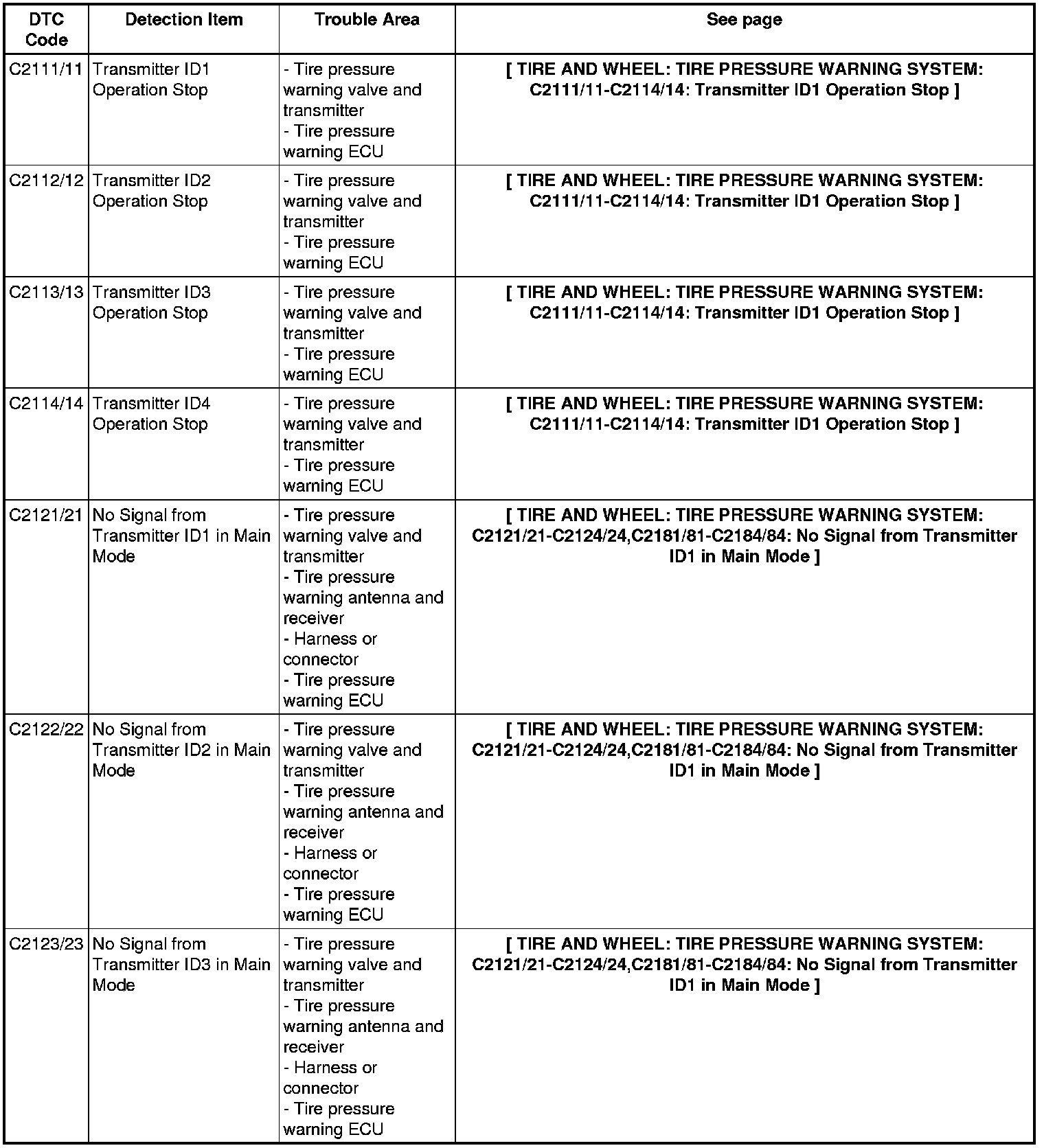

C2111/11-C2123/23:

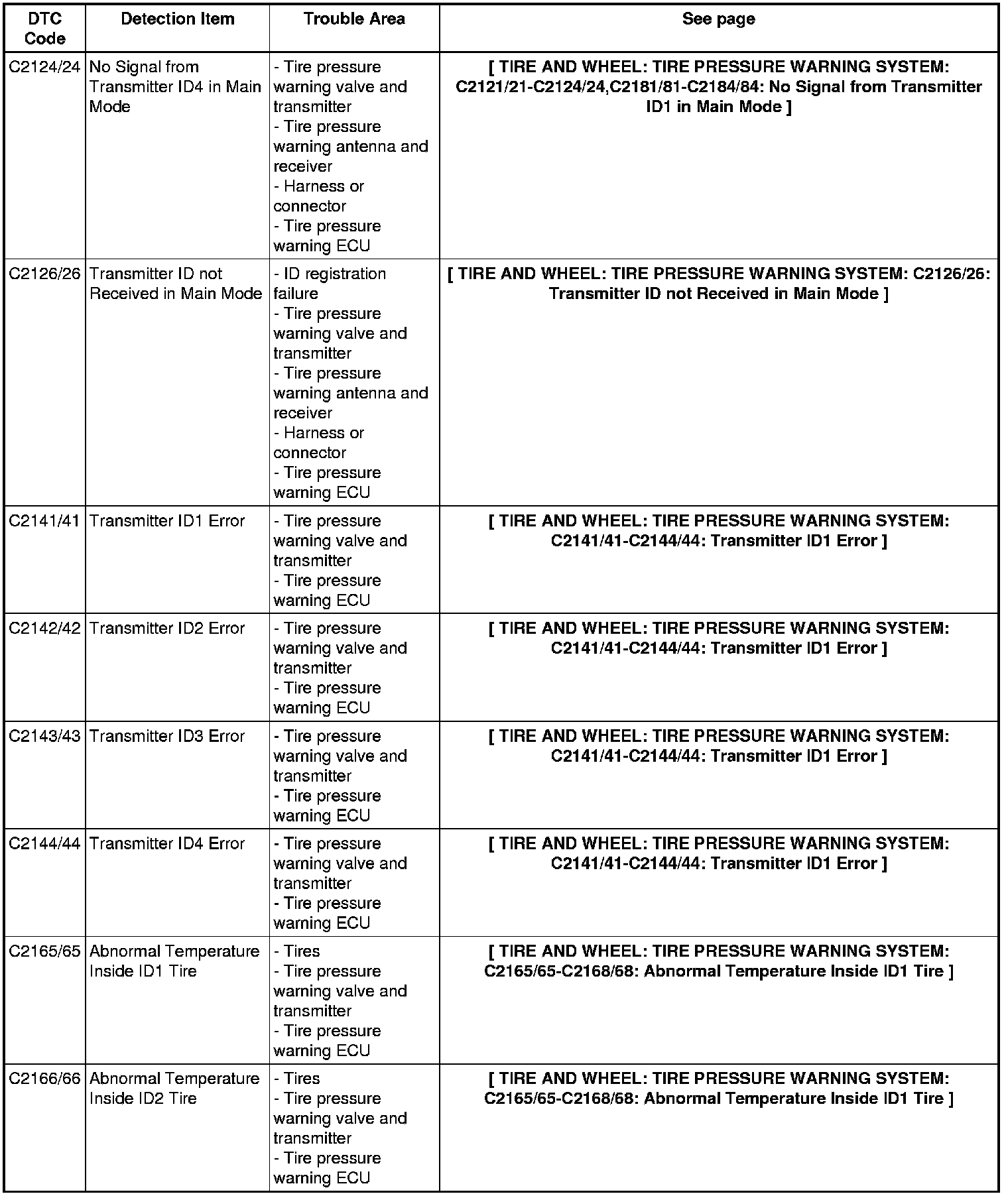

C2124/24-C2166/66:

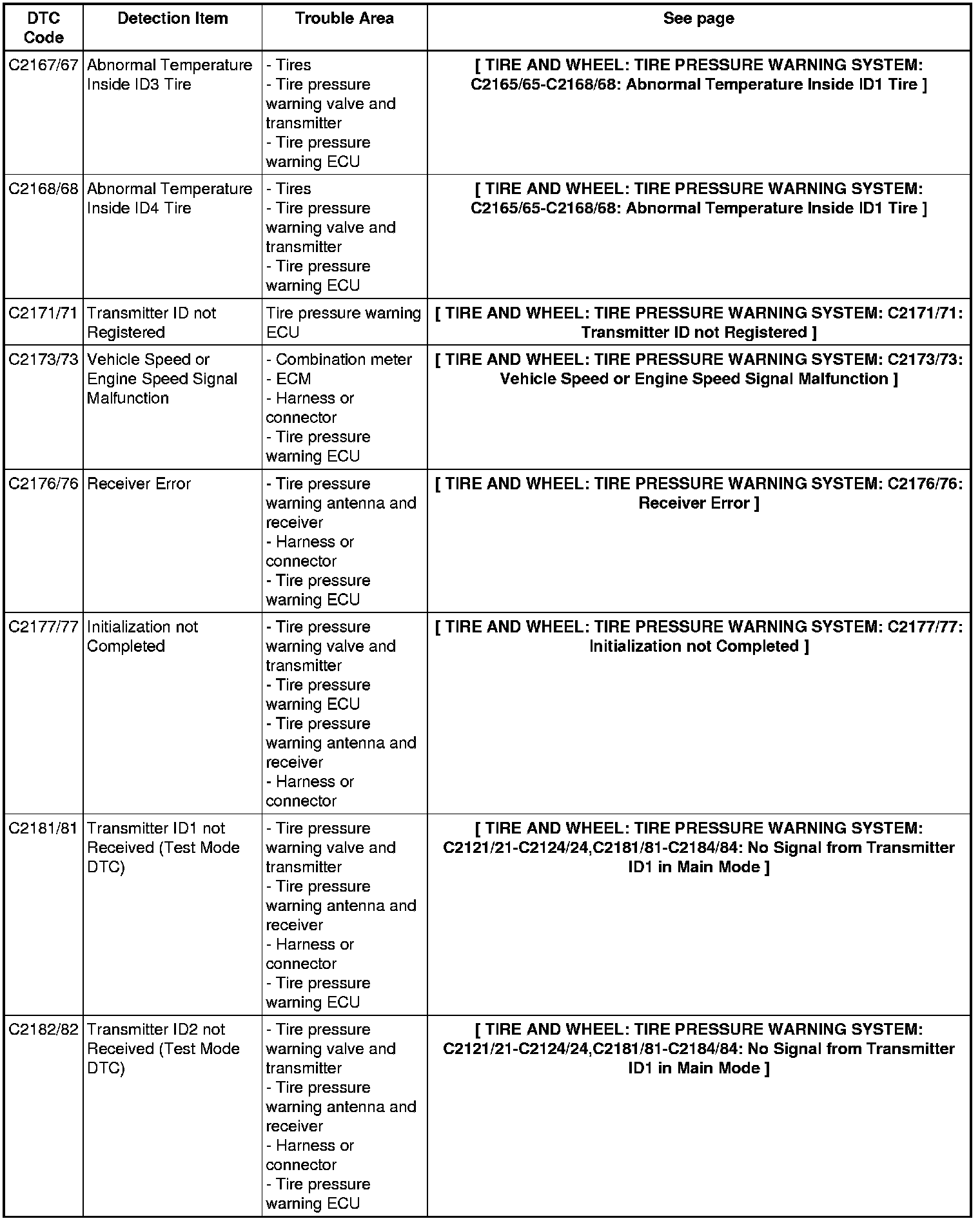

C2167/67-C2182/82:

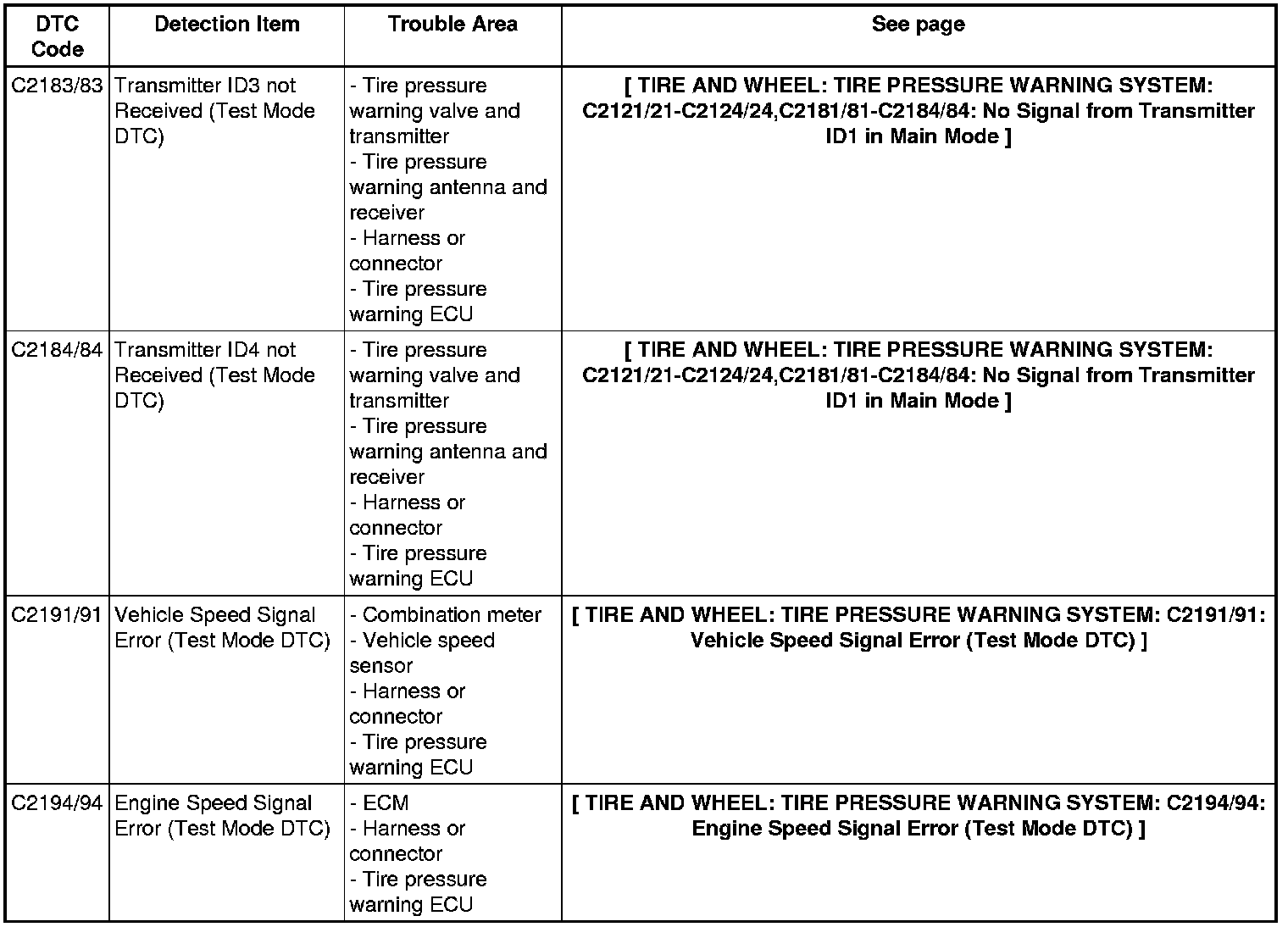

C2183/83-C2194/94:
