Removal

CLUTCH: CLUTCH RELEASE CYLINDER: REMOVAL

1. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE





(a) Using SST, disconnect the flexible hose tube.

SST : 09023-00101

NOTICE:

Use a container to catch the fluid.

2. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

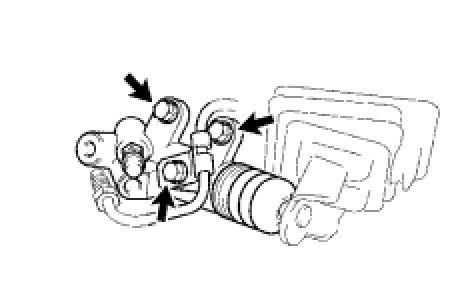

(a) Remove the 3 bolts and clutch release cylinder.
